EL518ICA 5 Inch Sloped Ceiling IC Airtight New Construction Housing
User Manual

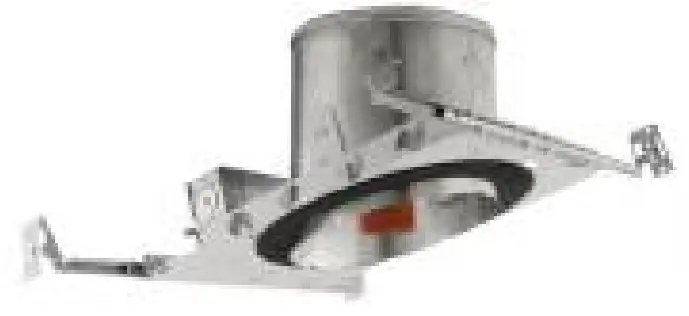

EL518ICA 5 Inch Sloped Ceiling IC Airtight New Construction Housing

ELCO Slant allows for installation in sloped ceilings ranging from 2/12 (10°) to 6/12 (26.5°). Can be used in insulated ceilings. Fits in 2″ x 8″ joist construction.

Features

• Airtight Slope IC New Construction Housing.
• Single-wall aluminum construction for use in insulated ceilings.
• Designed for use in 2/12 to 6/12 sloped ceilings.
• Thermal Protector guards against improper lamping.
• Lamps: Medium Base Incandescent, CFL, or LED.
• UL is Listed for damp location and for feed through.

Specifications

Technical Details

Construction:

• IC Rated for Direct Contact with Insulation.
• Designed for use in 2/12 to 6/12 sloped ceilings.
• Housing adjusts in the frame to accommodate up to 1 1/4” ceiling thickness.
• Aluminum housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2×8 joists or taller ones are used. High-strength hanger bars can easily be nailed to joists. A template for hole cutout is provided with each housing. Suitable for T-grid and drop ceiling applications. See the installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade-size conduit knockouts and four pry-out knockout slots for easy Romex installation.
Hanger Bars: Pre-installed hanger bars with True Nail are easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up to 24″ and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Electrical:

• Rated for 120V or 277V input.
• For 277V step down to 120V housing consult factory.

Trims: Compatible with ELCO 5″ Line Voltage Slope PAR trims.
Lamp: Designed for use with Medium Base (E26) PAR lamps up to 75W.
Listings:

• UL is Listed for a Damp Location.
• UL is Listed for Direct Contact with Insulation and Combustible Material.
• UL is Listed for Feed Through.
• AirTight: Per ASTM E-283.

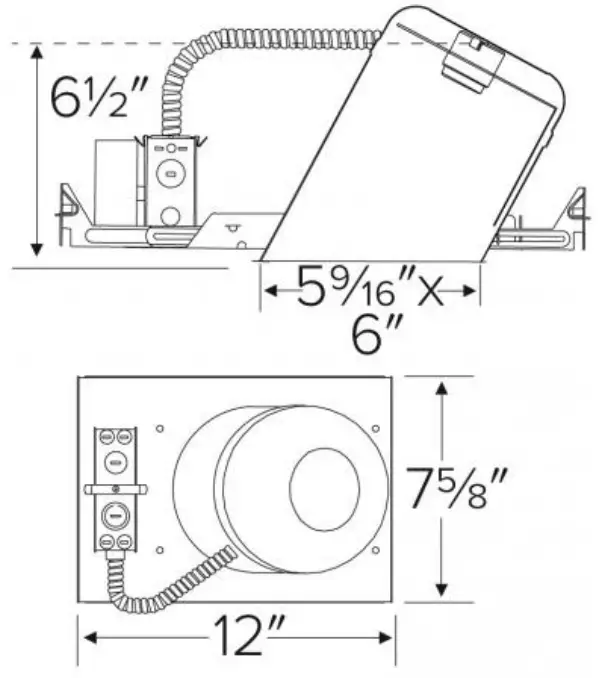

Dimensions

Product Number

Project name:………………
Fixture type:……………………..
Date:………………………………………….
2042 E. Vernon Ave., Vernon, CA 90058
Tel (323) 231-2600
Fax (323) 231-3200
elcolighting.com
© ELCO Lighting 2022. All rights reserved
Rev. 25 Aug 2021
ELCO Lighting reserves the right to make specification and design changes without notice.
