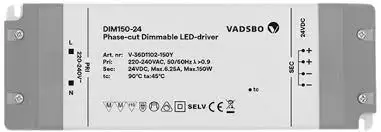

VADSBO DIM150-24 Dimmable LED Driver
Installation
Warning! High voltage. Risk of electric shock. The installation should only be carried out by an authorised electrician
Technical data
- Art. number V-36D1102-150Y
- Input voltage 220V-240V
- Input frequency 50Hz
- Input current <1A
- Input power <166W
- Stand-by power 3.2W
- Efficiency ≥90%
- Maximum in-rush current 73A (900µs)
- Inrush current <75A
- Power factor ≥0.9
- Output voltage and precision 24V±5% <25V
- Output current range 2-6.25A 48-150W
- Dimming mode Leading edge/ Trailing edge dimming
- Dimming range 10%-100%
- Output voltage wave <500mV Vp-p
- Operation temp -20-45°C
- Relative humidity 45%-85%
- Max case temp 90°C
- Lifetime 30 000Hr
- Working noise <35dB
- Size 195×67.1×31.2mm
- Case material Plastic
- Insulation class Class II
- IP grade IP20
- Input cables dimension 2×1.0mm2
- Output cables dimension 2×1.0mm2x2
- Certifications IEC61347-1, IEC61347-2-13 (with lamps IEC60598) IEC61000-3-2, IEC55015, IEC61547

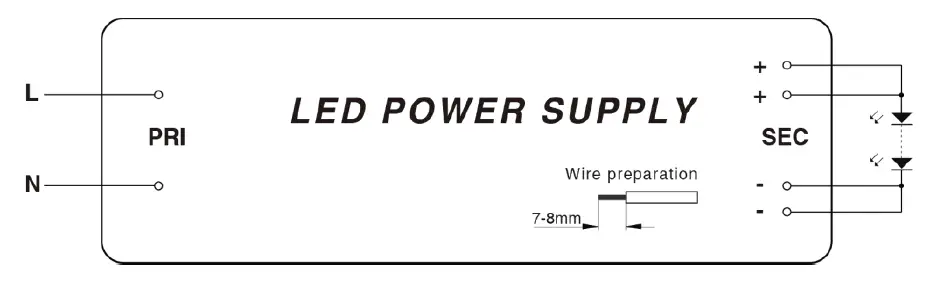

Wiring diagram

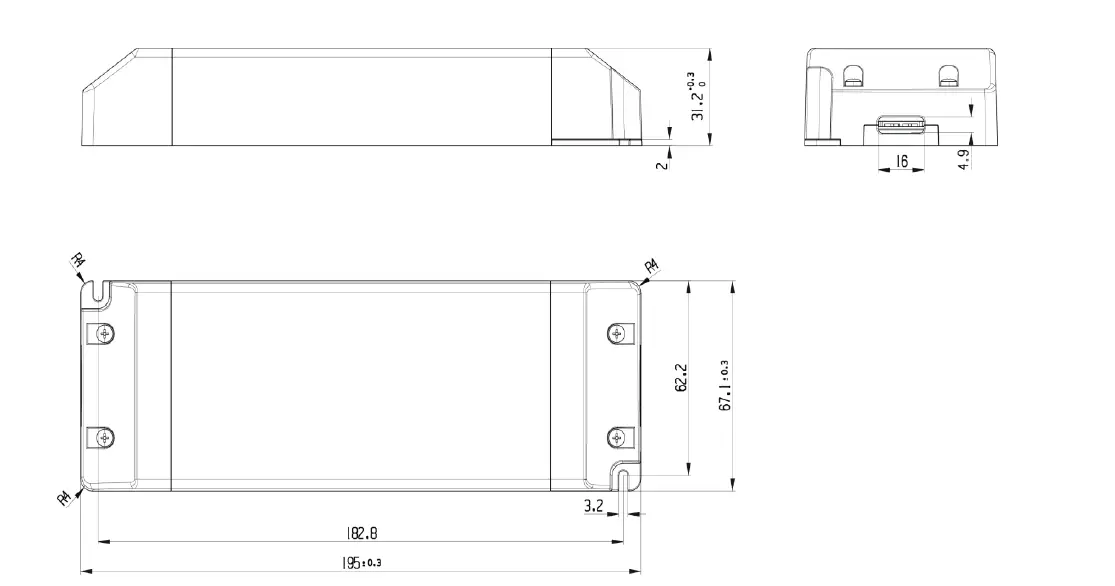

Dimensions
