VADSBO VD100 LED Dimmer

Installation instructions VD100

Warning!
High voltage. Risk of electric shock. The installation should only be carried out by an authorised electrician.

Connection
For LED 0-100W, 230V halogen and electronic transformers. Do not use the LED-dimmer for fluorescent lamps, fans or toroidal cores.

1. Stop the current.
2. Connect the phase to one of the terminal boxes marked with L1 or L2 on the dimmer.
3. Connect the conductor that continues to the load of the terminal box on the dimmer marked with (see the connection drawing).
4. The earthed neutral should be directly connected to the load. If it is broken in the equipment, box, connect with clamp or another connection.

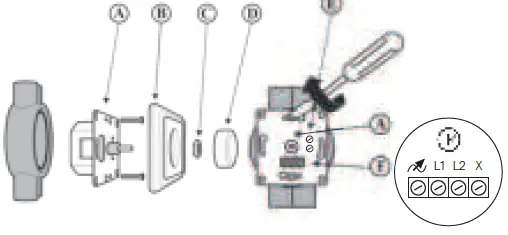

5. Install the dimmer (A) in the equipment box. Make sure that no cables are clamped.
6. If required, adjust the minimum level with the help of the lower regulator in position (E). In case of flickers, adjust exactly with the upper regulator.
7. Screw the casing (B) tight with the enclosed nut (C ).
8. Press the knob (D) securely with a single press.

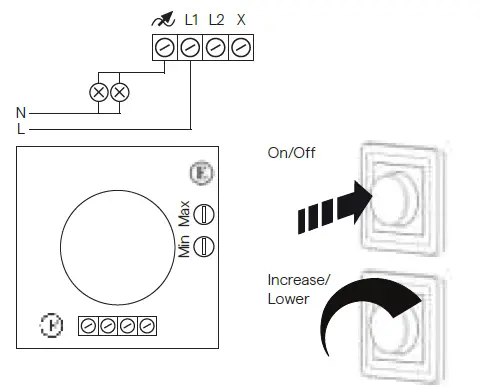

Connection drawing

Technical data

• Item number:  White: V-4010020TRL
• Voltage: Black: V-40V0100-002Y
• Max current strength: 230V +/- 10% 50Hz
• Least load: 0,45A
• Max load: 0VA
• Casing class: 100W
• Size: IP20

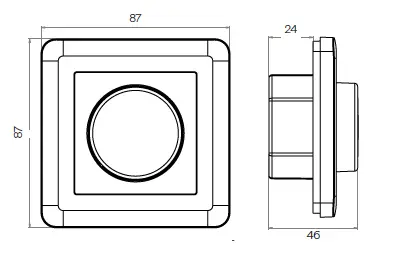

• Mounting depth: 87x87x46mm
• Weight: 24mm 90g
• Colors:
  • Black: Graphite Grey (RAL7024)
  • Jet Black (RAL9005)
  • White: Pure White (RAL9010)
  • Signal White (RAL9003)
• Short-circuit protection:Yes, self-resetting
• Overload protection: Yes, self-resetting
• Thermal protection: Yes, self-resetting
• Max Ta: 75oc
• Operating temperature:20oc till +40oc
• Power consumption without load: <0,3W

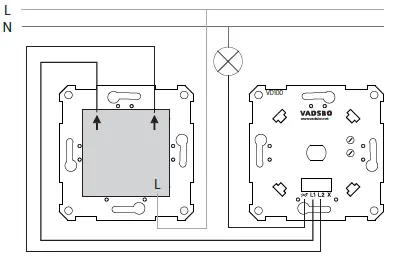

Staircase feature

Follow the instructions for “connection” but replace the points 2 and 3 with points 1, 2 and 3 below.

1. Connect the phase to the terminal box marked with “L” on the two-way current switch.
2. Connect the the outgoing phases (arrow out, arrow out) from the two-way switch to the entry of the dimmer (L1 arrow in, L2 arrow in).
3. Connect the conductor that connects to the load at the terminal box marked with on the dimmer.

Dimmer adjustment

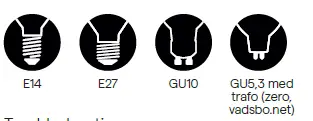

Exact adjustment of the least dimmer level for the most common loads.
Procedure: Dim the load to minimum light. Turn the potentiometer clockwise with a screwdriver to set the lowest dimmer level. Stop when you reach a satisfactory level, i.e. when there is no flickering

Adjustment of maximum dimming level/flicker
when the load is dimmed to a maximum level, for loads that need additional adjustment. Is used for loads, where there is flickering in the maximum dimmed position. Is also used for exact adjustment of the maximum dimmer level.

Procedure: Dim the load to maximum light. In case of flickering, turn the potentiometer clockwise with a screwdriver so as to reduce the amount of flickering. Stop when you reach a satisfactory level, i.e. when there is no flickering.
When adjusting exactly, turn the potentiometer clockwise with a screwdriver and stop just before the light begins to dim. Stop when you are satisfied.

Troubleshooting

NOTE! Keep in mind that depending on the manufacturer, LED and low energy sources may consume up to the double rated output.

Installationsmanual Version 1 2022-09-26
