Halcyon Drddacc 16-25w Dali Dimming Led Driver Instruction Manual (+ PDF)

Model No	DRDDACC l 6-25W
Input Voltage	220-240VA.C
Input Frequency	50/60Hz
Input Current (Full load)	0.16A
Standby power	~0.5W
Power Factor (Full load)	~0.95
Output	2260mA,20-60V,5.2-l 5.6W 350mA,20-60V ,7-20W 400mA,20-60V,8-24W 450mA,20-55V, 9-25W 500mA,20-50V, 10-25W 550mA,20-45V, l l-25W 600mA,20-40V, l 2-25W 700mA,20-36 V, l 4-25W
Maximum Output Power	25W
Control input	DALI; Switch-Control
Operating Ambient Temperature	-’20 …+ 50 C
Case Temperature at tc Point	80(:
Dimensions(LxWxH)	1 I 9x52x’22.Smm

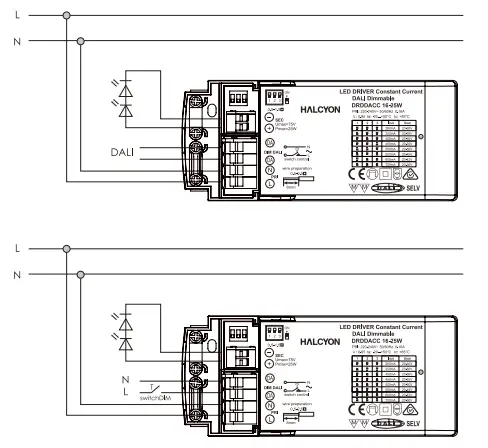

Wiring:

Dimensions( mm):

Dip Switch Settings:

DRDDACC 16-25W

1	2	3	lout	Uout
			260mA	20-60V
			350mA	20-60V
			400mA	20-60V
			450mA	20-55V
			500mA	20-50V
			550mA	20-45V
			600mA	20-42V
			700mA	20-36V

-Factory default setting 260mA

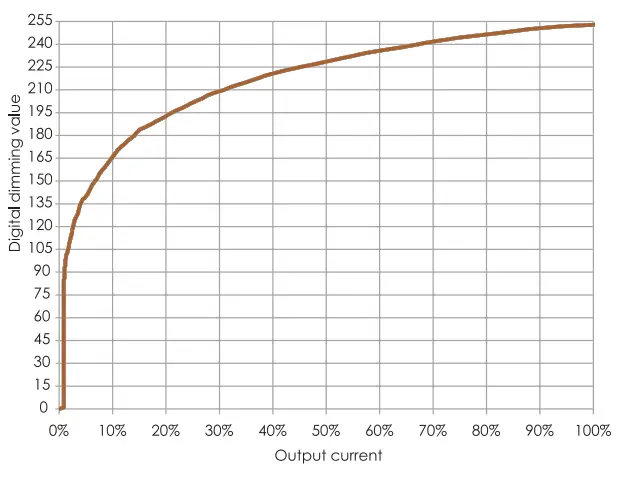

Dimming Characteristics

Functions:

DALI:
In this operating mode the light level of the device is controlled via its DALI address.

Switch-control:
Alternatively the device can be controlled using switch-inputs for mains voltage, The dimm level is saved at power-down and restored at power-up.

Short press (<lS): switches LED driver ON and OFF.
Long press: LED modules are dimmed. After repush the LED modules are dimmed in the opposite direction.
In installations with LED drivers with different dimming levels or opposite dimming directions, all LED drivers can be synchronized to 50% dimming level by a 15S push, switch off the light by short press one time, then long press.

Notice:

The compatibility with other devices must be tested in advance to the installation.
DALI application and switch-control application can not apply to the system at the same time
