HALCYON
Non-Dimmable LED Driver Installation Instructions
Model: DRMACC350 4W / DRMACC500 4W / DRMACC700 4W DRMACC350 12W
DRMACC500 12W / DRMACC700 12W
Product Features
- Super compact design
- Driver for built-in use
- Universal AC input
- Primary and secondary sides come with leads
- Protections: opencircuit, shortcircuit, overload, overtemperature
- Simple installation
- SELV class II outpu
- IP65 design
Important Notes
- This Control Gear is suitable for operation with Constant Current LED Modules.
- Ensure min/max wattage of LED Driver is adhered to, in relation to LED Module used.
- Secondary Terminals are polarity conscious eg: positive or negative.
- Do not install LED Module to live Driver.
- Do not switch Secondary feed.
- Drivers must be installed above insulation.
- Drivers must be installed by a qualified electrician.
Technical Specifications
| Model No. | Input Voltage ( V ) | Min and Max Output ( W ) | Output Current (mA) | Output Voltage (V) | Power Factor(A) | Ta( °C ) | Tc( °C ) | Dimensions LxWxH( mm ) | Weight ( g ) | Wiring Diagram |
| DRMACC350 4W | 100-240V-50/60Hz | 1-4 | 350 | 3-12V DC | 0.40C | -20…+50 | 80 | 38x27x21 | 40 | A |
| DRMACC500 4W | 100-240V-50/60Hz | 1-4 | 500 | 2-8V DC | 0.40C | -20…+50 | 80 | 38x27x21 | 40 | A |
| DRMACC700 4W | 100-240V-50/60Hz | 1-4 | 700 | 2-6V DC | 0.40C | -20…+50 | 80 | 38x27x21 | 40 | A |
| DRMACC350 12W | 100-240V-50/60Hz | 4-12 | 350 | 11-34V DC | 0.95 | -20…+50 | 80 | 50x48x24 | 80 | A |
| DRMACC500 12W | 100-240V-50/60Hz | 4-12 | 500 | 8-24V DC | 0.95 | -20…+50 | 80 | 50x48x24 | 80 | A |
| DRMACC700 12W | 100-240V-50/60Hz | 4-12 | 700 | 6-17V DC | 0.95 | -20…+50 | 80 | 50x48x24 | 80 | A |

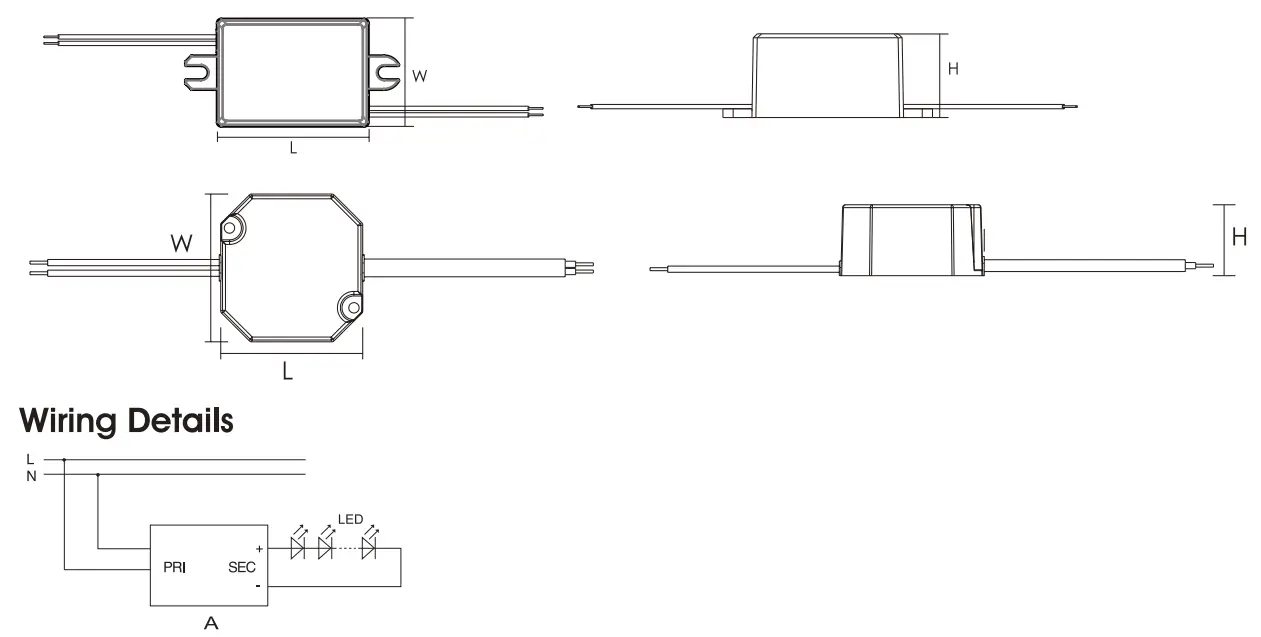

Dimensions(mm)
EN 61347-1 EN 61347-2-13 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547
