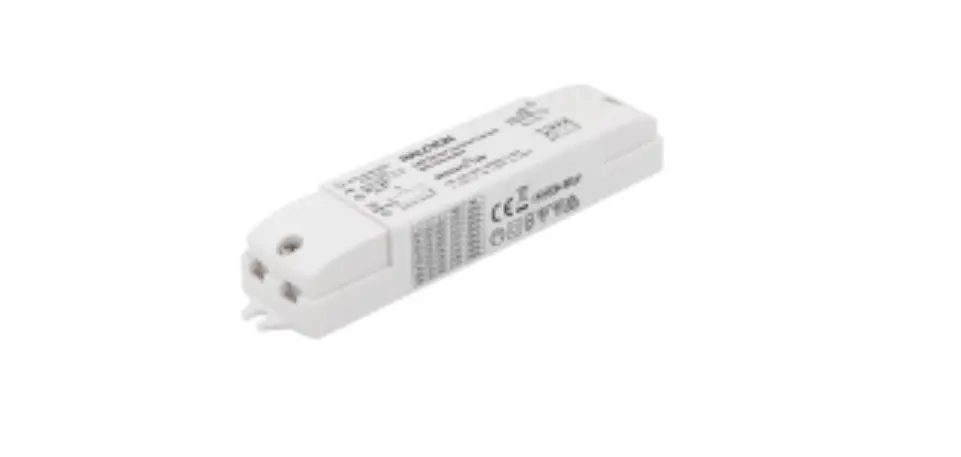

DD1050 45WPK Dali Dimming LED Driver
Instruction Manual
Features:
– DALI-2 certified LED driver
– Dimmable with DALI signal
– Independent compact design
– Configurable constant current output via dip-switch
– Swifch-Dim function
– Dimming range 1…100%
– Analogue flicker-free dimming
– Open circuit, short circuit, over load protection
– Suitable for use in emergency lighting systems
– Protection class
Specifications ,Characteristics:
-Techfrical data
| Model No | DDI050 45wPK | DDI 4C0 75WPK |
| Input Voltage | 220-240VAC | |
| Input Frequency | 50/60Hz | |
| Input Current (Full load) | 026A | 0.45A |
| Mccdmum Input Power | 45w | 75W |
| Standby power | ≤0.5w | |
| Power Factor (Full load) | ≥ 0.95 | |
| Output | 1050mA, 14-43V, 45W 1150mA. 14-39V.45W 120OmA. 14-38V.45W 1300mA. I 4-35V.45W 1400mA, i 4-32V,45W 1500mk 14-30V,45W 1600mA, 14-28V,45W | 1050mA,25-7 1 V,75W 1150mA,25-65V.75W 1200mA25-62V.75W 1300mA25-58V,75W 14COmA,25-53v,75W 1500mA,25-50V,75W 1600mA,23-47V,75W |
| Control Input MU; Switch-Control | ||
| Operating Ambient Temperature | -20 …* 50C | -20..± 40C |
| Case Temperature at tc Point | 80C | 85C |
| Dimensions(LxWxH) | 13547204mm | 159z.79430mm |

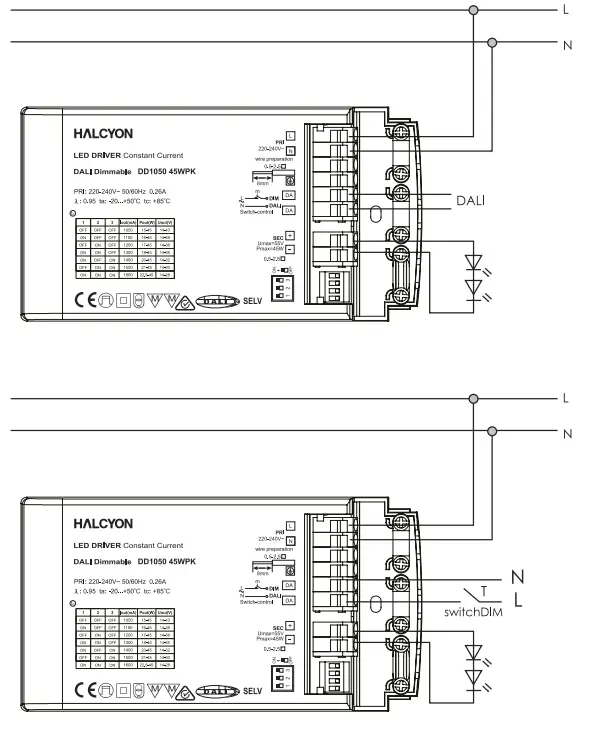

Wiring

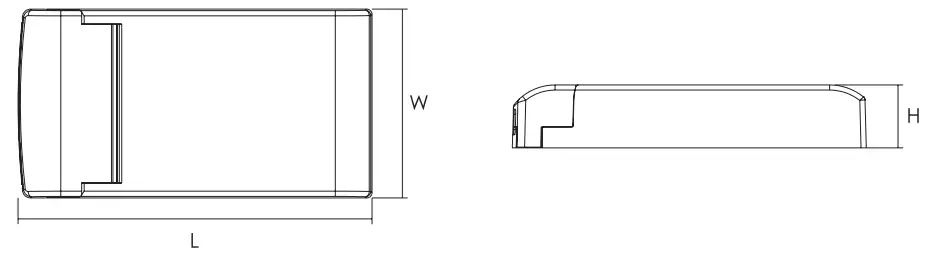

Dimensions(mm)
Dip Switch Settings:
DD1050 45WPK
| 1 | 2 | 3 | lout(mA) | Pout(W) | Uout(V) |
| OFF | OFF | OFF | 1050 | 15-45 | 14-43 |
| ON | OFF | OFF | 1150 | 16-45 | 14-39 |
| OFF | ON | OFF | 1200 | 17-45 | 14-38 |
| ON | ON | OFF | 1300 | 18-45 | 14-35 |
| ON | OFF | ON | 1400 | 20-45 | 14-32 |
| OFF | ON | ON | 1500 | 21-45 | 14-30 |
| ON | ON | ON | 1600 | 22.5-45 | 14-28 |
-Factory default setting 1050mA
DD1400 75WPK
| 1 | 2 | 3 | Iout(mA) | Pout(W) | Uout(V) |
| OFF | OFF | OFF | 1050 | 26-75 | 25-71 |
| ON | OFF | OFF | 1150 | 29-75 | 25-65 |
| OFF | ON | OFF | 1200 | 30-75 | 25-62 |
| ON | ON | OFF | 1300 | 32.5-75 | 25-58 |
| ON | OFF | ON | 1400 | 35-75 | 25-53 |
| OFF | ON | ON | 1500 | 37.5-75 | 25-50 |
| ON | ON | ON | 1600 | 37-75 | 23-47 |

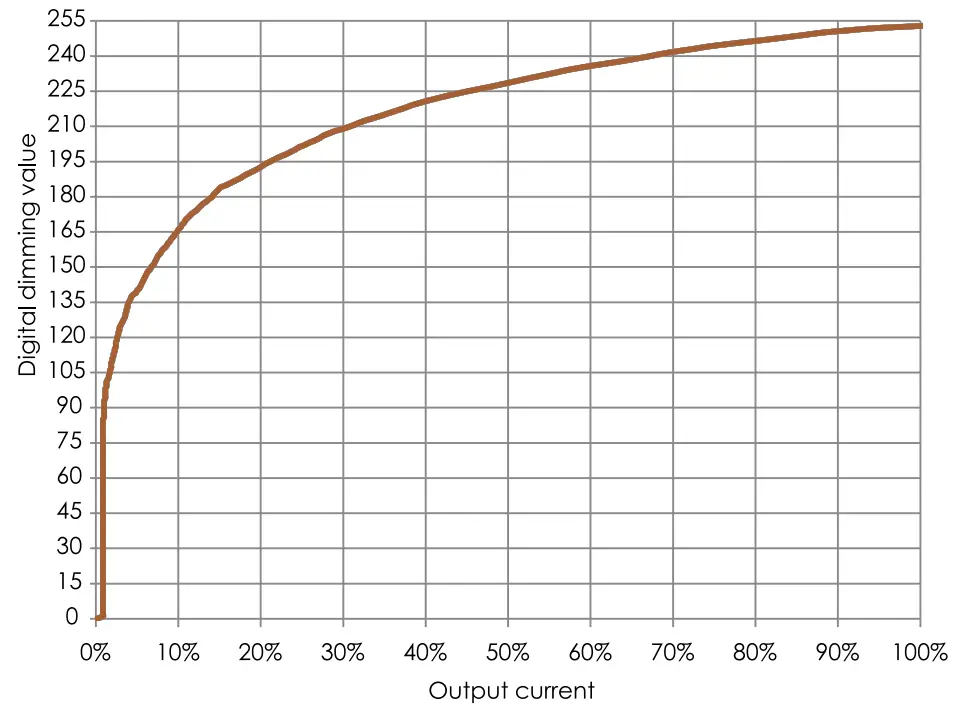

Dimming Characteristics:
Functions:
DALI: In this operating mode the light level of the device is controlled via its DALI address.
Switch-control: Alternatively the device can be controlled using switch-inputs for mains voltage, The dimm level is saved at power-down and restored at power-up.
– Short press (<15): switches LED driver ON and OFF.
– Long press: LED modules are dimmed. After repush the LED modules are dimmed in the opposite direction.
– In installations with LED drivers with different dimming levels or opposite dimming directions, all LED drivers can be synchronized to 50% dimming level by a 15S push, switch off the light by short press one time, then long press.
Notice:
– The compatibility with other devices must be tested in advance to the installation.
– DALI application and switch-control application can not apply to the system at the some time
