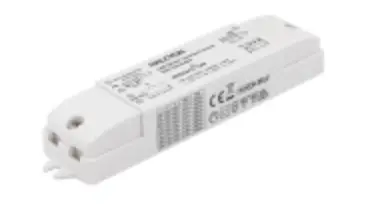

HALCYON DD1400 75WPK Dali Dimming LED River
Features
- DALl-2 certified LED driver
- Dimmable with DALI signal
- Independent compact design
- Configurable constant current output via dip-switch
- Switch-Dim function
- Dimming range l … 100%
- Analogue flicker-free dimming
- Open circuit, short circuit, over load protection
- Suitable for use in emergency lighting systems
- Protection class II

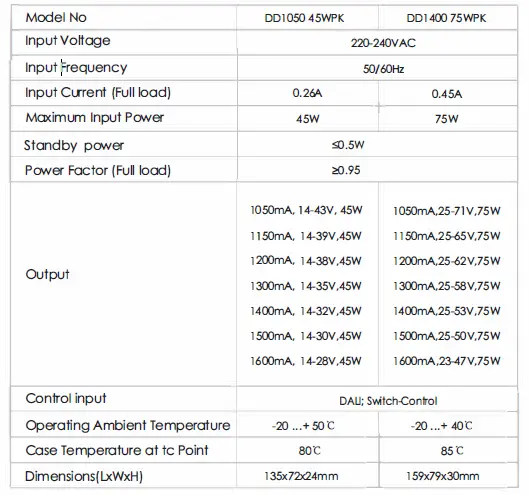

Specifications ,Characteristics

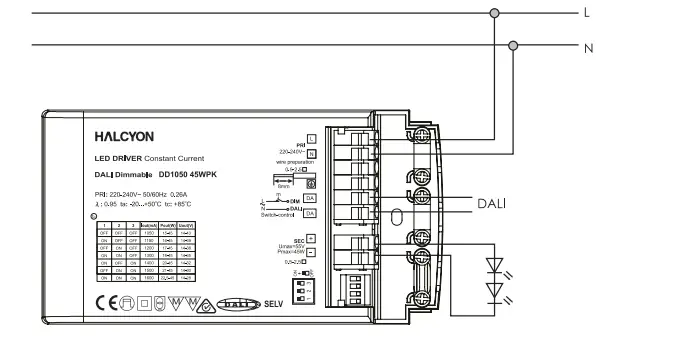

Wiring

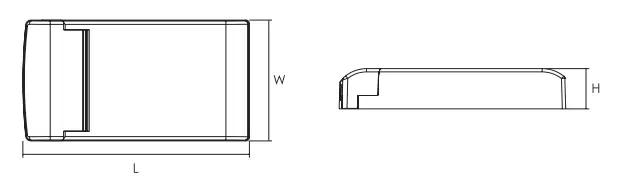

Dimensions(mm)
Dip Switch Settings
D01050 45WPK
| 1 | 2 | 3 | lout(mA) | Pout(W) | UoutM |
| OFF | OFF | OFF | 1050 | 15-45 | 14-43 |
| ON | OFF | OFF | 1150 | 16-45 | 14-39 |
| OFF | ON | OFF | 1200 | 17-45 | 14-38 |
| ON | ON | OFF | 1300 | 18-45 | 14-35 |
| ON | OFF | ON | 1400 | 20-45 | 14-32 |
| OFF | ON | ON | 1500 | 21-45 | 14-30 |
| ON | ON | ON | 1600 | 22.5-45 | 14-28 |
- Factory default setting 1050mA
D01400 75WPK
| 1 | 2 | 3 | lout(mA) | Pout(W) | Uout(V) |
| OFF | OFF | OFF | 1050 | 26-75 | 25-71 |
| ON | OFF | OFF | 1150 | 29-75 | 25-65 |
| OFF | ON | OFF | 1200 | 30-75 | 25-62 |
| ON | ON | OFF | 1300 | 32.5-75 | 25-58 |
| ON | OFF | ON | 1400 | 35-75 | 25-53 |
| OFF | ON | ON | 1500 | 37.5-75 | 25-50 |
| ON | ON | ON | 1600 | 37-75 | 23-47 |
- Factory default setting 1050mA
Dimming Characteristics
Functions
DALI:
In this operating mode the light level of the device is controlled via its DALI address.

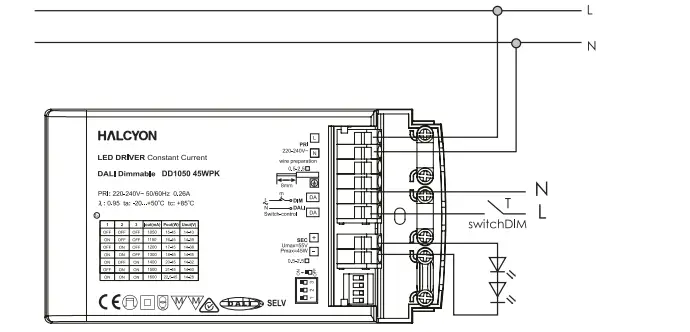

Switch-control:
Alternatively the device can be controlled using switch-inputs for mains voltage, The dimm level is saved at power-down and restored at power-up.
- Short press (<l SJ: switches LED driver ON and OFF.
- Long press: LED modules are dimmed. After repush the LED modules are dimmed in the opposite direction.
- In installations with LED drivers with different dimming levels or opposite dimming directions, all LED drivers can be synchronized to 50% dimming level by a l 5S push, switch off the light by short press one time, then long press.
Notice
- The compatibility with other devices must be tested in advance to the installation.
- DALI application and switch-control application can not apply to the system at the same time
