HYTRONIK HED6045-D2 45W Dali LED Driver
INSTRUCTION
MODEL NO.: HED6045/D2

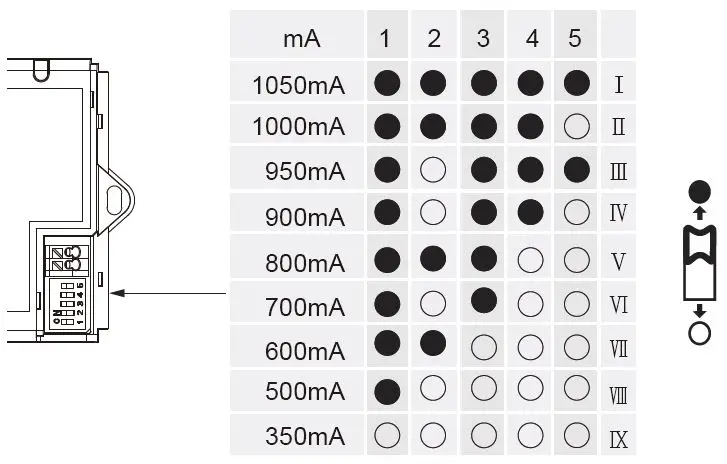

LED CURRENT SELECTION
The current can be easily configured by choosing the correct combination of the DIP switches (see table below):

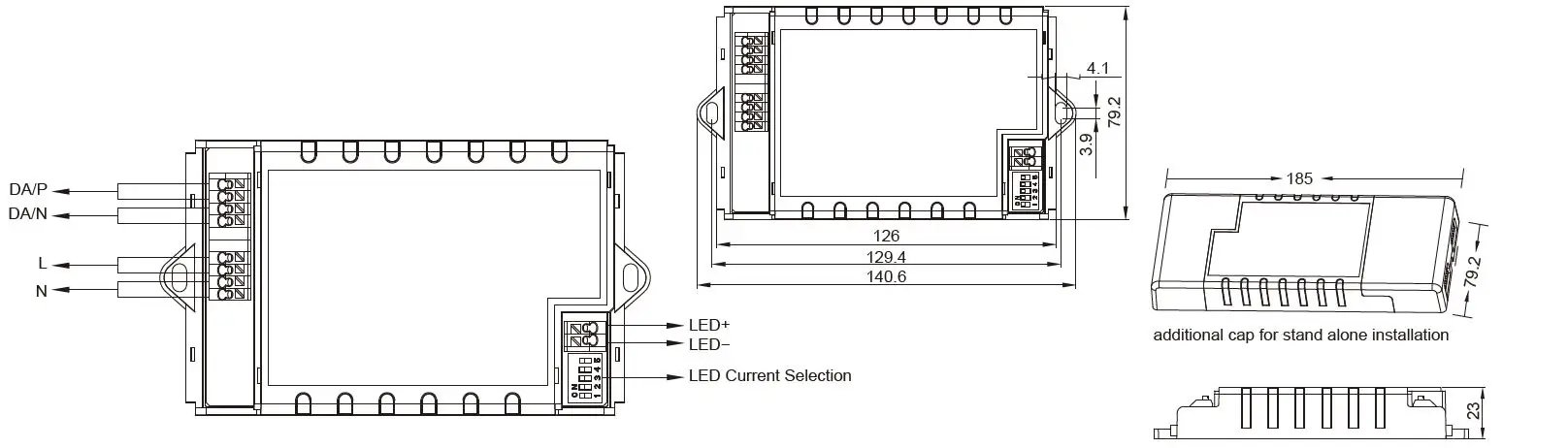

WIRING DIAGRAM
WARNING: Please make sure the correct current is selected before starting the driver!
Highlights
- In compliance with DALI 2 standard
- DALI, switch-Dim dimmable
- DALI default feedback
DALI
This series of products are supplied as ‘plug n’play DALI’ or ‘independent DALI’ system ready. These models are also fully DALI addressable and may be assigned to groups within the limits specified by the DALI protocol or supporting DALI controllers by using a DALI programming tool.
Switch-Dim
The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches. Up to 64 LED drivers may be connected to one switch.
Switch Action
Short press (<0.4 seconds)
Long press (>0.4 seconds)
Response
Toggle light on / off
Toggle dim light/increase brightness
Note: the short press has to be longer than 0.1s, or it will be invalid.
Synchronization
Switch Action
Long press (>15 seconds)
Response
All lights will dim down to a minimum then return to 50% brightness
We recommend the number of drivers connected to a switch does not exceed 25 pieces. The maximum length of the wires from push to driver should be no more than 20 meters.
Permanent Memory
This driver has built-in permanent memory against power failure, which means the light always starts up at the previous level when it was switched off last time.
SPECIFICATION
| Mains voltage | 220 ~240VAC 50/60Hz |
| Mains current | 240 ~ 220mA |
| Max. output power/current/voltage | 3.5-19W/350mA /10-54V 5-27W/ 500mA /10-54V 6-32W/ 600mA /10-54V 7-38W/ 700mA /10-54V 8-42W/800mA /10-52V 9-45W/900mA /10-50V 9.5-45W/ 950mA /10-47V 10-45W/ 1000mA /10-45V 10.5-44W/ 1050mA /10-42V |
| Power factor | ≥ 0.95 |
| Operation temperature | Ta: -20~+50 ℃ Tc:+80℃ |
| Max. Efficiency | 88% |
| Dimming interface | DALI, Switch-Dim. |
| Abnormal protection | Output short-circuit protection, Overload Protection, Open-circuit Protection with auto-reset |
| EMC standard | EN55015, EN61547, EN61000-3-2/-3-3, EN62479 |
| Safety standard | EN61347-1, EN61347-2-13 |
| DALI standard | IEC62386-101, IEC62386-102, IEC62386-207 |
| Dielectric strength | Input → output : 3000VAC / 5mA / 1min |
| Certification | CE, EMC |
| IP grade | IP20 |
