DALI TE-12A-H, TE-12A-L Triac Constant Current LED Driver

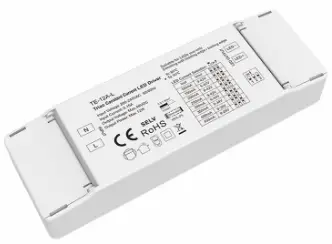

DALI-TE-12A-H,-TE-12A-L-Triac-Constant-Current-LED-Driver-PROUCT

Product Information
The Triac Constant Current LED Driver Model No. TE-12A-H and TE-12A-L is a dimmable LED driver that is designed for indoor LED lighting applications. It has a dimming interface that supports both Triac and ELV dimmers, allowing it to be used with leading edge/trailing edge Triac dimmers and dimming systems. The driver also features PWM digital dimming, which ensures that the LED color rendering index is not altered during dimming. It has a single channel constant current output, which can be configured via a DIP switch. The driver is equipped with over-heat, over-voltage, over-load, and short circuit protection, which allows it to recover automatically from these situations. It comes in a full protective plastic case and is backed by a 5-year, 50,000-hour warranty.

Technical Parameters

Model: TE-12A-H
Output Voltage: 3-24VDC –
Max Output Voltage: 33VDC
Output Power: Max. 12W – Output
Current: 350-700mA
Dimming Range: PWM duty cycle of 0.1% to 100%
PWM Frequency: 4000Hz
Model: TE-12A-L
Output Voltage: 9 -45VDC
Max Output Voltage: 48VDC
Output Power: Max. 12W
Output Current: 100-450mA
Dimming Range: PWM duty cycle of 0.1% to 100%
PWM Frequency: 4000Hz

Applications: The Triac Constant Current LED Driver is suitable for various applications including downlights, spotlights, and decorative lighting. It can be used in office, commercial, and domestic lighting settings, as well as in hotels, classrooms, warehouses, healthcare facilities, retail stores, and display areas. Additionally, it can be used for retrofit upgrades and new luminaire designs. Product Usage

Model No.: TE-12A-H, TE-12A-

Features

DALI-TE-12A-H, TE-12A-L-Triac-Constant-Current-LED-Driver-FIG-1

Dimming interface: Triac/ELV
Apply to leading edge/trailing edge Triac dimmers and dimming system
PWM digital dimming, no alter LED color rending index
1 channel constant current output, configurable current via DIP switch
Over-heat / Over-voltage / Over-load / Short circuit protection, recover automatically
Full protective plastic case
Suitable for indoor LED lighting application
5 Year, 50,000hr warranty

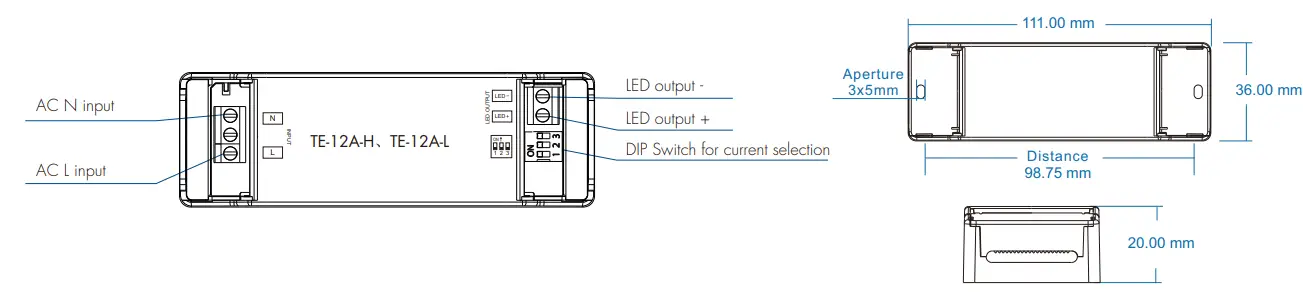

Mechanical Structures and Installations

DALI-TE-12A-H, TE-12A-L-Triac-Constant-Current-LED-Driver-FIG-2

Technical Parameters

Model		TE-12A-H	TE-12A-L
Output	Output Voltage	3-24VDC	9-45VDC
	Max Output Voltage	33VDC	48VDC
	Output Power	Max.12W	Max.12W
	Output Current	350-700mA	100-450mA
	Dimming Range	0～100％, dimming depth:0.1%
	PWM Frequency	4000Hz
	Current Accuracy	±5％
	Ripple & Noise Rise time	< 100mV
		1S/230VAC
Input	Input Voltage Range	200～240VAC
	Frequency Range	50/60Hz
	Effciency	78%/230VAC
	Alternating Current	0.15A/230VAC
	Inrush Current	Cold start 10A at 230VAC
	Anti Surge	L-N:1KV
	Leakage Current	< 0.5mA/230VAC
	No Load Power	< 1.3W
Protection	Over Load Power	Hiccup,recovers automatically affer fault condition is removed
	Short Circuit	Hiccup,recovers automatically affer fault condition is removed
	Over Temperature	Current decrease when PCB temp>100℃, recovers automatically affer fault condition is removed
Environment	Woking Temperature	-20℃～50℃
	T-case Max	80℃
	Working Humidity	20％～90％RH, non-condensing
	Storage Temp/Humidity	-40℃～80℃, 10％～95％RH
	Temperature Coeffcient	±0.03％/℃ (0-50％)
	Vibration Resistance	10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min
	IP Rating	IP20
Safety&EMC	Security Specifcations	IEC/EN61347-1, IEC/EN61347-2-13
	Withstand Voltage	I/P-O/P: 3750VAC
	Insulation Resistance	I/P-O/P: 100MΩ/500VDC/25℃/70％RH
	EMC Emission	EN61000-3-2 Class C, IEC61000-3-2
	EMC Immunity	EN61000-4-2.3.4.5.6.8.11, EN61347
	Certications	CE

LED Current Selection

Model	1 2 3
TE-12A-H	Output Voltage	3-24V	3-24V	3-24V	3-24V	3-22V	3-20V	3-18V	3-17V
TE-12A-H	Output Current	350mA	400mA	450mA	500mA	550mA	600mA	650mA	700mA
TE-12A-L	Output Voltage	9-45V	9-45V	9-45V	9-45V	9-40V	9-34V	9-30V	9-26V
TE-12A-L	Output Current	100mA	150mA	200mA	250mA	300mA	350mA	400mA	450mA

Applications

Suitable for downlight, spotlight and decorative applications.
Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display.
Use for retroit upgrades & new luminaire designs.

Wiring Diagram

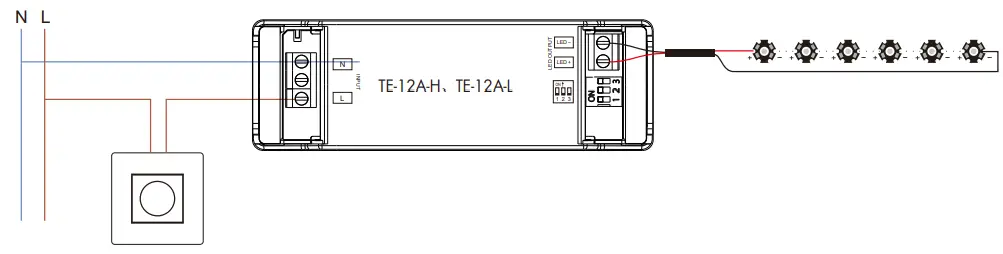

Connect Triac dimmer(no Neutral wire)

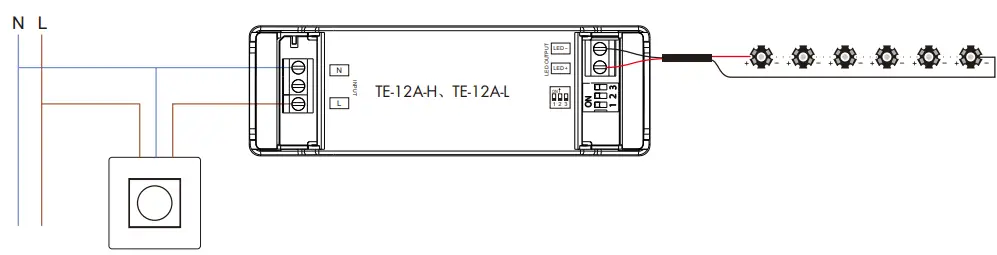

Connect Triac dimmer(with Neutral wire)

Triac Dimming Input
While connected with a Triac dimmer, such as Lutrom, Clipsal, Dynalite dimmer, different Triac dimmers from different suppliers may have different minimum dimming levels which the driver can not be dimmed below. To dim to 1%, please make sure the dimmer supports 1% minimum dimming level.
