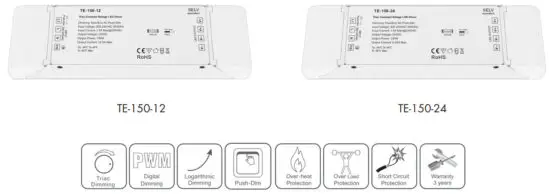

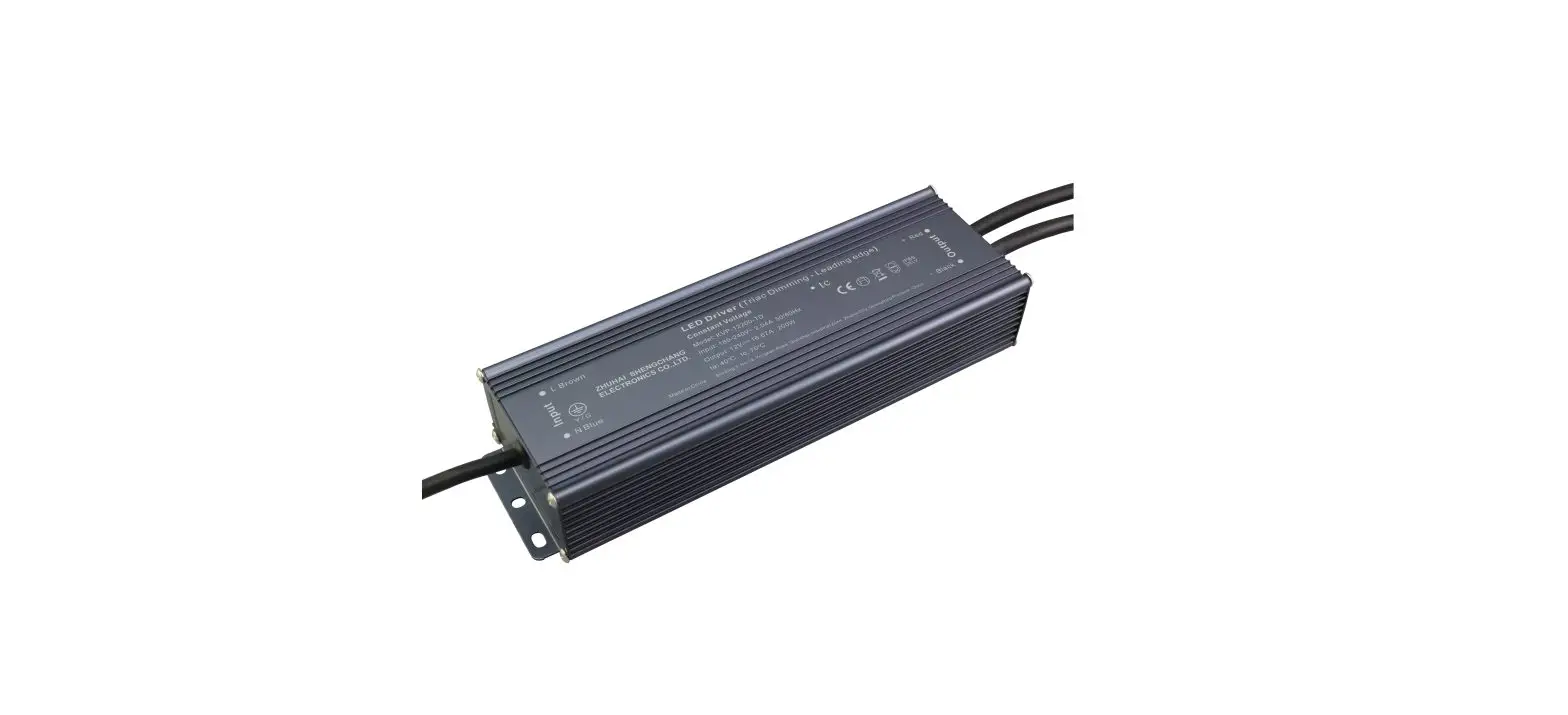

LED TE-150-12 Triac Constant Voltage LED Driver
Instruction Manual
Features
- Dimming interface: Triac/ELV, AC Push-Dim
- Apply to leading edge/trailing edge Triac dimmers and dimming system
- PWM digital dimming, no alter LED color rending index
- 1 channel constant voltage output, Max. total output power 150W
- Over-heat / Over-load / Short circuit protection, recover automatically
- Suitable for indoor LED lighting application
- 3 Year, 30,000hr warranty
Mechanical Structures and Installations
Technical Parameters
| Model | TE- 1 50-1 2 | TE-1 50-24 | |
| Output | Output Voltage | I 2VDC 1±0.5V) | 24VDC 1±0.5VI |
| Output Current | Max.12.5A | Max. 6.25A | |
| Output Power | 0-150W 150W Max. | ||
| Dimming Range | 0-100% | ||
| Ripple 8; Noise | <=220mV/230VAC | ||
| PWM Frequency | 2000Hz | ||
| Input | Input Voltage Range | 200-240VAC | |
| Frequency Range | 50/60Hz | ||
| Efficiency | 85%/230VAC | ||
| Alternating Current | i. , I .5A/230VAC | ||
| Inrush Current | Cold start 38A at 230VAC | ||
| Leakage Current | <5mA | ||
| No Load Power | 1W/230VAC | ||
| Protection | Over Load Power | Shut down the output when current blood >= 110%-140%, auto recovers. | |
| Short Circuit | Shut down automatically if a short circuit occurs, auto recovers. | ||
| Over Temperature | Intelligently adjust or turn off the output current if the PCB temp > 100t, auto recovers. | ||
| Environment | Working Temperature | -30°C-45t | |
| Ticase Max | 90t | ||
| Working Humidity | 20%-90%RH, non-condensing | ||
| Storage Temperature/Humidity | -40t—80t, 10%-95%RH | ||
| Temperature Coefficient | ±0.03%/t (050%) | ||
| Vibration Resistance | 10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min | ||
| IP Rioting | IP20 | ||
| Sofety&EMC | Security Specifications | IEC/EN61347-1, IEC/EN61347-2-13 | |
| Withstand Voltage | I/PO/P: 3750VAC | ||
| Insulation Resistance | I/P-0/P: 100M0/500VDC/25t/70%RH | ||
| EMC Emission | EN55015, EN610003-2 Class C, 1E051000-33 | ||
| EMC Immunity | EN61000-4-2.3.4.5.6.8.11, EN61547 | ||
| Certifications | CE, EMC | ||
Applications
- Suitable for LED related fixture or appliance which use LED light bar and LED tope (like LED Decoration or Advertisement devices).
- Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
- Use for retrofit upgrades & new luminaire designs.
Wiring Diagram

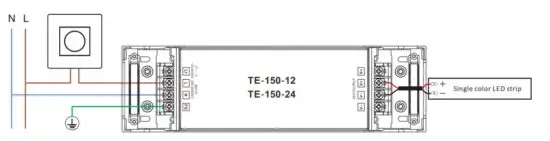

- Connect Triac dimmer(no Neutral wire)

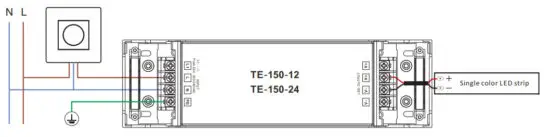

- Connect Triac dimmer(with Neutral wire)

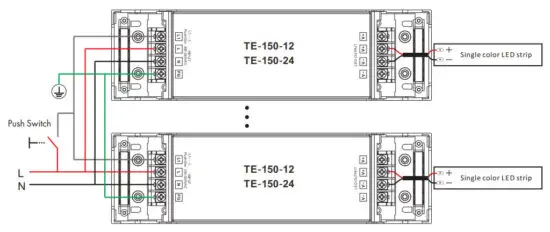

- Connect AC Push switch
Triac Dimming Input
While connected with a Triac dimmer, such as Lutron, Clipsal, and Dynalite dimmer, different Triac dimmers from different suppliers may have different minimum dimming levels which the driver can not be dimmed below. To dim to 1%, please make sure the dimmer supports a 1% minimum dimming level.
AC Push-Dim input
The provided AC Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.
- Short press:
Turn on or off the light. - Long press (1-6s):
Press and hold to step-less dimming,
With every other long press, the light level goes to the opposite direction. - Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure. - Synchronization:
If more than one LED driver is connected to the same push switch, do a long press for more than 10s, then the system is synchronized and all lights in the group dim up to 100%.
This means there is no need for any additional synchrony wire in larger installations.
We recommend the number of LED drivers connected to a push switch does not exceed 25 pieces,
The maximum length of the wires from push to the LED driver should be no more than 20 meters.

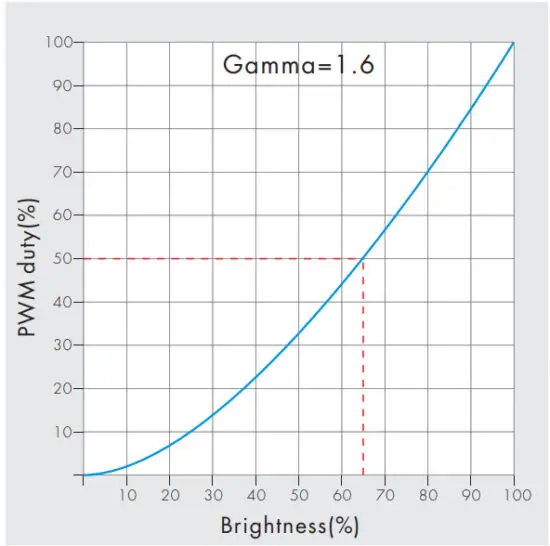

Dimming Curve
