LEDVANCE LED DRIVER CONSTANT VOLTAGE VAL
| EAN | l x w x h [mm] | W | IP | (°C) | VAC | Hz | |
| DR-V-30/220-240/24 | 4058075754928 | 160 x 42 x 30 | 30 | 20 | -20…+45 | 220-240 V | 50/60 Hz |
| DR-V-60/220-240/24 | 4058075754959 | 187 x 45 x 30.5 | 60 | 20 | -20…+45 | 220-240 V | 50/60 Hz |
| DR-V-120/220-240/24 | 4058075754980 | 268 x 45 x 30.5 | 120 | 20 | -20…+45 | 220-240 V | 50/60 Hz |
| DR-V-150/220-240/24 | 4058075755000 | 268 x 45 x 30.5 | 150 | 20 | -20…+45 | 220-240 V | 50/60 Hz |
LED DRIVER CONSTANT VOLTAGE VAL

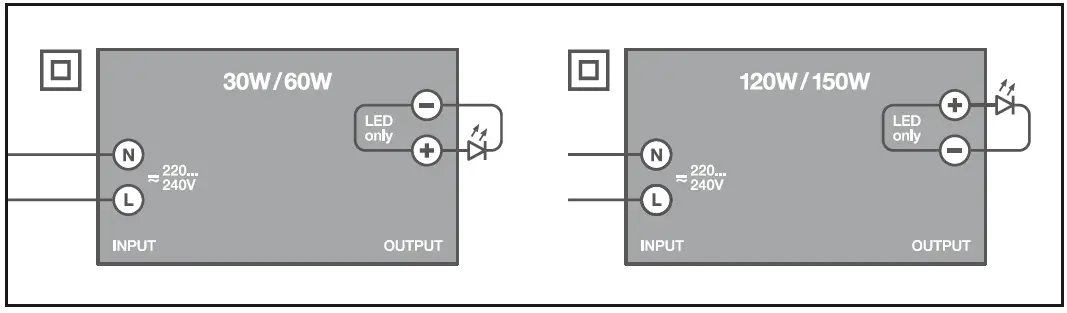

WIRE DIAGRAM – SINGLE CONNECTION
Installing and operating information (SELV driver):
Connect only 24V LED module load type. Lines max 2 m whole length excel modules.
Technical support: www.ledvance.com

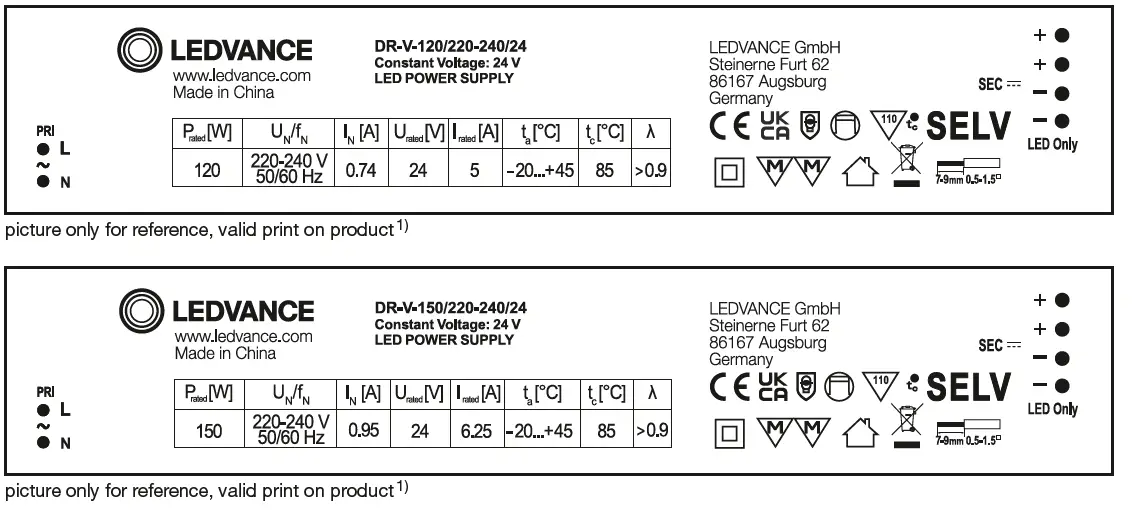

- Picture only for reference, valid print on product
LEDVANCE GmbH
Steinerne Furt 62
86167 Augsburg, Germany
www.ledvance.com
LEDVANCE Ltd, Aquila House
Delta Crescent, Westbrook, Warrington
WA5 7NR, United Kingdo
