SKYDANCE LN-12-12 Constant Voltage LED Driver

Features

Dimming interface: 0-10V, 1-10V, 10V PWM, Resistor, AC Push-Dim
Universal AC input / Full range
1 channel constant voltage output, Max. total output power 12W
Synchronize on multiple LED drivers
Over-heat / Over-load / Short circuit protection, recover automatically
Full protective plastic case
Suitable for indoor LED lighting application
5 Year, 50,000hr warranty

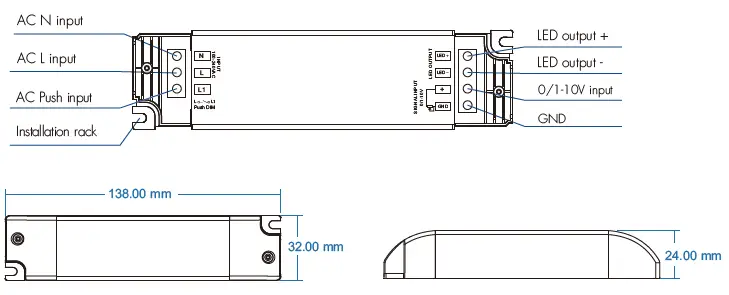

Mechanical Structures and Installations

Technical Parameter

Output	Output Voltage	12VDC
	Output Current	Max. 1A
	Output Power	Max. 12W
	Dimming Range	0～100％
	Ripple & Noise	<=150mV/230VAC
	PWM Frequency	500Hz
Input	Input Voltage Range	100～240VAC
	Frequency Range	50/60Hz
	Efﬁciency	81％/230VAC
	Alternating Current	0.26A/115VAC, 0.13A/230VAC
	Inrush Current	5A/230VAC
	Leakage Current	＜0.5mA/230VAC
	No Load Power	0.8W/115VAC, 1.2W/230VAC
Protection	Over Load Power	Shut down the output when current load >= 120％～150％, auto recovers.
	Short Circuit	Shut down automatically if short circuit occurs, auto recovers.
	Over Temperature	Intelligently adjust or turn off the output current if the PCB temp > 100℃, auto recovers.
Environment	Woking Temperature	-30℃～50℃
	T-case Max	80℃
	Working Humidity	20％～90％RH, non-condensing
	Storage Temperature/Humidity	-40℃～80℃, 10％～95％RH
	Temperature Coefﬁcient	±0.03％/℃ (0-50％)
	Vibration Resistance	10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min
	IP Rating	IP20
Safety&EMC	Security Speciﬁcations	IEC/EN61347-1, IEC/EN61347-2-13
	Withstand Voltage	I/P-O/P: 3750VAC
	Insulation Resistance	I/P-O/P: 100MΩ/500VDC/25℃/70％RH
	EMC Emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC Immunity	EN61000-4-2.3.4.5.6.8.11, EN61547
	Certifications	CE, EMC

Applications

Suitable for LED-related fixtures or appliances which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
Use for retrofit upgrades & new luminaire designs.

Wiring Diagram

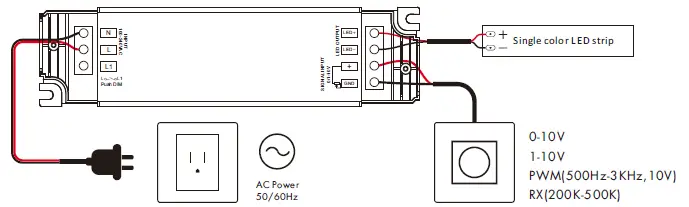

0/1-10V Connection

The 0/1-10V input is operable via commercially available simple rotary wall switches designed for 0/1-10V dimming equipment or from decicated system central dimming controllers.
Compliant with 0-10V, 1-10V, 10V PWM, RX(4 in 1).
We recommend the number of LED drivers connected to 0/1-10V dimmer does not exceed 5 pieces, The maximum length of the wires from dimmer to LED driver should be no more than 15 meters.
If the LED driver be used with Push-Dim interface prior to using the 0/1-10V interface, the 0/1-10 V signal should change over 10% to return 0/1-10 V control.

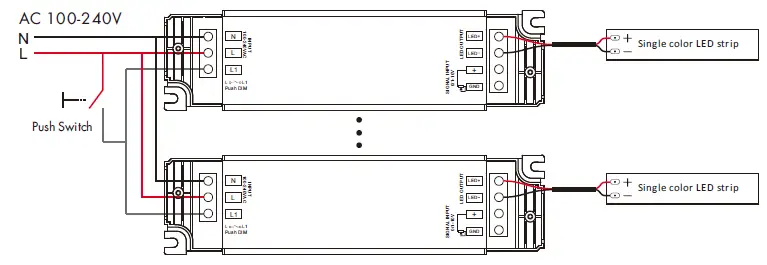

AC Push-Dim connection

The provided AC Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.

Short press:
Turn on or off light.

Long press (1-6s):
Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction.

Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure.

Synchronization:
If more than one LED driver are connected to the same push switch, do a long press for more than 10s, then the system is synchronized and all lights in the group dim up to 100%. This means there is no need for any additional synchrony wire in larger installation We recommend the number of LED drivers connected to a push switch does not exceed 25 pieces, The maximum length of the wires from push to LED driver should be more than 20 meters.

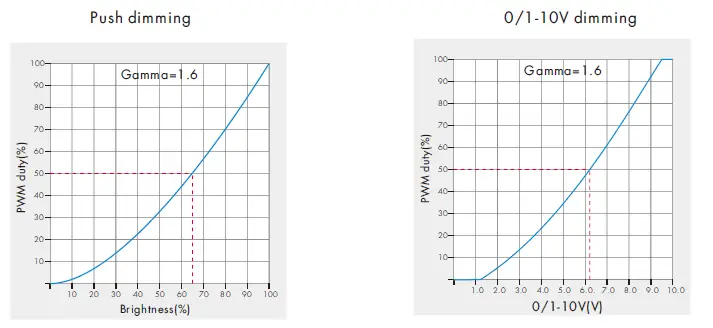

Dimming Curve
