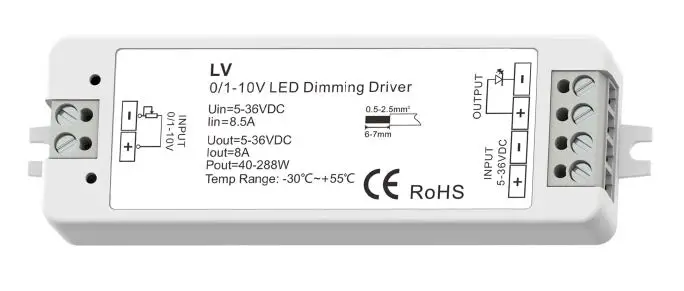

SKYDANCE LV 0-1-10V LED Dimming Driver
0/1-10V LED Dimming Driver
Model No.: LV
0-10V or 1-10V signal input/PWM Constant voltage output/Logarithmic dimming
Features
- 1 channel 0/1-10V input, 1 channel PWM constant voltage output.
- 0~100% dimming range via logarithmic characteristic can be very comfortable for human eyes.
- Compatible with active or passive 0-10V, 1-10V dimmer, can solve the fluorescent lamp dimming system compatible with LED lighting.
Technical Parameters
| Input and Output | |
| Input voltage | 5-36VDC |
| Input current | 8.5A |
| Output voltage | 5-36VDC |
| Output current | 1CH,8A |
| Output power | 40W/96W/192W/288W (5V/12V/24V/36V) |
| Output type | Constant voltage |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse polarity Short circuit |
| Weight | |
| Net weight | 0.043kg |
| Gross weight | 0.053kg |
| Dimming data | |
| Input signal | 0/1-10V |
| Dimming range | 0 -100% |
| Dimming curve | Logarithmic |
| PWM Frequency | 500Hz |
| Safety and EMC | |
| Health | EN 62479:2010 |
| Safety | EN 62368-1:2020+A11:2020 |
| EMC | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c: +85OC |
| IP rating | IP20 |

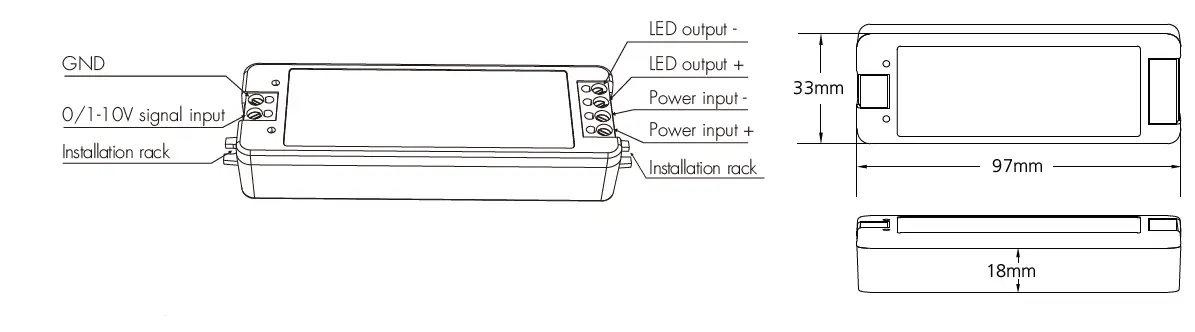

Mechanical Structures and Installations

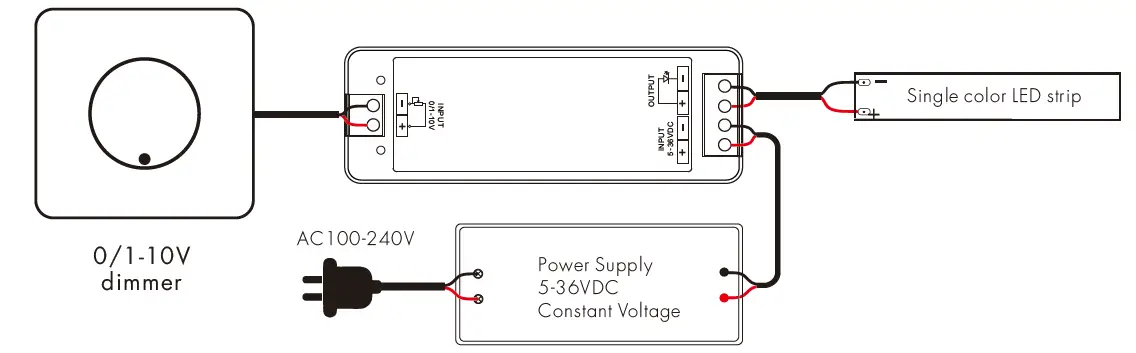

Wiring Diagram
Note:
- The 0/1-10V input is operable via commercially available simple rotary wall switchs designed for 0/1-10V dimming equipment or from decicated system central dimming controllers.
- Compliant with 0-10V, 1-10V, 10V PWM, RX(4 in 1).
- We recommend the number of LED drivers connected to 0/1-10V dimmer does not exceed 50 pieces, The maximum length of the wires from dimmer to LED driver should be no more than 50 meters.

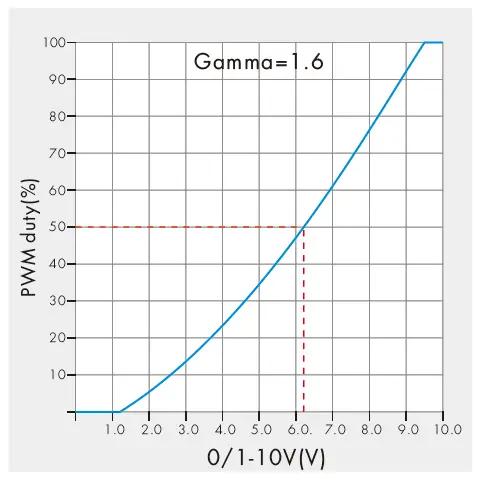

Dimming Curve
