RF 1-4 Channel Constant Voltage LED Driver
Model No.: PH-75-12, PH-75-12-2, PH-75-12-3, PH-75-12-4
PH-75-24, PH-75-24-2, PH-75-24-3, PH-75-24-4

Contents hide

1 Features

2 Product Size

3 Accessories

4 Technical Parameters

5 Wiring Diagram

6 Wiring denition:

7 System wiring

8 Match Remote Control

9 RGB/RGBW Dynamic mode list

10 Application notes

11 Dual-color control

12 Documents / Resources

13 Related Posts

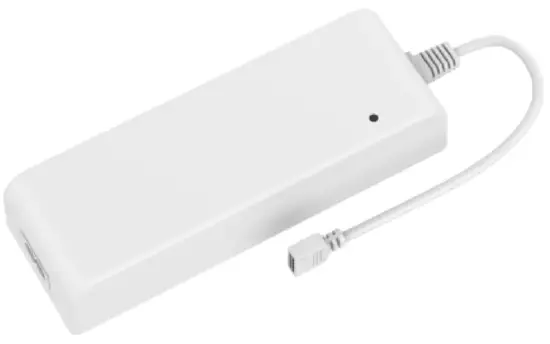

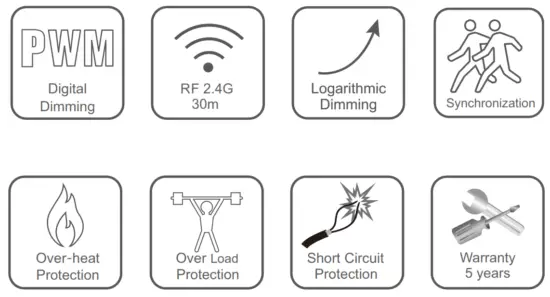

Features

Dimmable LED driver with RF control, apply to a single color, dual color, or RGB/RGBW LED constant voltage strips
Match with RF 2.4G single color, dual color, and RGB/RGBW remote. One RF LED driver accepts up to 10 remote controls
Universal AC input / Full range
1/2/3/4 channel constant voltage output, Max. total output power 75W
Built-in active PFC function: 0.95 Typ
When using RGB/RGBW light, built-in 10 dynamic modes, including jump or gradual change style
Auto-transmitting function: LED driver automatically transmits a signal to another LED driver with a 30m control distance
Synchronize on multiple LED drivers
Over-heat / Over-load / Short circuit protection, recover automatically
Full protective plastic case
Suitable for indoor LED lighting application
5 Year, 50,000hr warranty

Product Size

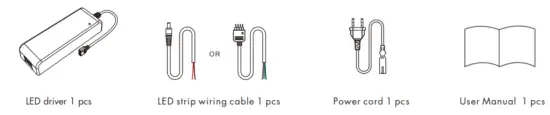

Accessories

Technical Parameters

Model		PI-I-75-12	PI-I-75-12-2	PH-75-12-3	PH-75-12-4
Output	Type	Dimming	Actor irreperorvre	RGB
	Output Viki	12VDC ± 0.5VDC
	Output Current	6.25A	3.125Ax 2CH	2.08A x 3CH	I .56A. x 4Chi
	Output Power	Max. 75W
	Dimming Range	0-100%
	PWM Frequency	390011z
	Ripple & Noise	<220mV
	Overload Power limitation	>120-150%
Input	InFul Voltage Rage	100–240VAC
	Frequency Ronge	50/60Hz
	Abernathy Current	0.86A/115VAC, 0.38A/230VAC
	Power Facia	PF>0.99/110VAC PF>0.95/230VAC, at Kal cod
	THD	110VACOTHD<10% 230VACCITHD<16%
	Efficiencyltyp I	BB%
	Inrush Current	Colt star 35A at 230VAC
	Anti Surge	EN: 1KV
	leakage Current	<05mA
Protection	Over toad Power	Shut down the coo when current load > 120% -.15096, out recorders.
	New Voltage	SNA down the output when nonfood > 13V, out *recovers.*
	Shoe Ckcull	Sid down ovamaicoly if short ckcuN occurs, our recovers.
	Over Temperature	Inteligendy odium Or Wm if the corm current I the KB temp > 100t, out meows.
Environment	Working Temperature	–30t–50t
	‘loose Max	80t
	VVorkirg Humidity	2096–90%RH, non-condensing
	%rage Temperokxe/Humidity	.40t –80t, 10%–95%RH
	Temperable Coefficient	±0.03%/t 10.50%)
	Vibration Resistance	10-500Hz, 2G, 6min/eyelet, X,Y,Z axes/2min
	IP Rating	P20
Safely& EMC	Stay Speelieotions	EC/EN61347.1. IEC/EN61347.2.1 3
	Withstand Voltage	VPO/P: 3750VAC
	insulation Resisiorce	VPO/P: 100MQ/503VDC/25t/7096RH
	EMC Emission	EN55015, EN610003.2 Gass C, EC610003-3
	EMC Irerranity	EN6100042.3.4.5.6. 8.11, EN61547
	Certifications	CE, *ENC*

Model		PH-75-24	PH-75-24-2	PH-75-24-3	PH-75-24-4
Output	Type	Dimming	Color temperature	RGB	RGBW
	Output Voltage	24VDC ± 0.5VDC
	Output Current	3.125A I	1.56A x 2CH I	1.04A x 3CH	I 0.78A x 4CH
	Output Power	Max. 75W
	Dimming Range	0•100%
	PWM Frequency	3900Hz
	Ripple & Noise	ca; 330mV
	Overload Power Limitation	>120-150%
Input	Input Voltage Range	100-240VAC
	Frequency Range	50/60Hz
	Alternating Current	0.84A/115VAC, 0.37A/230VAC
	Power Factor	PF>0.99/110VAC PF>0.95/230VAC, at full load
	THD	110VACGTHDic 10% 230VACOTHEK 16%
	Ef ficiencyltyp.1	90%
	Inrush Current	Cold sort 38A at 230VAC
	Anti Surge	L-N: 1KV
	Leakage Current	<0.5mA
Protection	Over Load Power	Shut down the output when the current load > 120%-150%, auto recovers.
	Over Voltage	Shut down the output when non-load > 26V, auto recovers.
	Short Circuit	Shut down automatically if a short circuit occurs, aub recovers.
	Over Temperature	Intelligently adjust or turn off the output current if the PCB temp > 100t, auto recovers.
Environment	Working Temperature	-30°C–50°C
	Tcase Max	80°C
	Working Humidity	20 %.–90%RH, non-condensing
	Storage Temperature/Humidity	-40°C–80°C, 10%–95%RH
	Temperature Coefficient	±0.03%/°C {0-50 %I
	Vibration Resistance	10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min
	IP Rating	IP20
Safety&EMC	Security Specifications	IEC/EN61347-1, IEC/EN61347-2-13
	Withstand Voltage	I/P-0/P: 3750VAC
	Insulation Resistance	I/P-0/P: 100MQ/500VDC/25t/70%RH
	NC Emission	EN55015, EWA 000-3-2 Class C, 1E051000-3.3
	ENC Immunity	EN610004-2.3.4.5.6.8.11, EN61547
	Certifications	CE, EMC

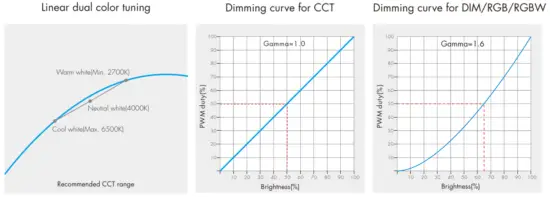

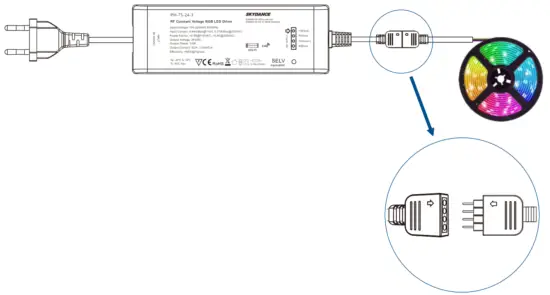

Wiring Diagram

Note:

The wiring arrows must be in the same direction.
Use above no. 22 wire to connect this product.

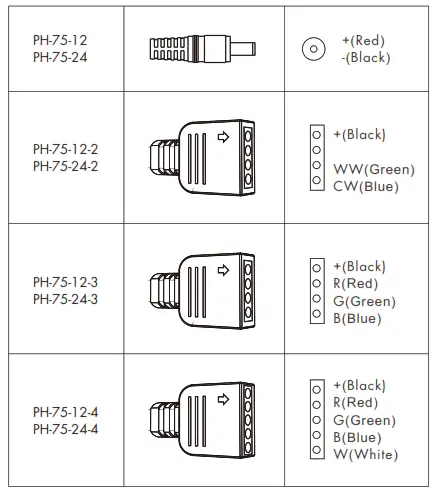

Wiring denition:

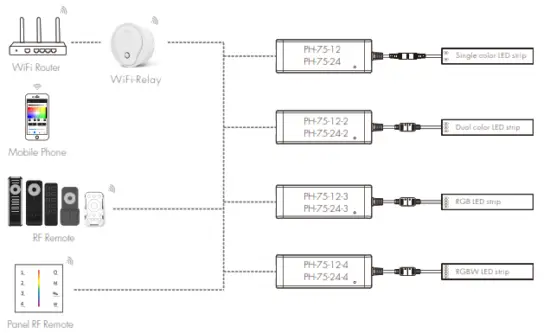

System wiring

Match Remote Control

Use power restart to match the LED driver and RF remote,
The LED driver of different light types matches the RF remote of the corresponding light type.
Match:
Switch off the power, then switch on power again,
immediately short press the on/off key (single-zone remote) or zone key (multiple zones remote) 3 times on the remote.
The light blinks 3 times means the match is successful.
.Delete:
Switch off the power, then switch on power again, immediately short press the on/off key (single-zone remote) or zone key (multiple zones remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.

RGB/RGBW Dynamic mode list

No.	Name	No.	Name
1	RGB jump	6	RGB fade in and out
2	RGB smooth	7	Red fade in and out
3	6 color jump	8	Green fade in and out
4	6 color smooth	9	Blue fade in and out
5	Yellow cyan purple smooth	10	White fade in and out

Application notes

All LED drivers are in the same zone.
Auto-transmitting: One LED driver can transmit the signals from the remote to another LED driver within 30m, as long as there is a LED driver within 30m, the remote control distance can be limitless.
Auto-synchronization: Multiple LED drivers within a 30m distance can work synchronously when they are controlled by the same remote, under the same dynamic mode, and at the same speed.
LED driver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range.
Strong signal sources such as WiFi routers and microwave ovens will affect the range.
We recommend for indoor applications that LED driver placements should be no further apart than15m.

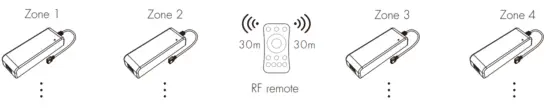

Each LED driver(one or more) is in a different zone, like zone 1, 2, 3, or 4.
