LN-40-12 0/1-10V Constant Voltage LED Driver
Instruction Manual

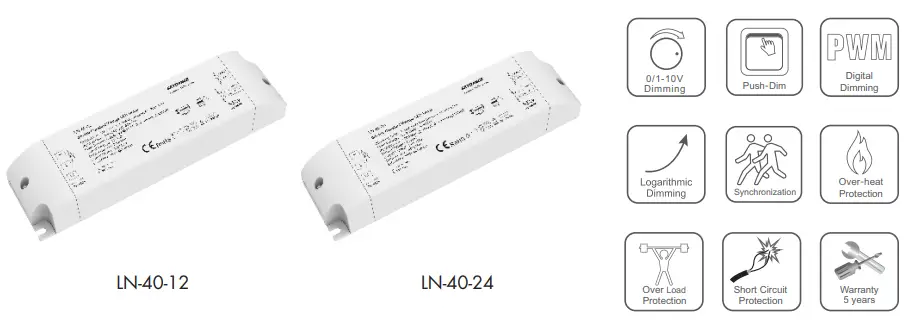

Features
- Dimming interface: 0-10V, 1-10V, 10V PWM, Resistor, AC Push-Dim
- Universal AC input / Full range
- 1 channel constant voltage output, Max. total output power 40W
- Synchronize on multiple number of LED drivers
- Over-heat / Over-load / Short circuit protection, recover automatically
- Full protective plastic case
- Suitable for indoor LED lighting application
- 5 Year, 50,000hr warranty

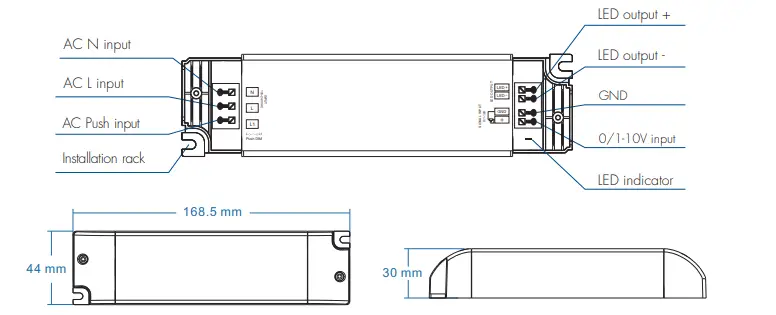

Mechanical Structures and Installations
Technical Parameters
| Model | LN-40-1 2 | LN-40-24 | |
| Output | Output Voltage | 12VDC | 24VDC |
| Output Current | Max. 3.34A | Max. 1.67A | |
| Output Power | Max. 40W | ||
| Dimming Range | 0-100% | ||
| Ripple & Noise | <=200mV/230VAC | <=280mV/230VAC | |
| PWM Frequency | 500Hz | ||
| Input | Input Voltage Range | 100-240VAC | |
| Frequency Range | 50/60Hz | ||
| Efficiency | 81 %/230VAC | 86%/230VAC | |
| Alternating Current | 0.70A/115VAC, 0.41A/230VAC | 0.67A/1 15VAC, 0.40A/230VAC | |
| Inrush Current | Cold start 27.5A at 230VAC | ||
| Leakage Current | <5mA | ||
| No Load Power | 0.8W/115VAC, 1.2W/230VAC | I 1.6W/1 15VAC, 2.1W/230VAC | |
| Protection | Over Load Power | Shut down the output when current load >= 120%-150%, auto recovers. | |
| Short Circuit | Shut down automatically if short circuit occurs, auto recovers | ||
| Over Temperature | Intelligently adjust or turn off the output current if the PCB temp > 100°C, auto recovers | ||
| Environment | Woking Temperature | -30°C-50°C | |
| Tcase Max | 70t | ||
| Working Humidity | 20%-90%RH, non-condensing | ||
| Storage Temperature/Humidity | -40°C-80°C, 10%-95 %RH | ||
| Temperature Coefficient | ±0.03%/t l0-50%) | ||
| Vibration Resistance | 10-500Hz, 2G, 6min/cycle, X,Y,Z axes/2min | ||
| IP Rating | IP20 | ||
| Safety&EMC | Security Specifications | IEC/EN61347-1, IEC/EN61347-2-13 | |
| Withstand Voltage | I/P-0/P: 3750VAC | ||
| Insulation Resistance | I/P-0/P: 100M0/500VDC/25°C/70%RH | ||
| EMC Emission | EN55015, EN61000-3-2 Class C, IEC61000-3-3 | ||
| EMC Immunity | EN61000-4-2.3.4.5.6.8.11, EN61547 | ||
| Certications | CE, EMC | ||
Applications
- Suitable for LED related fixture or appliance which use LED light bar and LED tape (like LED Decoration or Advertisement devices).
- Office / Commercial / Domestic Lighting, Hotels, Retail and Display.
- Use for retrofit upgrades & new luminaire designs.
Wiring Diagram

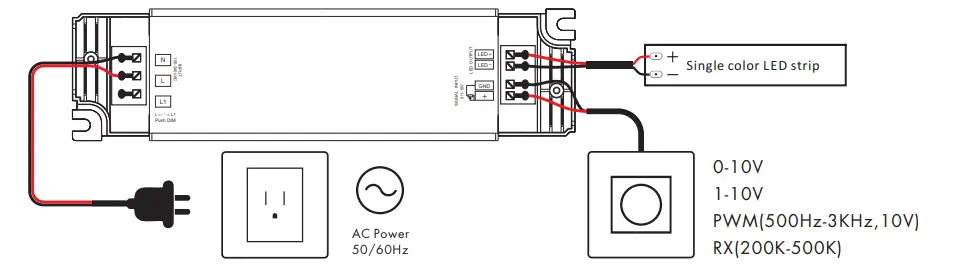

- 0/1-10V Connection
● The 0/1-10V input is operable via commercially available simple rotary wall switchs designed for 0/1-10V dimming equipment or from decicated system central dimming controllers.
● Compliant with 0-10V, 1-10V, 10V PWM, RX(4 in 1).
● We recommend the number of LED drivers connected to 0/1-10V dimmer does not exceed 5 pieces,
The maximum length of the wires from dimmer to LED driver should be no more than 15 meters.
● If the LED driver be used with the RF remote or Push-Dim interface prior to using the 0/1-10V interface, the 0/1-10 V signal should change over 10% to return 0/1- 10 V control. - AC Push-Dim connection

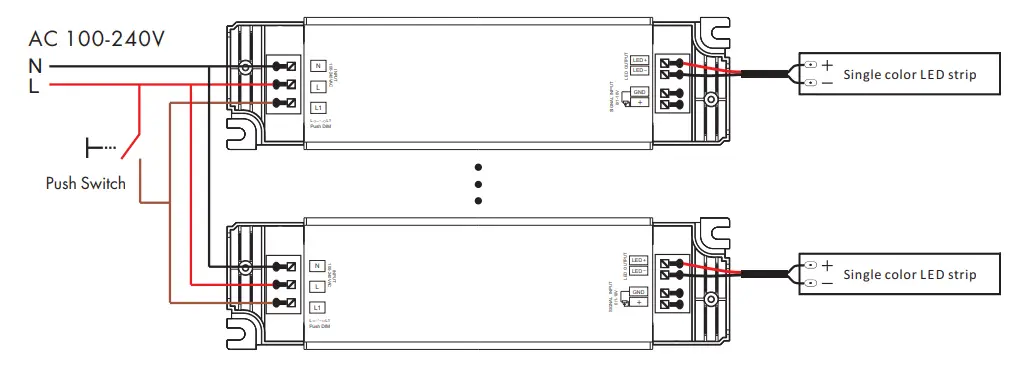

● The 0/1-10V input is operable via commercially available simple rotary wall switchs designed for 0/1-10V dimming equipment or from decicated system central dimming controllers.
The provided AC Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs.
- Short press:
Turn on or off light. - Long press (1-6s):
Press and hold to step-less dimming,
With every other long press, the light level goes to the opposite direction. - Dimming memory:
Light returns to the previous dimming level when switched off and on again, even at power failure. - Synchronization:
If more than one LED driver are connected to the same push switch, do a long press for more than 10s, then the system is synchronized and all lights in the group dim up to 100%.
This means there is no need for any additional synchrony wire in larger installations.
We recommend the number of LED drivers connected to a push switch does not exceed 25 pieces, The maximum length of the wires from push to LED driver should be no more than 20 meters.
Dimming Curve
