Ignis Triac Constant Voltage Dimming Driver Instructions (+ PDF)

ignis Triac Constant Voltage Dimming Driver Instructions

From a leading, established position on the market, our power supplies boast optimal standards for lighting installations.

Protection against power surges
High efficiency above 85%
Smooth regulation without flickering
Does not require a minimum charge

Models in the IGNIS Family are DALI regulated IEC 62386 protocol) or TRIAC or ELV phase-cut regulated (phase beginning and end).

Power supplies with DALI regulation can also be regulated by inserting a push-button on the phase feeding them..

More powerful models combine DALI and 3in1 regulation.

Contents hide

1 TSL Family

1.1 TSL LDR Family Professional

1.2 TSL NGD Family Professional

1.3 TSL BQR Family Professional

1.4 TSL SCN Family Professional

1.5 TSL HLG Family Professional

1.6 TSL IDLV Family Professional

1.7 TSL NDR Family Industrial

1.8 TSL APV Family Industrial

1.9 TSL HDR Family Industrial

1.10 TSL HDR Family Industrial

1.11 TSL LRS Family Industrial

1.12 TSL PWM Family Professional

1.13 TSL RSP Family Industrial

2 Documents / Resources

3 Related Posts

TSL Family

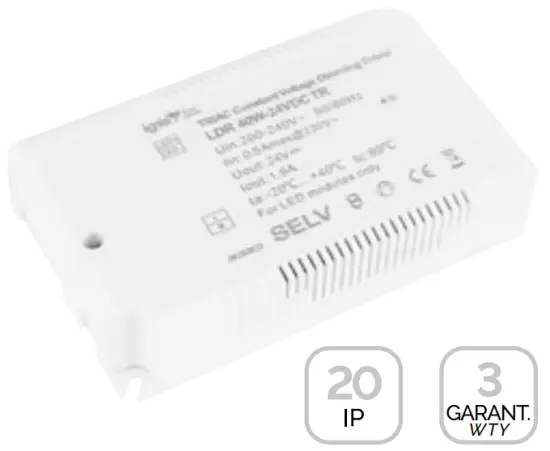

TSL LDR Family Professional

Code	Model	Voltage	Power	Dimm.	Dimensions
9250630	LDR 40-12 DA	12 V	40 W	DALI+Push	137 x 82 x 31 mm
9250622	LDR 40-12 TR	12 V	40 W	TRIAC	137 x 82 x 31 mm
9250631	LDR 40-24 DA	24 V	40 W	DALI+Push	137 x 82 x 31 mm
9250623	LDR 40-24 TR	24 V	40 W	TRIAC	137 x 82 x 31 mm

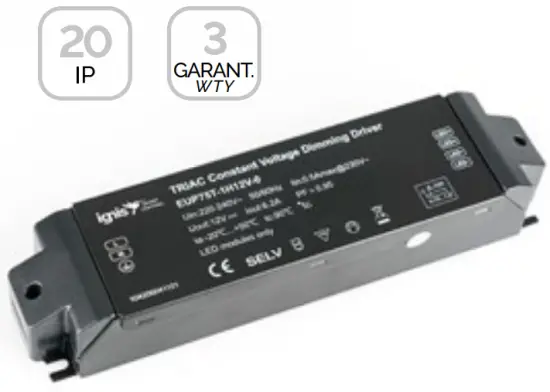

TSL NGD Family Professional

Code	Model	Voltage	Power	Dimm.	Dimensions
9250632	NGD 75-12 DA	12 V	75 W	DALI+Push	203 x 54 x 33 mm
9250624	NGD 75-12 TR	12 V	75 W	TRIAC	203 x 54 x 33 mm
9250633	NGD 75-24 DA	24 V	75 W	DALI+Push	203 x 54 x 33 mm
9250625	NGD 75-24 TR	24 V	75 W	TRIAC	203 x 54 x 33 mm

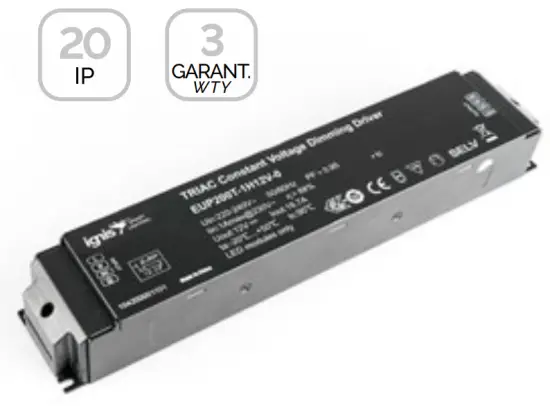

TSL BQR Family Professional

Code	Model	Voltage	Power	Dimm.	Dimensions
9250636	BOP 200-12 DA	12 V	200 W	5in1	310 x 60 x 45 mm
9250628	BOP 200-12 TR	12 V	200 W	TRIAC	310 x 60 x 45 mm
9250637	BOP 200-24 DA	24 V	200 W	5in1	310 x 60 x 45 mm
9250629	BOP 200-24 TR	24 V	200 W	TRIAC	310 x 60 x 45 mm

5in1 | Regulación DALI, 1-10V, pulsador, resistencia o PWM 10V / DALI, 1-10V, push, resistance or PWM 10V dimming

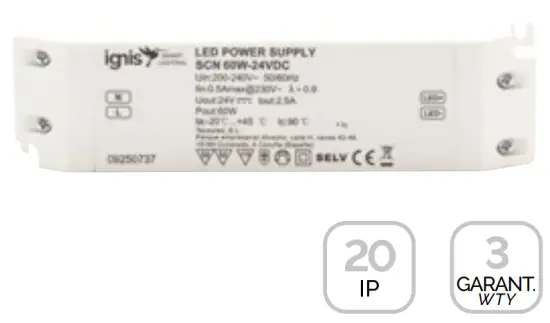

TSL SCN Family Professional

Code	Model	Voltage	Power	Dimm.	Dimensions
9250874	SCN 30-24	24 V	30W	NO	149 x 40,4 x 26,7 mm MI
9250737	SCN 60-24	24 V	60 W	NO	170 x 44,5 x 28,2 mm
9250738	SCN 100-24	24 V	100 W	NO	179,4 x 62,5 x 30,6 mm
9250739	SCN 150-24	24 V	150 W	NO	179,4 x 62,5 x 30,6 mm

Meanwell has created a series 0f robust, solid, reliable models that have been awarded the most important global certifications.

TSL HLG Family Professional

Code	Model	Voltage	Power	Dimm.	Dimensions
9250474	HLG 185-12	12V	156 W	NO	228x 68x 38.8 mm
9250118	HLG 185-12 B	12V	156 W	3in1	228x 68x 38.8 mm
9250285	HLG 240H-12	12V	192 W	NO	244.2 x 68 x 38,8 mm
9250087	HLG 240H-12 B	12V	192 W	3in1	244.2 x 68 x 38,8 mm
9250420	HLG 320H-12	12V	264 W	NO	252 x 90 x 43,8 mm
9250088	HLG 320H-12 B	12V	264 W	3in1	252 x 90 x 43,8 mm
9250318	HLG 185-24	24V	187.2 W	NO	228 x 68 x38.8 mm
9250112	HLG 185-24 B	24V	187.2 W	3in1	228 x 68 x38.8 mm
9250075	HLG 240H-24	24V	240 W	NO	244.2 x 68 x 38,8 mm
9250201	HLG 240H-24 B	24V	240 W	3in1	244.2 x 68 x 38,8 mm
9250076	HLG 320H-24	24V	320 W	NO	252 x 90 x 43,8 mm
9250095	HLG 320H-24 B	24V	320 W	3in1	252 x 90 x 43,8 mm
9250528	HLG 480H-24	24V	480 W	NO	262 x125 x43.8 mmla
9250556	HLG 480H-24 B	24V	480 W	3in1	262 x125 x43.8 mmla
9250506	HLG 185H-48	48V	187.2 W	NO	228 x 68 x38.8 mmla
9250740	HLG 240H-48	48V	240 W	NO	244.2 x 68 x 38,8 mm
9250571	HLG 320H-48	48V	321,6 W	NO	252 x 90 x 43,8 mm

3in1 | Regulación 1-10V, resistencia o PWM 10V / 1-10V, resistance or PWM 10V dimming

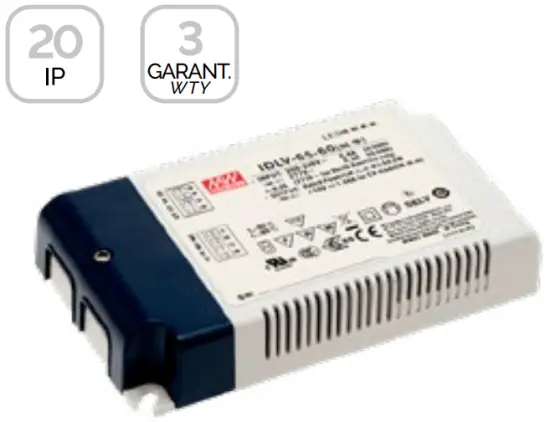

TSL IDLV Family Professional

Code	Model	Voltage	Power	Dimm.	Dimensions
9250557	IDLV 45-12	12 V	36 W	3inl	120 x 75 x 25 mm
9250559	IDLV 65-12	12 V	50 W	3in1	130 x 75 x 25 mm
9250558	IDLV 45-24	24 V	45 W	3in1	120 x 75 x 25 mm
9250560	IDLV 65-24	24 V	57,6 W	3in1	130x 75 x25 mm

3in1 | Regulación 0-10V, resistencia o PWM 10V / 0-10V, resistance or PWM 10V dimming

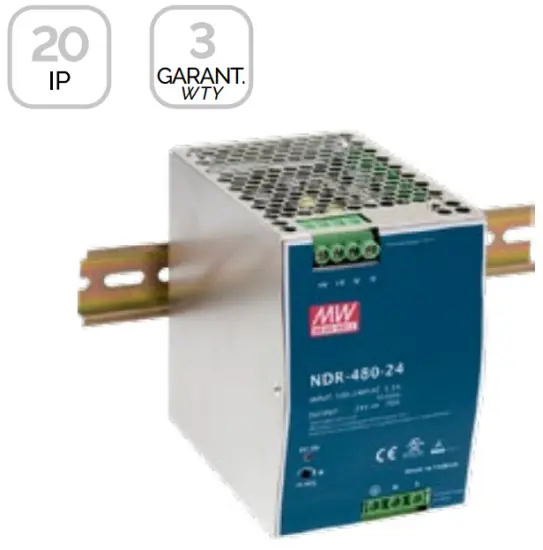

TSL NDR Family Industrial

Code	Model	Voltage	Power	Dimm.	Dimensions
9250487	NDR 75-12	12 V	75.6 W	NO	32 x 125,2 x 102 mm
9250488	NDR 120-12	12 V	120 W	NO	40 x 125,2 x 113.5 mm
9250490	NDR 75-24	24 V	76.8 W	NO	32 x 125,2 x 102 mm
9250367	NDR 120-24	24 V	120 W	NO	40 x 125,2 x 113.5 mm
9250368	NDR 240-24	24 V	240 W	NO	63 x 125,2 x 113.5 mm

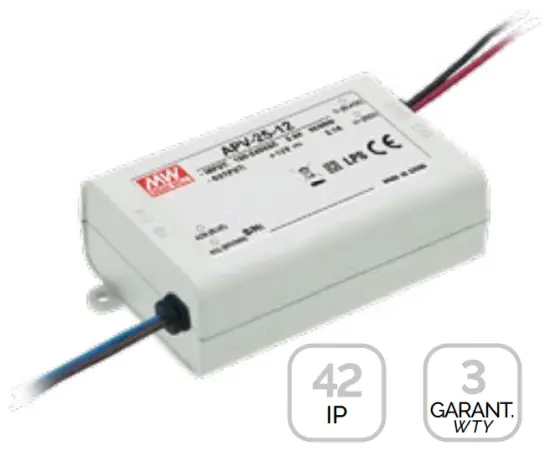

TSL APV Family Industrial

Code	Model	Voltage	Power	Dimm.	Dimensions
9250680	APV 8-12E	12 V	8,04 W	NO	60 x 30 x 23.5 mm la
9250056	APV 16-12	12 V	15 W	NO	77 x 40 x 29 mm
9250543	APV 8-24E	24 V	8,16 W	NO	60 x 30 x 23.5 mm
9250064	APV 16-24	24 V	16 W	NO	77 x 40 x 29 mm

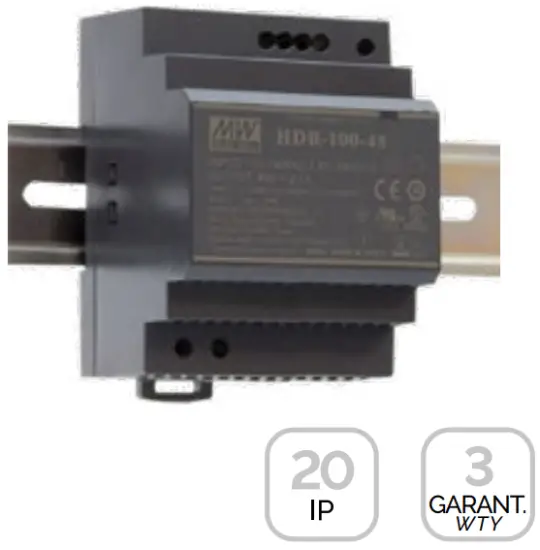

TSL HDR Family Industrial

Code	Model	Voltage	Power	Dimm.	Dimensions
9250481	H DR 30-12	12 V	24 W	NO	35 x 90 x 54,5 mm
9250482	H DR 60-12	12 V	54 W	NO	52.5 x 90 x 54,5 mm
9250910	H DR 100-12N	12 V	90 W	NO	70 x 90 x 54,5 mm
9250484	H DR 30-24	24 V	36 W	NO	35 x 90 x 54,5 mm
9250485	H DR 60-24	24 V	60 W	NO	52.5 x 90 x 54,5 mm
9250672	H DR 100-24N	24 V	100.8 W	NO	70 x 90 x 54,5 mm

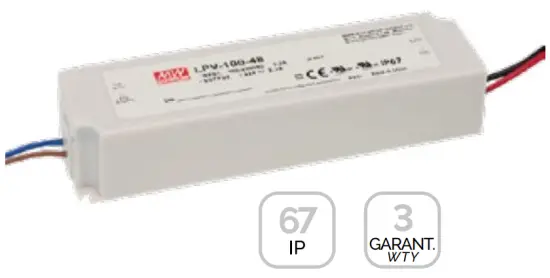

TSL HDR Family Industrial

Code	Model	Voltage	Power	Dimm.	Dimensions
9250069	LPV 20-12	12 V	20 W	NO	118 x 35 x 26 mm
9250070	LPV 35-12	12 V	36 W	NO	148 x 40 x 30 mm
9250050	LPV 60-12	12 V	60 W	NO	162,5 x 42.5 x 32 mm
9250061	LPV 100-12	12 V	102 W	NO	190 x 52 x 37 mm
9250082	LPV 150-12	12 V	120 W	NO	191 x 63 x 37,5 mm
9250065	LPV 20-24	24 V	20 W	NO	118 x 35 x 26 mm
9250066	LPV 35-24	24 V	36 W	NO	148 x 40 x 30 mm
9250054	LPV 60-24	24 V	60 W	NO	162,5 x 42.5 x 32 mm
9250055	LPV 100-24	24 V	100,8 W	NO	190 x 52 x 37 mm
9250083	LPV 150-24	24 V	151,2 W	NO	191 x 63 x 37,5 mm

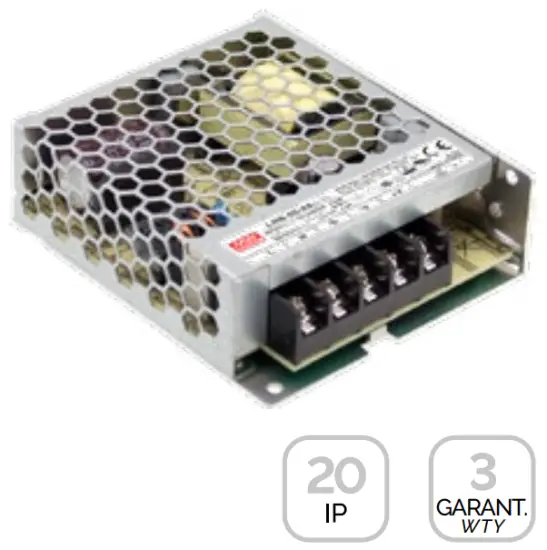

TSL LRS Family Industrial

Code	Model	Voltage	Power	Dimm.	Dimensions
9250380	LRS 35-12	12 V	36 W	NO	99 x 82 x 30 mm
9250240	LRS 50-12	12 V	50.4 W	NO	99 x 82 x 30 mm
9250382	LRS 75-12	12 V	72 W	NO	99 x 97 x 30 mm
9250242	LRS 100-12	12 V	102 W	NO	129 x 97 x 30 mm
9250245	LRS 150-12	12 V	150 W	NO	159 x 97 x 30 mm
9250381	LRS 35-24	24 V	36 W	NO	99 x 82 x 30 mm
9250241	LRS 50-24	24 V	52.8 W	NO	99 x 82 x 30 mm
9250383	LRS 75-24	24 V	76.8 W	NO	99 x 97 x 30 mm
9250244	LRS 100-24	24 V	108 W	NO	129 x 97 x 30 mm
9250243	LRS 150-24	24 V	156 W	NO	159 x 97 x 30 mm

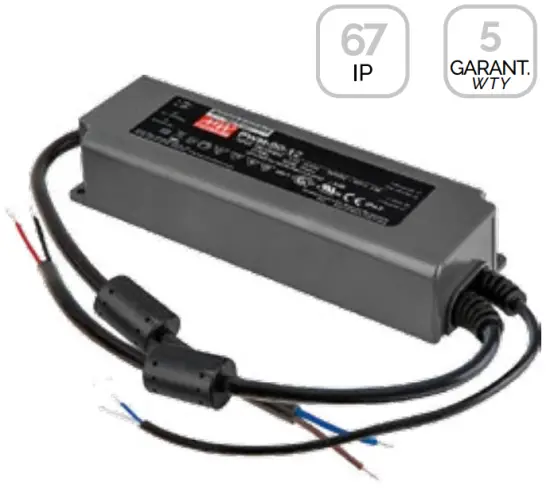

TSL PWM Family Professional

Code	Model	Voltage	Power	Dimm.	Dimensions
9250436	PWM 40-12	12 V	40,08 W	3inl	150 x 53 x 35 mm
9250426	PWM 60-12	12V	60W	3inl	150 x 53 x 35 mm
9250260	PWM 90-12	12 V	90 W	3inl	171x 63 x 375 mm
9250261	PWM 120-12	12V	120W	3inl	191x 63 x 375 mm
9250384	PWM 40-24	24 V	40,08 W	3inl	150 x 53 x 35 mm
9250233	PWM 60-24	24 V	60 W	3inl	150 x 53 x 35 mm
9250895	PWM 60-24BLE	24 V	60 W	CASAMBI	150 x 53 x 35 mm
9250930	PWM 60-24DA2	24 V	60 W	DALI2	150 x 53 x 35 mm
9250084	PWM 90-24	24 V	90 W	3inl	171x 63 x 375 mm
9250931	PWM 90-24DA2	24 V	90 W	DALI2	171x 63 x 375 mm
9250234	PWM 120-24	24 V	120 W	3in1	191x 63 x 375 mm
9250914	PWM 120-24DA2	24 V	120 W	DALI2	191x 63 x 375 mm
9250876	PWM 120-24BLE	24 V	120 W	CASAMBI	191x 63 x 375 mm
9250896	PWM 200-24	24 V	199.2 W	3inl	195 x 68 x 39.5 mm M
9250897	PWM 200-24DA2	24 V	199.2 W	DALI2	196 x 68 x 39.5 mm

3in1 | Regulación 0-10V, resistencia o PWM 10V / 0-10V, resistance or PWM 10V dimming Tira

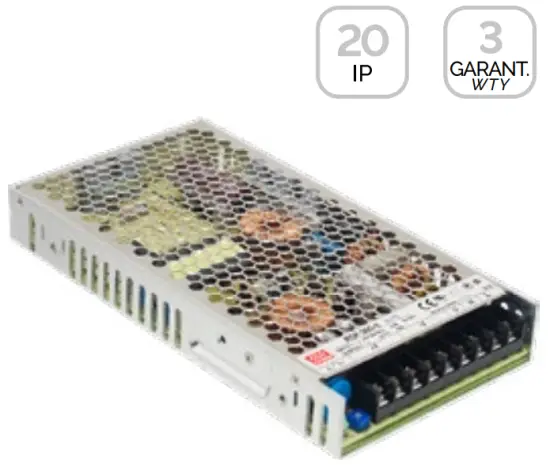

TSL RSP Family Industrial

Code	Model	Voltage	Power	Dimm.	Dimensions
9250072	RSP 200-12	12 V	200,4 W	NO	215 x 115 x 30 mm
9250117	RSP 320-12	12 V	320,4 W	NO	215 x 115 x 30 mm
9250073	RSP 200-24	24 V	201,6 W	NO	215 x 115 x 30 mm
9250074	RSP 320-24	24 V	321,6 W	NO	215 x 115 x 30 mm
9250314	RSP 500-24	24 V	500,4 W	NO	230 x 127 x 40,5 mm W
