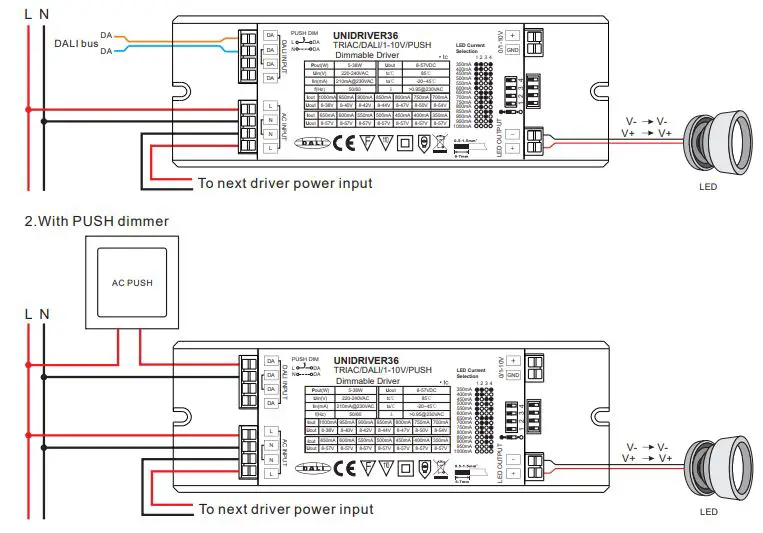

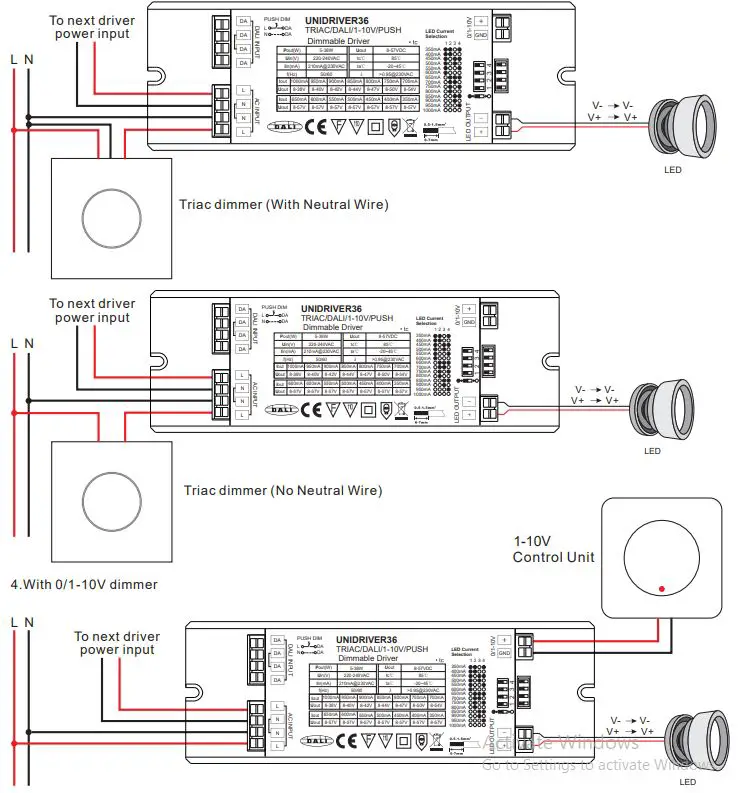

5 Wiring Diagram

6 Documents / Resources

7 Related Posts

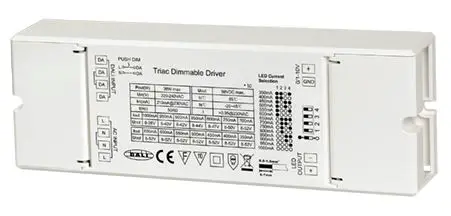

integratech UNIDRIVER36 Unidriver Met Amplitude Dimming

Important
: Read All Instructions Prior to Installation

Function introduction

Dimmable LED driver with DALI/Push/Triac/1-10V dimming interfaces
In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
Built-in DALI-2 interface, DALI DT6 device
1 channel constant current output, max. output power 38W
Output current 350-1000mA selectable by DIP switch
Enables to control single color LED lighting
Class Ⅱ power supply, full isolated plastic case
High power factor and efficiency
Compatible with universal DALI masters that support DT6 commands
Compatible with universal Triac dimmers
Compatible with universal 0/1-10V dimmers
Amplitude dimming (PWM dimming under 10%), deep and smooth dimming to 0.1%, flicker free
IP20 rating, suitable for indoor LED lighting applications
5 years warranty

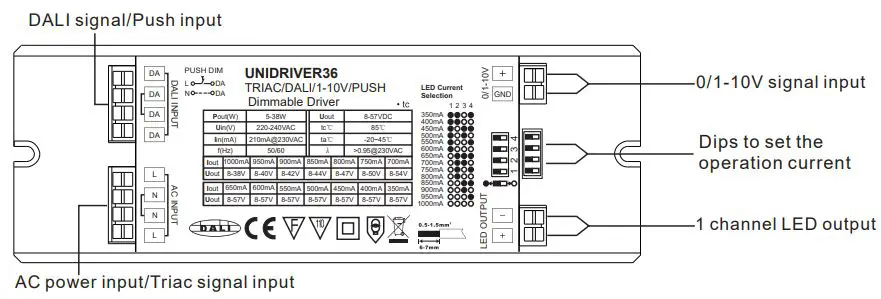

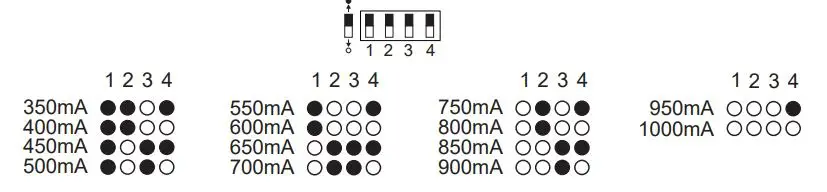

Dips to set the operation current

!! Always switch off the power before changing the dip switches !!

Settings for Integratech QT/QTU/BRIGHT panel series

30W:750mA
36W:900mA

Settings for Integratech MANGA U panel series

30W:750mA
36W:900mA
38W:1000mA
Toolless connection range: 0,75~2,5 mm²

Product Data

Output	LED Channel	1
	Selectable Current	350mA	400mA	450mA	500mA	550mA	600mA	650mA
	DC Voltage Range	8-57V	8-57V	8-57V	8-57V	8-57V	8-57V	8-57V
	Selectable Current	700mA	750mA	800mA	850mA	900mA	950mA	1000mA
	DC Voltage Range	8-54V	8-50V	8-47V	8-44V	8-42V	8-40V	8-38V
	Current Accuracy	±3%
	Rated Power	5-38W
Input	Voltage Range	220-240V AC
	Frequency	50/60Hz
	Power Factor (Typ.)	>0.95
	Efficiency (Typ.)	> 85% @ 230VAC
	Input Current	210mA @ 230VAC
	Inrush Current (Typ.)	COLD START Max. 2A @ 230VAC
Control	Dimming Interface	DALI (DALI consumption<2mA)/Push+Triac+0/1-10V
	Dimming Range	0.1%-100%
	Dimming Method	Amplitude dimming (PWM dimming under 10%)
Protection	Short Circuit	Yes, auto recovery after fault removed
	Over Current	Yes, auto recovery after fault removed
	Over Temperature	Yes, auto recovery after fault removed

Environment	Working Temp.	-20℃ ~ +45℃
	Max. Case Temp.	85℃ (Ta=45℃)
	Working Humidity	10% ~ 95% RH non-condensing
	Storage Temp. & Humidity	-40℃ ~ +80℃, 10% ~ 95% RH
Safety&EMC	Safety Standards	EN61347-1, EN61347-2-13
	Withstand Voltage	I/P-O/P: 3.75KVAC
	EMC Emission	EN55015, EN61000-3-2, EN61000-3-3
	EMC Immunity	EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV
Others	MTBF	188600H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature

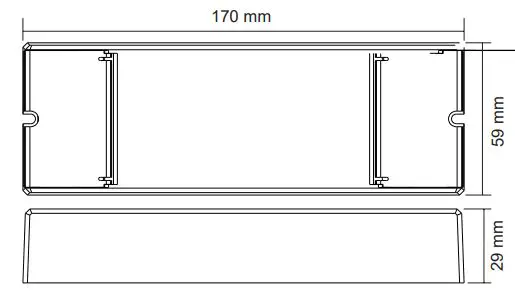

Others	Dimension	1705929mm (LWH)

Operation

Dimming Interface Selection

The LED driver supports 4 kinds of dimming input: DALI, Push, Triac, 0/1-10V.
Please select any of the 4 dimming interfaces to wire each time.
To connect a new dimming interface, previously connected dimming interface must be disconnected.
DO NOT connect more than 2 (including 2) dimming interfaces simultaneously.

DALI Address Assigned by DALI Masters
While connected with DALI interface, 1 DALI address can be assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.

PUSH Dimmer Mode
While connected with a AC PUSH, the driver will be in Push Dimmer Mode, operations under Push Dimmer Mode are as follows:

Click the button to switch ON/OFF
Press and hold down the button to increase or decrease light intensity to desired level and release it, then repeat the operation to adjust light intensity to opposite direction. The dimming range is from 1% to 100%.
Memory function after power off or power failure enables the device to memorize the status before power off while power on again.

Triac Dimming Input
While connected with a Triac dimmer, different Triac dimmers from different suppliers may have different minimum dimming levels which the driver can not be dimmed below. To dim to 1%, please make sure the dimmer supports 1% minimum dimming level.
