]SUNRICHER 12W DALI DT8 LED Driver
Important: Read All Instructions Prior to Installation

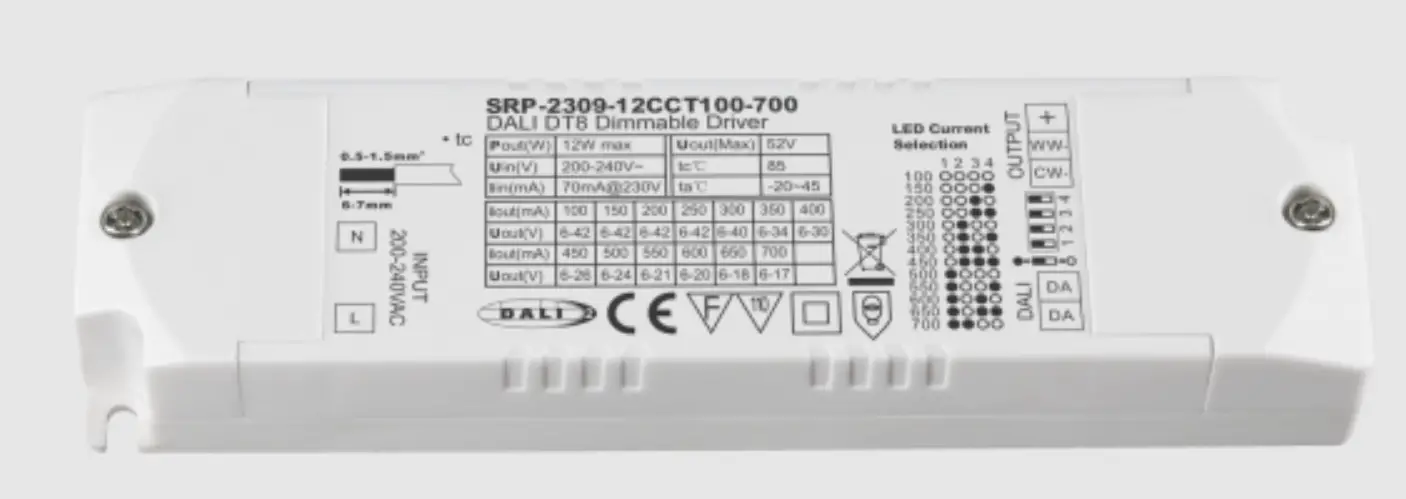

Function introduction

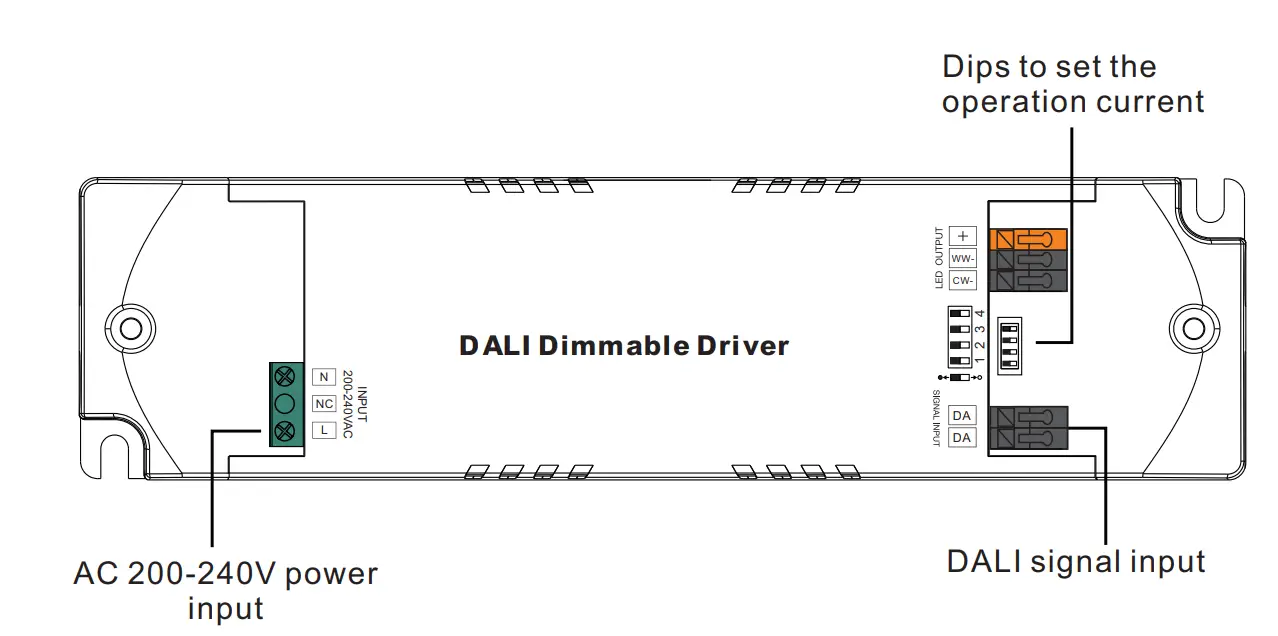

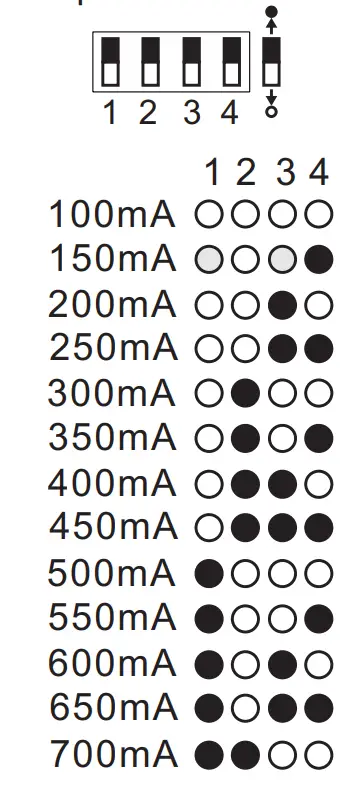

Dips to set the operation current
Product Data
|
Output | LED Channel | 2 | |||||||
| DC Voltage | 100mA | 150mA | 200mA | 250mA | 300mA | 350mA | 400mA | 450mA | |
| 6-52V | 6-52V | 6-52V | 6-48V | 6-40V | 6-34V | 6-30V | 6-26V | ||
| Current | 500mA | 550mA | 600mA | 650mA | 700mA | ||||
| 6-24V | 6-21V | 6-20V | 6-18V | 6-17V | |||||
| Current Accuracy | ±3% | ||||||||
| Rated Power | Max. 12W | ||||||||
|
Input | Voltage Range | 200-240V AC | |||||||
| Frequency Range | 50/60Hz | ||||||||
| Power Factor (Typ.) | > 0.95 @ 230VAC Full load | ||||||||
| Total Harmonic Distortion | THD ≤ 12% (@ full load / 230VAC) | ||||||||
| Efficiency (Typ.) | ＞80% @ 230VAC full load | ||||||||
| AC Current (Typ.) | 0.07A @ 230VAC | ||||||||
| Inrush Current (Typ.) | COLD START max. 2A at 230VAC | ||||||||
| Leakage Current | < 0.5mA /230VAC | ||||||||
| Standby Power Consumption | ＜0.5W | ||||||||
| Anti Surge | L-N:0.5KV | ||||||||
|
Control | Dimming Interface | DALI Device Type 8 (DALI consumption < 2mA) | |||||||
| Dimming Range | 0.1%-100% | ||||||||
|
Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Over Current | Yes, recovers automatically after fault condition is removed | |
| Over Temperature | Yes, recovers automatically after temperature drop | |
|
Environment | Working Temp. | -25℃ ~ +45℃ |
| Max. Case Temp. | TC=85℃ (Ta=”45℃”) | |
| Working Humidity | 10% ~ 95% RH non-condensing | |
| Storage Temp. & Humidity | -40℃ ~ +80℃, 10% ~ 95% RH | |
|
Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| EMC Emission | En55015, EN61000-3-2, EN61000-3-3 | |
| EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 | |
|
Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Dimension | 135x35x20mm (L*W*H) | |
| Warranty | 5 Years |
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.IEC 62386-209:2011
- Dimmable LED driver. Max. output power 12W
- PWM dimming, smooth and deep dimming
- IP20 rating, suitable for indoor LED lighting applications
- High power factor and efficiency
- Built-in DALI-2/Push interface, DALI DT8 device
- 5 years warranty
- To switch and dim Tunable White LED lighting fixtures
- Compatible with universal DALI masters that support DT8 commands
- Error report function
- 2 channel 100~700mA constant current output, select by DIP switch
- Class Ⅱ power supply, full isolated plastic case
Safety & Warnings
- DO NOT install with power applied to the device.
- DO NOT expose the device to moisture.
Operation
DALI Address
- DALI address for 2 channels output are assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
Wiring Diagram

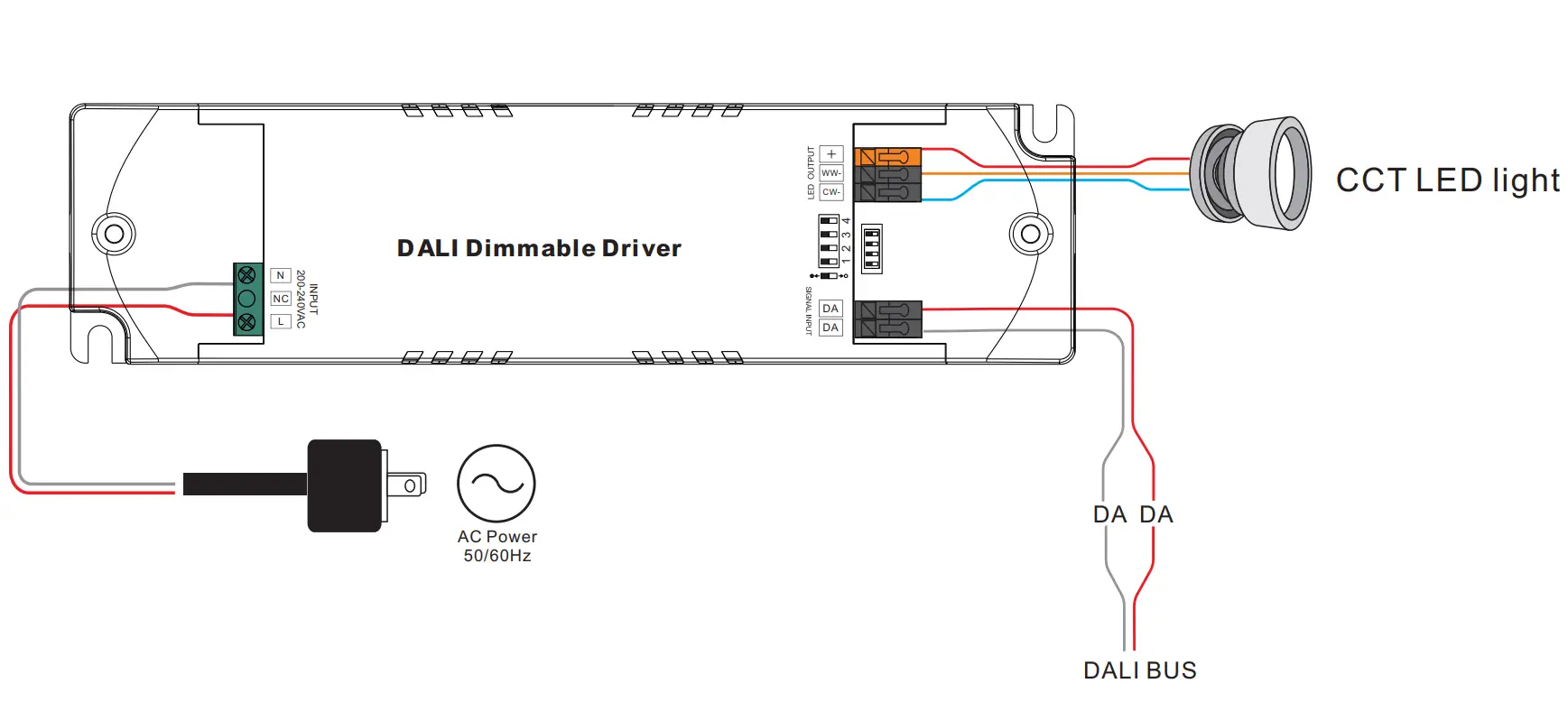

With DALI bus

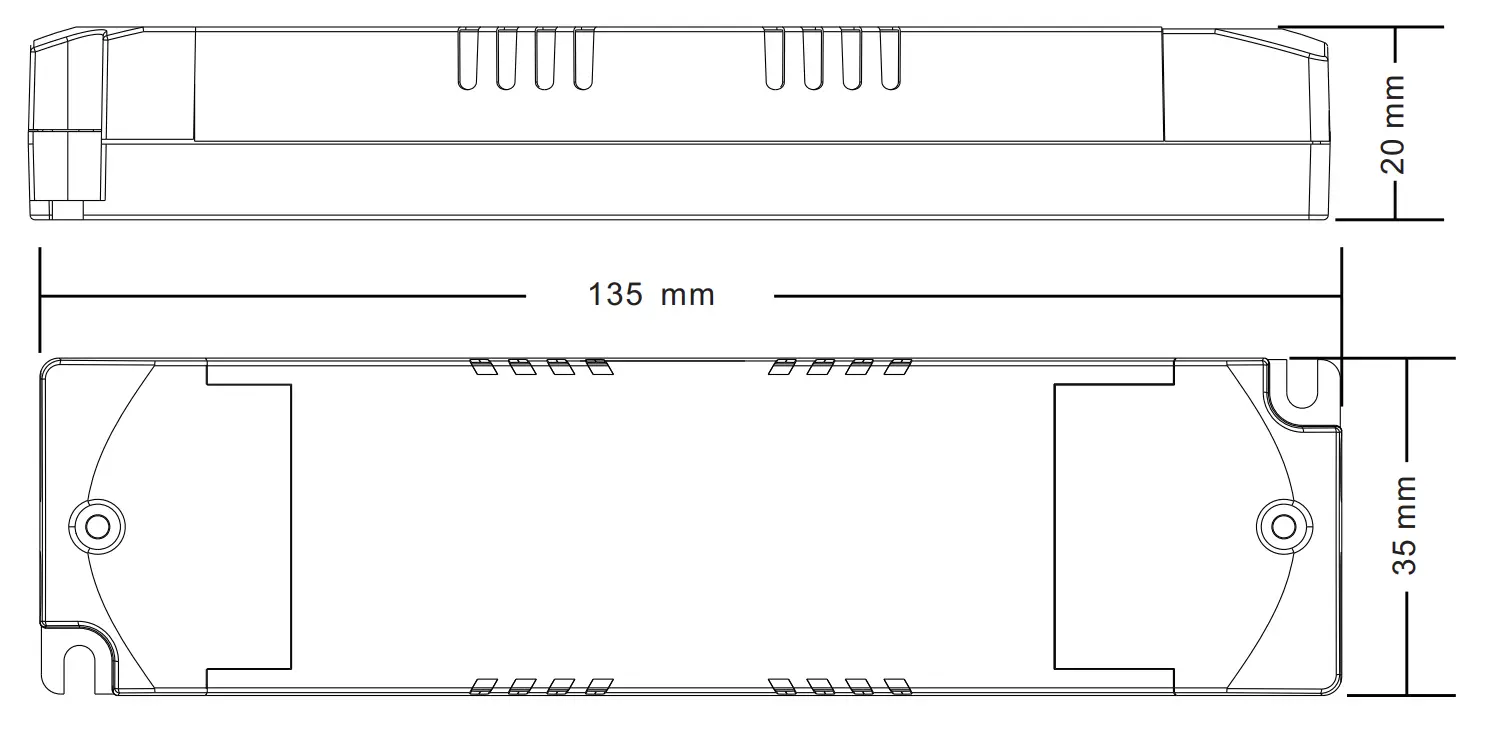

Product Dimension
