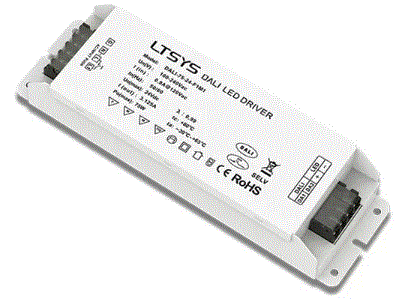

oneLIGHT 89100VLL Dali and Push To Dim Dimmable Driver
89 IOOVLL
DALI wiring diagram

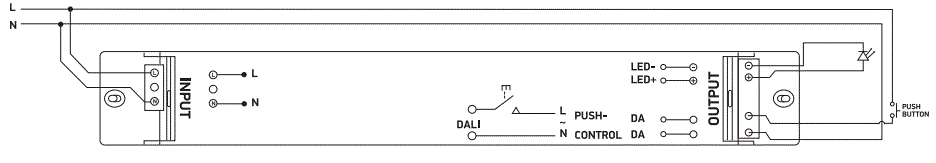

Push to Dim wiring diagram
NOTE:
- Short Push ON/OFF.
- Long push Dimming up or down.
SYCHRONIZATION:
Up to 15pcs LED drivers can be connected to the same push button. This means there is no need for any additional sync cables in large installations, where many drivers should be controlled by one push button. If more than one driver is connected to the same push button, in order to achieve synchronization, the following action is required: Press and hold switch for more than 15s. Fixtures will DIM / Switch OFF and restart.
Warnings:
- Make sure that the product is installed properly before connecting to electricity.
- Maintenance and installation should only be carried out by a professional electrician.
