Installationmanual DIM50-24
Installation Guide
DIM50-24 Dimbart Drivdon 50W 24VDC LED Driver
Warning!
High voltage. Risk of electric shock. The installation should only be carried out by an authorised electrician.
Technical data
| Art. number | V-36D1102-050Y |
| Input voltage | 220V-240V |
| Input frequency | 50Hz |
| Input current | <0.3A |
| Input power | <60W |
| Efficiency | ≥85% |
| Maximum in-rush current | 1A (210µs) |
| Inrush current | <75A |
| Output voltage and precision | 24V±5% |
| Output current range | 0.8-2.08A |
| Dimming mode | Leading edge-/trailing edge dimming |
| Dimming range | 20%-90% |
| Power factor | ≥0.9 |
| Operation temp | -20-45°C |
| Relative humidity | 15%-90% |
| Max case temp | 85°C |
| Lifetime | 30 000Hours |
| Working noise | <35dB |
| Size | 177X57.8X21.8mm |
| Case material | Plastic |
| Insulation class | Class II |
| IP grade | IP20 |
| Input cables dimension | 2X0.75mm2 |
| Output cables dimension | 2X0.75mm2 |
| Output cables length | 2m Max |
| Certifications | IEC61347-1, IEC61347-2-13 EN61000-3-2 Class C, EN55015, EN61547 |
Installationmanual

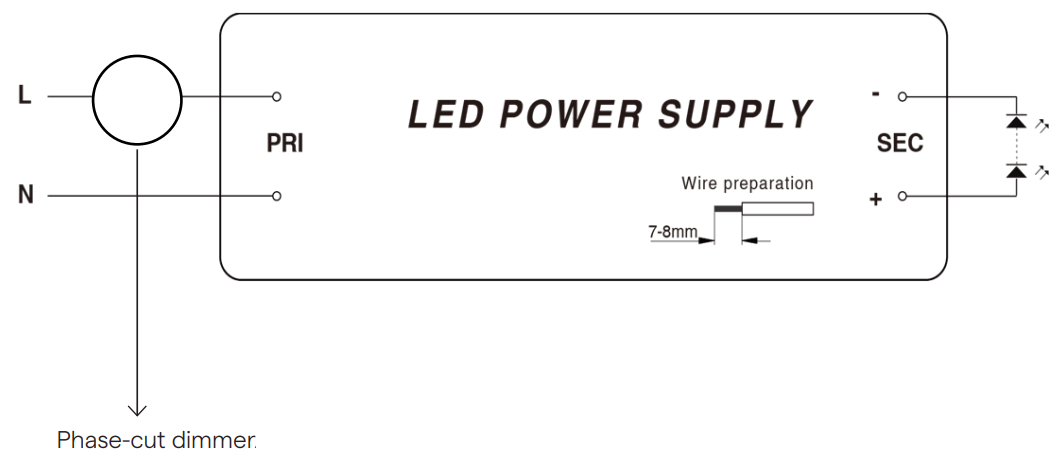

Wiring diagram

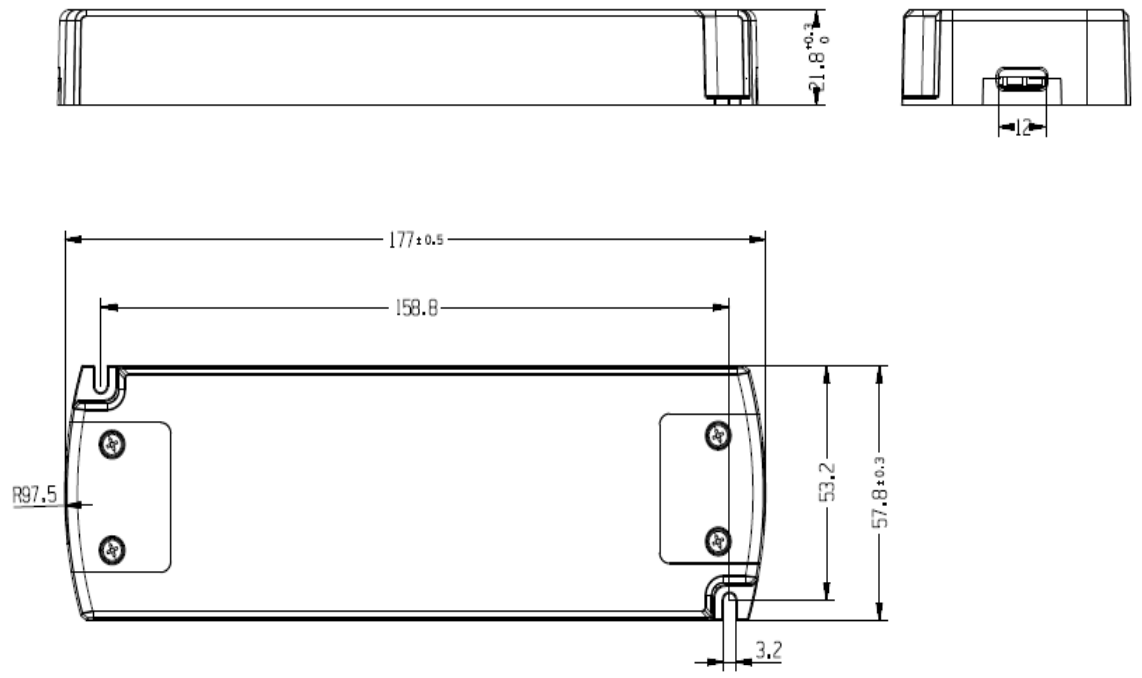

Dimensions
