Installation manual
DIM150-12
DIM150-12 Dimbart Drivdon
Warning!
High voltage. Risk of electric shock. The installation should only be carried out by an authorised electrician.
Technical data
| Art. number | V-36D1101-150Y |
| Input voltage | 220V-240V |
| Input frequency | 50Hz |
| Input current | <1A |
| Input power | <150W |
| Stand-by power | 1,81W |
| Efficiency | ≥89% |
| Maximum in-rush current | 73A (900µs) |
| Inrush current | <75A |
| Output voltage and precision | 12V±5% <13V |
| Output current range | 4-11A 48-132W |
| Dimming mode | Leading edge-/trailing edge dimming |
| Dimming range | 10%-100% |
| Power factor | ≥0.9 |
| Output voltage wave | <500mV Vp-p |
| Operation temp | -20-45°C |
| Relative humidity | 45%-85% |
| Max case temp | 90°C |
| Lifetime | 30 000Hours |
| Working noise | <35dB |
| Size | 195×67.1×31.2mm |
| Case material | Plastic |
| Insulation class | Class II |
| IP grade | IP20 |
| Input cables dimension | 2×1.0mm² |
| Output cables dimension | 2×1.0mm² x2 |
| Certifications | IEC61347-1, IEC61347-2-13 (with lamps IEC60598) IEC61000-3-2, IEC55015, IEC61547 |

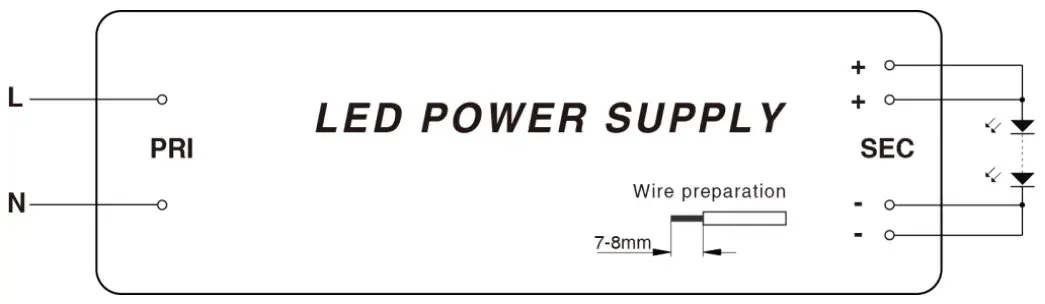

Wiring diagram

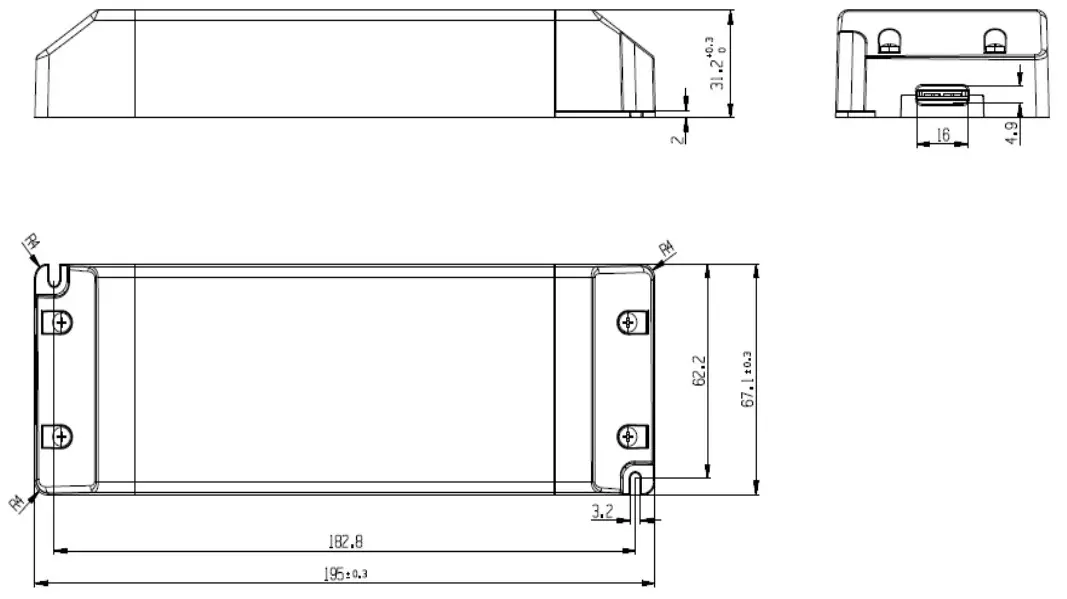

Dimensions
