ULINE H-1482 Deluxe Steel Tensioner

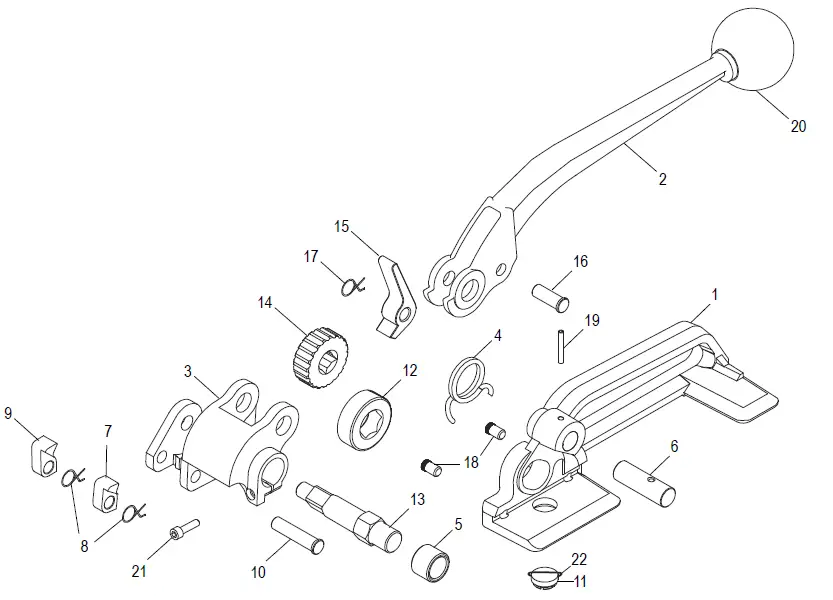

Parts
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Base | 1 | ———– | 650501 |
| 2 | Handle | 1 | ———– | 650502 |
| 3 | Cradle | 1 | H-1482-CRDL | 650503 |
| 4 | Tension Spring | 1 | H-1482-TNSPR | 650504 |
| 5 | Bearing | 1 | H-1482-BEAR | 650506 |
| 6 | Pivot Pin | 1 | ———– | 650507 |
| 7 | Short Holding Pawl | 1 | H-1482-50508 | 650508 |
| 8 | Spring, Holding Pawl | 1 | H-1482-50509 | 650509 |
| 9 | Long Holding Pawl | 1 | H-1482-50510 | 650510 |
| 10 | Holding Pawl Pivot Pin | 1 | H-1482-50511 | 650511 |
| 11 | Base Plug | 1 | H-1482-BPLUG | 650512 |
| 12 | Feedwheel | 1 | H-1482-WHEEL | 650513 |
| 13 | Drive Shaft | 1 | H-1482-13 | 650514 |
| 14 | Ratchet Wheel | 1 | H-1482-RWHL | 650515 |
| 15 | Drive Pawl | 1 | H-1482-DPAWL | 650516 |
| 16 | Drive Pawl Pin | 1 | H-1482-DP517 | 650517 |
| 17 | Drive Pawl Spring | 1 | H-1482-SPRNG | 650518 |
| 18 | Guide Pins | 2 | ———– | 650519 |
| 19 | Spring Pin | 1 | ———– | D23940F |
| 20 | Ball Grip | 1 | ———– | 660907 |
| 21 | Socket Head Cap Screw | 1 | ———– | 650523 |
| 22 | Wire Retainer | 1 | H-1482-RETAN | 650522 |
