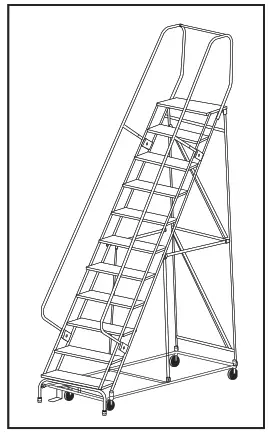

H-842U-10, H-844U-10, H-1084U-10, H-1085U-10
8-11 STEP ROLLING SAFETY LADDERS
10″ DEEP TOP STEP
1-800-295-5510
uline.com
NOTE: Ladders shipping to California with a platform height over 48″ will include a 42″ handrail to comply with OSHA regulations.

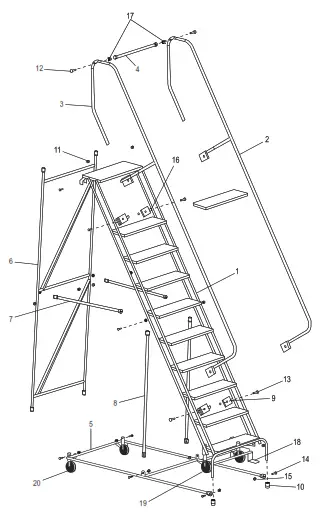

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Stile for H-1084U-10 | 1 | ———— | AS1089 |
| 1 | Stile for H-842U-10 | 1 | ———— | AS1091 |
| 1 | Stile for H-1085U-10 | 1 | ———— | AS1093 |
| 1 | Stile for H-844U-10 | 1 | ———— | AS1095 |
| 2 | Handrail Right for H-1084U-10 | 1 | ———— | SU1392 |
| H-1084-CART* | SU1739* | |||
| 2 | Handrail Right for H-842U-10 | 1 | ———— | SU1393 |
| ———— | SU1741* | |||
| 2 | Handrail Right for H-1085U-10 | 1 | ———— | SU1394 |
| ———— | SU1743* | |||
| 2 | Handrail Right for H-844U-10 | 1 | ———— | SU1395 |
| ———— | SU1745* | |||
| 3 | Handrail Left for H-1084U-10 | 1 | ———— | SU1440 |
| H-1084-CALFT* | SU1738* | |||
| 3 | Handrail Left for H-842U-10 | 1 | ———— | SU1441 |
| ———— | SU1740* | |||
| 3 | Handrail Left for H-1085U-10 | 1 | ———— | SU1442 |
| ———— | SU1742* | |||
| 3 | Handrail Left for H-844U-10 | 1 | ———— | SU1443 |
| ———— | SU1744* | |||
| 4 | No. 3 Bar | 1 | H-843-4 | SU1460 |
| 2* | ||||
| 5 | Base Panel for H-1084U-10 | 1 | H-1084-BSPNL | SU1384 |
| 5 | Base Panel for H-842U-10 | 1 | H-842BASE | SU1385 |
| 5 | Base Panel for H-1085U-10 | 1 | H-1085U-10BS | SU1386 |
| H-1085-10BSC* | SU1989* | |||
| 5 | Base Panel for H-844U-10 | 1 | H-844-BASE | SU1387 |
| H-844CALBASE* | SU1991* | |||
| 6 | Back Panel for H-1084U-10 | 1 | H-1084-BKPNL | SU1374 |
| 6 | Back Panel for H-842U-10 | 1 | H-842U-BKPNL | SU1375 |
| 6 | Back Panel for H-1085U-10 | 1 | H-1085-BKPNL | SU1376 |
| H-1085-CAPNL* | SU1988* | |||
| 6 | Back Panel for H-844U-10 | 1 | H-844U-BKPNL | SU1377 |
| ———— | SU1990* | |||
| 7 | Horizontal Brace for H-1084U-10 | 2 | ———— | ST6664 |
| 7 | Horizontal Brace for H-842U-10 | 2 | ———— | ST6665 |
| 7 | Horizontal Brace for H-1085U-10 | 2 | H-1085-HBRCE | ST6666 |
| 7 | Horizontal Brace for H-844U-10 | 2 | H-844-HB | ST6667 |
| 8 | Vertical Brace for H-1084U-10, H-842U-10 | 2 | H-842U-VERT | ST6616 |
| 1 | Stile for H-1084U-10 | 1 | ———— | AS1089 |
| 1 | Stile for H-842U-10 | 1 | ———— | AS1091 |
| 1 | Stile for H-1085U-10 | 1 | ———— | AS1093 |
| 1 | Stile for H-844U-10 | 1 | ———— | AS1095 |
| 2 | Handrail Right for H-1084U-10 | 1 | H-1084-CART* ———— | SU1392 SU1739* |
| 2 | Handrail Right for H-842U-10 | 1 | ———— ———— | SU1393 SU1741* |
| 2 | Handrail Right for H-1085U-10 | 1 | ———— ———— | SU1394 SU1743* |
| 2 | Handrail Right for H-844U-10 | 1 | ———— ———— | SU1395 SU1745* |
| 3 | Handrail Left for H-1084U-10 | 1 | ———— H-1084-CALFT* | SU1440 SU1738* |
| 3 | Handrail Left for H-842U-10 | 1 | ———— ———— | SU1441 SU1740* |
| 3 | Handrail Left for H-1085U-10 | 1 | ———— ———— | SU1442 SU1742* |
| 3 | Handrail Left for H-844U-10 | 1 | ———— ———— | SU1443 SU1744* |
| 4 | No. 3 Bar | 1 | H-843-4 | SU1460 |
| 2* | ||||
| 5 | Base Panel for H-1084U-10 | 1 | H-1084-BSPNL | SU1384 |
| 5 | Base Panel for H-842U-10 | 1 | H-842BASE | SU1385 |
| 5 | Base Panel for H-1085U-10 | 1 | H-1085U-10BS | SU1386 |
| H-1085-10BSC* | SU1989* | |||
| 5 | Base Panel for H-844U-10 | 1 | H-844-BASE | SU1387 |
| H-844CALBASE* | SU1991* | |||
| 6 | Back Panel for H-1084U-10 | 1 | H-1084-BKPNL | SU1374 |
| 6 | Back Panel for H-842U-10 | 1 | H-842U-BKPNL | SU1375 |
| 6 | Back Panel for H-1085U-10 | 1 | H-1085-BKPNL | SU1376 |
| H-1085-CAPNL* | SU1988* | |||
| 6 | Back Panel for H-844U-10 | 1 | H-844U-BKPNL | SU1377 |
| ———— | SU1990* | |||
| 7 | Horizontal Brace for H-1084U-10 | 2 | ———— | ST6664 |
| 7 | Horizontal Brace for H-842U-10 | 2 | ———— | ST6665 |
| 7 | Horizontal Brace for H-1085U-10 | 2 | H-1085-HBRCE | ST6666 |
| 7 | Horizontal Brace for H-844U-10 | 2 | H-844-HB | ST6667 |
| 8 | Vertical Brace for H-1084U-10, H-842U-10 | 2 | H-842U-VERT | ST6616 |
| 8 | Vertical Brace for H-1085U-10, H-844U-10 | 2 | H-1085-10VDB | ST6661 |
| 9 | Handrail Bracket | 4 | H-844-SF4500 | SF4500 |
| 10 | Rubber Feet | 2 | H-840-RBFEET | A-301-0304 |
| Rubber Pad | 2 | H-1555-PAD* | SU9703* | |
| 11 | Cap Plug | 2 | ———— | A-301-0428 |
| 12 | 1/4-20 x 2⁄” Hex Head Bolt | 2 | ———— | ———— |
| 4* | ||||
| 13 | 3/8-16 x 2″ Hex Head Bolt | 4 | ———— | ———— |
| 14 | 3/8-16 x 1⁄” Hex Head Bolt | 12 | ———— | ———— |
| 15 | 3/8-16 Hex Nut | 16 | ———— | ———— |
| 16 | Gray Bushing | 4 | ———— | ———— |
| 17 | Notched Bushing | 2 | ———— | ———— |
| 4* | ||||
| 18 | Safelock Truck | 1 | H-842-LOCK | SU1096 |
| 19 | Swivel Caster Kit | 2 | H-844-SWIVEL | SU9707 |
| 20 | Rigid Caster Kit | 2 | H-842-CASTER | SU1070 |
| Replacement Hardware Kit Includes: • 1/4-20 x 2⁄” Hex Head Bolt #12 (2) • 3/8-16 x 2″ Hex Head Bolt #13 (4) • 3/8-16 x 1⁄” Hex Head Bolt #14 (12) • 3/8-16 Hex Nut #15 (16) • Gray Bushing #16 (4) • Notched Bushing #17 (2) |
1 |
H-4768 |
HW1003 | |
| Replacement Hardware Kit for CA OSHA Includes:• 1/4-20 x 2⁄” Hex Head Bolt #12 (2) • Notched Bushing #17 (2) | 1 | H-4771* | HW1007* | |

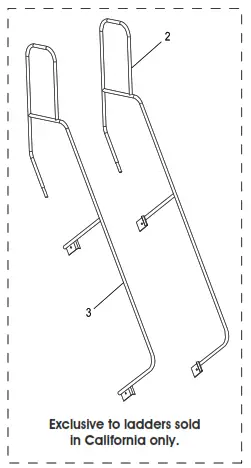

*PARTS ARE EXCLUSIVE TO LADDERS SOLD IN CALIFORNIA
