Uline H-842u-30, H-844-30, H-1084u-30, H-1085u-30 8-11 Step Rolling Safety Ladder Installation Guide

#

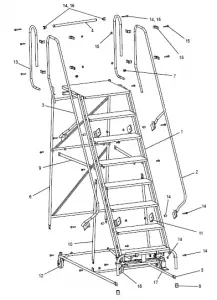

DESCRIPTION

QTY.

ULINE PART NO.

MFG. PART NO.

1

Stile for H-1084U-30

1

————

AS1722

1

Stile for H-842U-30

1

————

AS1724

1

Stile for H-1085U-30

1

————

AS1726

1

Stile for H-844-30

1

————

AS1728

2

Handrail Right for H-1084U-30

1

H-1084U-HAND
H-1084-CART*

SU1392
SU1739*

2

Handrail Right for H-842U-30

1

————

————

SU1393
SU1741*

2

Handrail Right for H-1085U-30

1

H-1085U-1394

————

SU1394
SU1743*

2

Handrail Right for H-844-30

1

H-844U-RHR

————

SU1395
SU1745*

3

Handrail Left for H-1084U-30

1

————

H-1084-CALFT*

SU1440
SU1738*

3

Handrail Left for H-842U-30

1

————
————

SU1441
SU1740*

3

Handrail Left for H-1085U-30

1

H-1085U-1442
————

SU1442
SU1742*

3

Handrail Left for H-844-30

1

H-844-LHR
H-843U-20-ST*

SU1443SU1744*

4

No. 3 Bar

1

H-843-4

SU1460

2*

5

Base Panel for H-1084U-30

1

————

SU2143

5

Base Panel for H-842U-30

1

H-842U-30-BP

SU2141

5

Base Panel for H-1085U-30

1

H-1085U-30BS
————

SU2147
SU2254*

5

Base Panel for H-844-30

1

H-844-30BP
H-844-30CABS*

SU1423
SU2255*

6

Back Panel for H-1084U-30

1

H-1084-BKPNL

SU1374

6

Back Panel for H-842U-30

1

H-842U-BKPNL

SU1375

6

Back Panel for H-1085U-30

1

H-1085-BKPNL
H-1085-CAPNL*

SU1376
SU1988*

6

Back Panel for H-844-30

1

H-844U-BKPNL
H-844-30CABK*

SU1377
SU1990*

7

Cap Plug

2

H-1554-9

A-301-0428

8

Rubber Feet

Rubber Pads

2

H-840-RBFEET
H-1555-PAD*

A-301-0304
SU9703*

9

Horizontal Brace for H-1084U-30

2

————

ST6669

#

DESCRIPTION

QTY.

ULINE PART NO.

MFG. PART NO.

9

Horizontal Brace for H-842U-30

2

————

ST6671

9

Horizontal Brace for H-1085U-30

2

H-1085-HBRC

ST6558

9

Horizontal Brace for H-844-30

2

————

ST6535

10

Vertical Brace for H-842U-30, H-1084U-30

2

H-842U-VERT

ST6616

10

Vertical Brace for H-844-30, H-1085U-30

2

H-1085-10VDB

ST6661

11

Handrail Bracket

4

H-844-SF4500

SF4500

12

Rigid Caster Kit

2

H-842-CASTER

SU1070

13

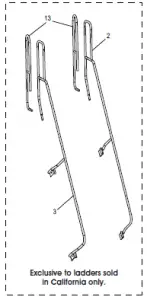

Guardrail Extension Panel

2

————

SU1766

14

Replacement Hardware Kit

Includes:

 • 1/4-20 x 2⁄” Hex Head Bolt (2)

 • 3/8-16 x 2″ Hex Head Bolt (4)

 • 3/8-16 x 1⁄” Hex Head Bolt (12)

 • 3/8-16 Hex Nut (16)

 • Gray Bushing (4)

 • Notched Bushing (2)

1

H-4768

HW1002

15

Replacement Hardware Kit for Guardrail Extension Includes:

 • 3/8-16 x 2″ Hex Head Bolt (4)

 • 3/8-16 Hex Nut (4)

 • Guardrail Extension Bracket (8)

1

H-4770

HW1006

16

Replacement Hardware Kit for CA OSHA

Includes:

 • 1/4-20 x 2⁄” Hex Head Bolt (2)

 • Notched Bushing (2)

1

H-4771*

HW1007*

17

Safelock Truck

1

H-842-LOCK

SU1096

18

Swivel Caster Kit

2

H-844-SWIVEL

SU9707
