H-1067

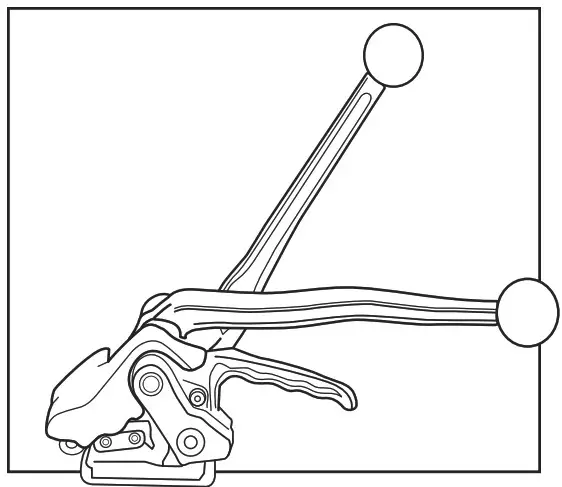

MANUAL STEEL SEALLESS TOOL
1-800-295-5510
uline.com

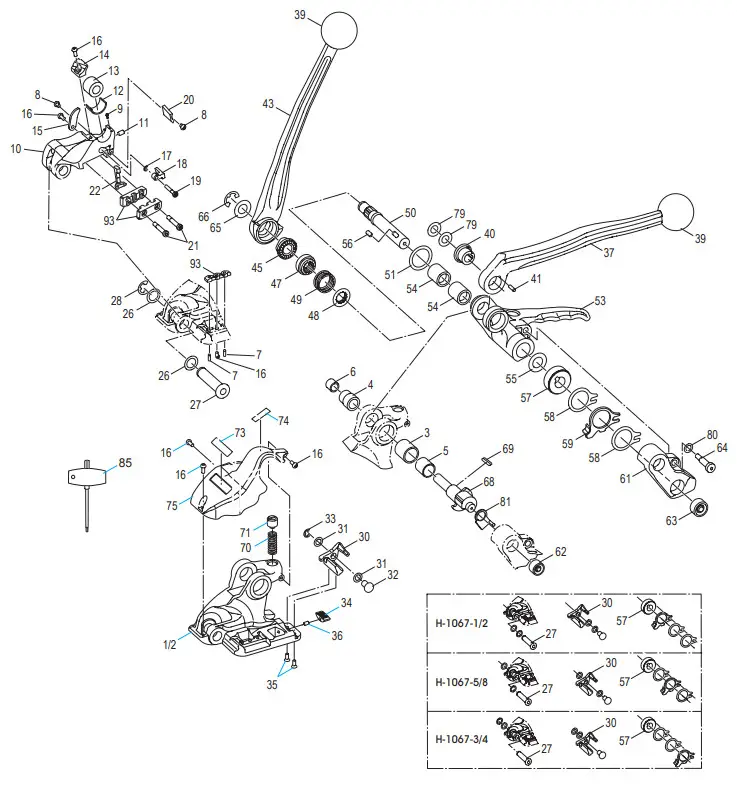

| No. | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Base Plate Complete. Incl. Pos. 2-7 | 1 | 14-1067-BASE | 1831.011.038 |
| 2 | Base Plate | 1 | 1831.011.036 | |
| 3 | Bushing | 1 | 14-1067-03 | 1821.020.094 |
| 4 | Bushing | 1 | 14-1067-04 | 1821.020.095 |
| 5 | Slide Bearing | 1 | 14-1067-#5 | 1935.520.203 |
| 6 | Slide Bearing | 1 | 14-1067-06 | 1935.514.253 |
| 7 | Cylinder Pin | 2 | H-1067-5/8CY | 1921.303.100 |
| 8 | Round Head Screw | 2 | H-1067-A8 | 1912.104.068 |
| 9 | Hammer-Head Bolt | 1 | 14-1067-09 | 1821.039.023 |
| 10 | Sealing Pod Complete. Incl. Pos. 931.12 | 1 | H-1067-#10 | 1831.022.017 |
| 11 | Bushing | 1 | 1821.020.090 | |
| 12 | Bearing Support | 1 | H-1067-012 | 1831.022.036 |
| 13 | Pressure Roller | 1 | H-1067-13 | 1831.022.025 |
| 14 | Cover | 1 | H-1067-#14 | 1831.022.027 |
| 15 | Carder | 1 | 14-1067-TOP | 1831.022.026 |
| 16 | Round Head Screw | 5 | H-1067-5/8SC | 1912.104.108 |
| 17 | Lock Washer | 1 | H-2386-LOCK | 1920.103.062 |
| 18 | Wedge | 1 | H-1067-#18 | 1800.000.908 |
| 19 | Special Screw | 1 | H-1067-022 | 1821.027.022 |
| 20 | Cutler Knife | 1 | H-1067-CUTT | 1821.208.015 |
| 21 | Special Screw | 2 | 14-1067-SCREW | 1821.027.021 |
| 22 | Rehm Hock | 1 | 14-1067-3/4RH | 1800.000.911 |
| 26 | Spacer Disk | 2 | H-1067-.5SPO | 1821.020.086 |
| 27 | Bolt | 1 | H-1067-BOLT | 1821.033.020 |
| 28 | Lock Washer | 1 | 14-771-1920 | 1920.110.122 |
| 30 | Tension Plug Support | 1 | H-1067-30 | 1821.043.008 |
| 31 | Spacer Disk | 2 | H-1067-SANDISK | 1821.020.087 |
| 32 | Bolt | 1 | H-1067-BOLT1 | 1821.033.021 |
| 33 | Lock Washer | 1 | H-1067-LOCK | 1920.106.072 |
| 34 | Tension Plug, Incl. Pos. 36 | 1 | H-1067-1821 | 1821.043.007 |
| 35 | Counter Sunk Screw | 2 | 14-1067-1912 | 1912.204.108 |
| 36 | Spiral Pin | 1 | 14-1067-SPEN | 1921.401.061 |
| 37 | Sealing Lever Complete, Incl. Pos. 39-41 | 1 | H-1067-#37 | 1821.081.020 |
| 39 | Knob | 1 | 14-739-37 | 1820.080.051 |
