ULINE H-2378 Delux L-Bar Sealer User Guide

TOOL NEEDED

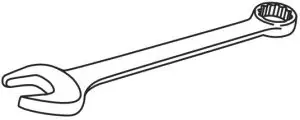

• 3/8″ (10 mm) Wrench


PARTS

1. Lock Washer x 4

2. Washer x 8

3. Nut x 4

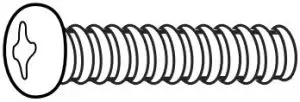

4. Screw x 4


OPERATING INSTRUCTIONS

Figure 1

ASSEMBLY

1. Attach film dispenser to film separator/worktable using hardware provided. (See Figure 1)
2. Place worktable to the right of the sealer. No hardware necessary.

OPERATION

1. On the film separator/worktable, attach the springs to the top roller on both sides.

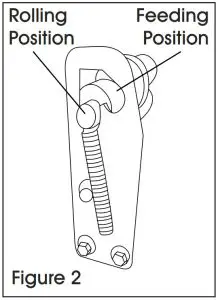

2. Set top roller to feeding position. (See Figure 2)

3. Feed film through the two rollers.
4. Move top roller down to rolling position with springs attached.
5. Turn on the power switch.
6. Start sealing timer at 3 and adjust setting as needed (thicker film will require higher setting).
7. Place the product on the worktable and adjust the position to the back or front of the worktable in accordance with the product size.
8. When the product is placed inside the film, move it across the left-hand side over the sealing wire.
   There should be 1/2 to 3/4″ clearance between the  product and sealing wire.
9. Press the handlebar down. Sealing time is approximately one second.

CHANGING PARTS

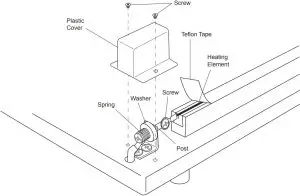

REPLACING HEATING ELEMENT WIRE

REMOVE PLUG FROM OUTLET BEFORE INSTALLATION

1. Remove plastic cover from front post.
2. Remove Teflon® tape.
3. Remove screw attaching heating element to post, located under plastic cap.
4. Remove heating element.
5. Remove rear top cover plate to expose rear post.
6. Attach new heating element to front post with screw.
7. Feed heating element through channel.
8. Use flat head screwdriver to compress spring on rear post.
9. Attach heating element to rear post.
10. Replace top cover.
11. Replace plastic cover on front post.
12. Place new Teflon® tape over sealing wire.

SPECIFICATIONS

HELPFUL INFORMATION

1.  Always keep the sealing platform clean. Particular care should be taken to remove any residue from the Teflon® tape.
2. Do not clean the sealing platform with anything wet while sealing machine is plugged into outlet.
3. It is important to replace the element wire with the one designed for this machine. Using different wires can damage the transformer.
4. Occasionally check the condition of the upper silicone rubber pads for wear or burns. A poor silicone rubber pad will affect the quality of the seal.

TROUBLESHOOTING

Contact Us

Phone: 1-800-295-5510
Web: uline.com
