ULINE Deluxe Poly Strapping Sealer Instructions

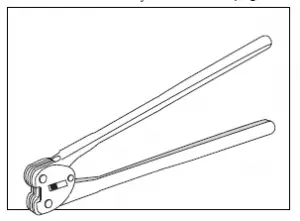

DELUXE POLY STRAPPING SEALER
DELUXE POLY STRAPPING SEALER

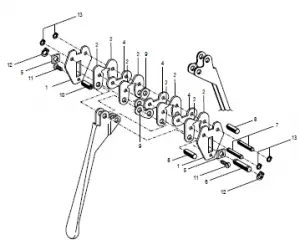

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Cover Plate (1/2″) | 2 | H-624-COVER | 2977.100.012 |
| 1 | Cover Plate (5/8″) | 2 | H-624-5/8PLT | 2977.100.013 |
| 2 | Jaw (1/2″) | 8 | H-624-1/2JAW | 2977.100.015 |
| 2 | Jaw (5/8″) | 8 | H-624-JAW | 2977.100.016 |
| 4 | Anvil (1/2″) | 3 | H-624-.5ANVL | 2977.100.021 |
| 4 | Anvil (5/8″) | 3 | H-624-ANVIL | 2977.100.022 |
| 5 | Guide Plate | 2 | H-624-GUIDE | 2977.100.027 |
| 6 | Shaft | 1 | H-779-SHAFT2 | 2977.100.029 |
| 7 | Shaft | 2 | H-624-SHAFT | 2977.100.028 |
| 8 | Bolt | 2 | H-624-BOLT | 2977.100.030 |
| 9 | Link | 2 | H-780-LINK | 2977.100.026 |
| 10 | Spacer Bushing | 1 | H-624BUSHING | 2977.100.033 |
| 11 | Flat Head Screw | 2 | H-780-12 | 1912.506.107 |
| 12 | Retaining Ring (5/8″) | 2 | H-624-RING | 1920.210.102 |
| 13 | Retaining Ring (1/2″) | 4 | H-780-RING | 1920.208.082 |
