REELCRAFT LogoOperating Instructions
Series PW7000 Spring Driven Hose Reels
High Pressure Wash Model Numbers:

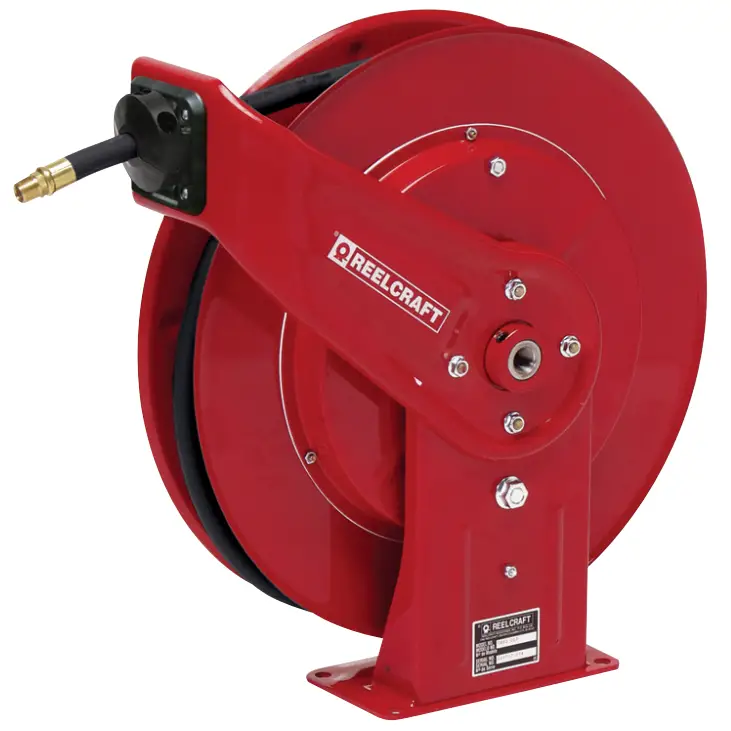

PW7600 OHP PW7650 OHPREELCRAFT PW7600 Series Spring Driven Hose Reels

IMPORTANT

Read this manual carefully before installing, operating or servicing this equipment.

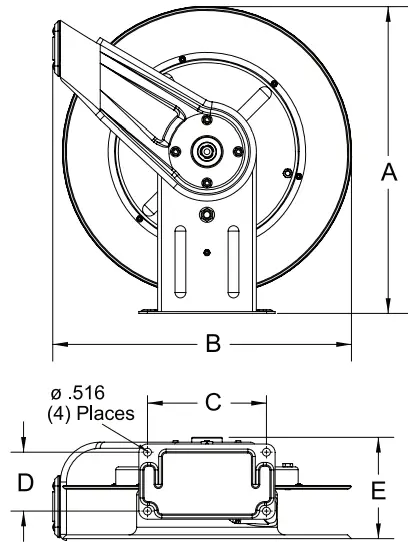

Dimensions

REELCRAFT PW7600 Series Spring Driven Hose Reels - Dimensions

A20 1/4”
B19 3/4”
C7 7/8”
D3 7/8”
E7 3/8”

SAFETY

Personal injury and/or equipment damage may result if proper safety precautions are not observed.

  • Ensure that reel is properly installed before connecting input and output hoses.
  • Bleed fluid/gas pressure from system before servicing reel.
  • Before connecting reel to supply line, ensure that pressure does not exceed maximum working pressure rating of reel.
  • Remember, even low pressure is very dangerous and can cause personal injury or death.
  • Be aware of machinery and personnel in work area.
  • If a leak occurs in the hose or reel, remove system pressure immediately.
  • A high tension spring assembly is contained within the reel.
    Exercise extreme caution.
  • Pull hose from reel by grasping the hose itself, not the control valve.
  • Ensure that reel, hose, and equipment being serviced are properly grounded. Use an ohmmeter to check ground continuity.
  • If reel ceases to unwind or rewind, remove system pressure immediately. Do not pull or jerk on hose!
  • Treat and respect the hose reel as any other piece of machinery, observing all common safety practices.

INSTALLATION INSTRUCTIONS MOUNTING

Caution: Unless reel was specified differently when ordering, maximum installation height is 16 feet. Do not exceed this distance.

  1. Unpack and inspect reel for damage. Turn by hand to check for smooth operation. Check for completeness.
  2. Configure reel for top, side or bottom-wind hose dispensing by removing nuts (1) securing guide arm bracket (2). Position guide arm bracket to desired location, and replace nuts.

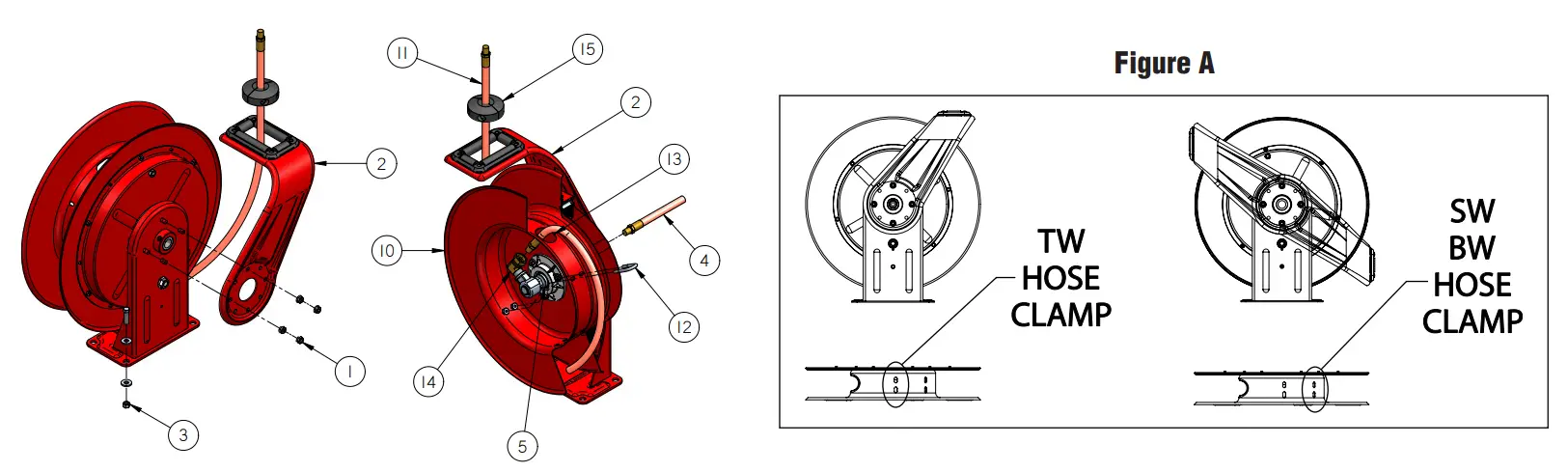

    Caution: When changing guide arm positions, the U-bolt must be placed in the proper location as instructed in figure A below. The reel can “latch out” during use if this
    instruction is not adhered to.
  3. Position reel on floor, wall, or ceiling. Secure into place using four (customer supplied) bolts (3).

INSTALLING THE INPUT HOSE(S)
Warning: Ensure that supply line pressure does not exceed maximum working pressure rating of reel. Apply pipe thread sealant to all threads.
Caution: Use flexible hose connection at input. Do not use rigid plumbing.

  1. Connect supply line hose (4) to main shaft input (5) as indicated in illustration.

INSTALLING THE OUTPUT HOSE(S)
Warning: Use extreme caution; reel under tension. Avoid releasing latch mechanism. Apply pipe thread sealant to all threads.

  1. Manually turn sheave (10) until spring is tight, back off 3 turns, then latch.
  2. Route output hose(s) (11) through guide arm bracket (2), U-bolts (12), then through cutout (13) in spool as indicated in illustration.
  3. Connect output hose(s) (11) to swivel (14) as indicated in illustration.
  4. Tighten U-bolts (12).
  5. Charge hose(s). Momentarily open control valve to purge hose(s) of gases. When fluid appears at control valve, close valve. With hose(s) fully charged, release latch and wind output hose(s) onto reel.

ADJUSTMENTS
Warning: Use extreme caution; reel under tension. Avoid releasing latch mechanism. If necessary, adjust spring tension on reel by adding or removing wraps of hose from spool, one wrap at a time, until desired tension is obtained. Add wraps to increase tension. Remove wraps to decrease tension.

SERVICE INSTRUCTIONS

User servicing of the reel is limited to replacing input/output hoses only. Refer all other repairs to an authorized service person or directly to Reelcraft. Failure to do so can result in personal injury and/or equipment damage and may void the warranty.
Warning: Rewind hose on reel, then bleed pressure from system before performing the following procedures.

  1. Replace hoses in accordance with procedures given in “Installation Instructions” section of this manual.
    Caution: When replacing drive spring, hold the center of the spring down as the hub is pulled out. If the center is allowed to raise up, the spring may escape from it’s container with enough force to cause injuries.
    When disposing of old or broken spring assemblies, the coils should be welded or wired together to prevent possible injury to scrap handling personnel.
  2. All mating moving parts are to be lubricated with Perma Bond or Loctite anti-seize compound.

REELCRAFT PW7600 Series Spring Driven Hose Reels - Dimensions 1

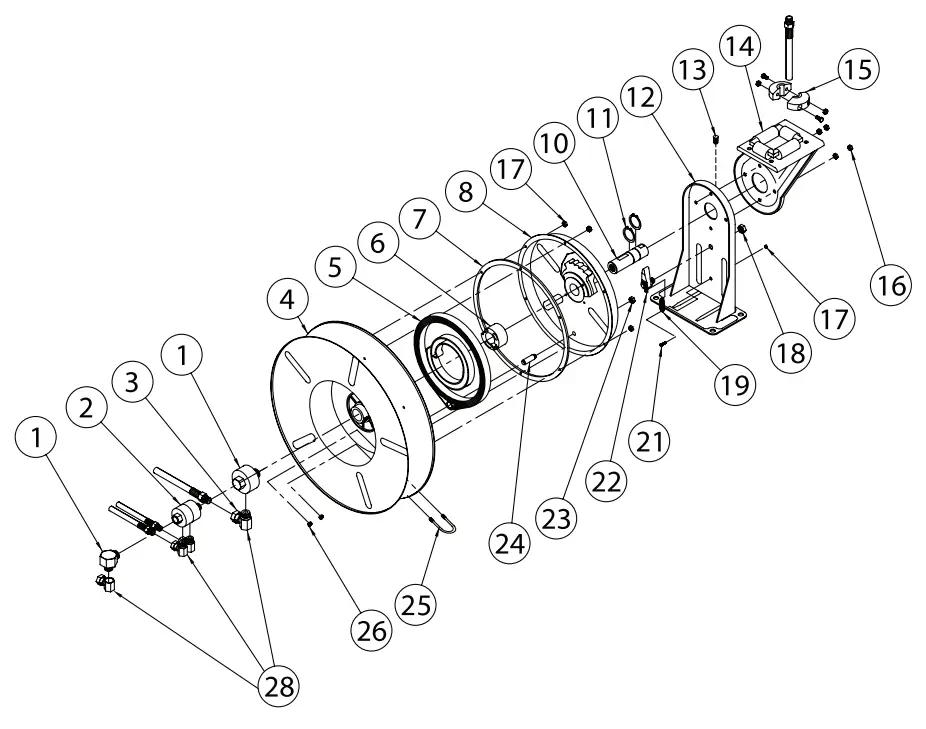

REELCRAFT PW7600 Series Spring Driven Hose Reels - Dimensions 2

Rem#Description# Req.PW7600 OHPPW7650 OHP
1Swivel Assembly1S602033S602033
390° Ell1NoneNone
4Sheave Assembly1S260011S260011
5Drive Spring Assembly1S260053S260053
6Spring Arbor Assembly1S600621S600621
7Gasket1S260069S260069
8Spring Case Assembly1S260074S260074
10Main Shaft1S260095S260095
111 1/4″ Snap Ring2300007300007
12Base Assembly1S600016S600016
131/2-13 Set Screw1S35-84S35-84
14Guide arm with Rollers1S600017S600017
15Bumper Stop Assembly1NoneS602452
165/16-18 Locknut4300107300107
1710-32 x 3/8″ Nyloc Nut7S82-15S82-15
181/2-20 x 5/8″ Hex Nut1S280-8S280-8
19Latch Spring1S260067-1S260067-1
2110-32 Shoulder Screw1S393-2S393-2
22Latch Pawl Assembly1S600018S600018
233/8-24 Jam Nut1S76-106S76-106
24Spring Case Stud1S260031S260031
25U-bolt13-1174403-117440
261/4-20 x 3/8″ Locknut2261650-1261650-1
28Swivel Union1S257-72S257-72
Hose AssemblyNoneS5-260044
Hose I.D. x LengthNone3/8″ x 50′
Reel Inlet Connection1/2″ (F)NPTF1/2″ (F)NPTF
Max. Operating Pressure5000 PSI4800 PSI
Max. Operating Temperature400 °F400 °F
