Mean Well Irm-15-3.3 15w Ac-dc Pcb Mount Green Power Module Instructions (+ PDF)

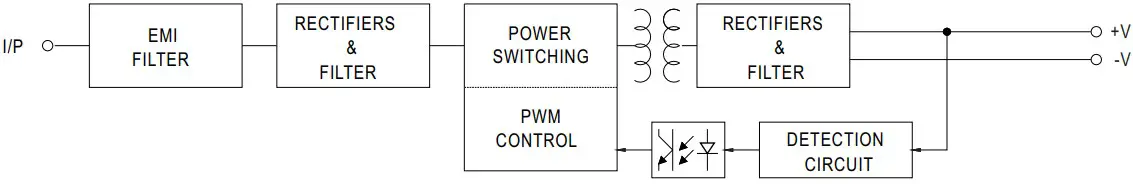

IRM-15is a 15W miniature (52.4″27.2*24mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product allows the universal input voltage range of 85~305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture.
With the high efficiency up to 83% and the extremely low no-load power consumption below 0.1W, IRM-15 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire seriesis a Class II design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BSEN/EN55032 Class B;the supreme EMC features keep the end electronic units from electromagnetic interference.

Model Encoding

SPECIFICATION

MODEL		IRM-15-3.3	IRM-15-5		IRM-15-12		IRM-15-15	IRM-15-24
OUTPUT	DC VOLTAGE	3.3V	5V		12V		15V	24V
	RATED CURRENT	3.5A	3A		1.25A		1A	0.63A
	CURRENT RANGE	0 ~ 3.5A	0 ~ 3A		0 ~ 1.25A		0 ~ 1A	0 ~ 0.63A
	RATED POWER	11.55W	15W		15W		15W	15.12W
	RIPPLE & NOISE (max.) Note.2	200mVp-p	200mVp-p		200mVp-p		200mVp-p	200mVp-p
	VOLTAGE TOLERANCE Note.3	±2.5%	±2.5%		±2.5%		±2.5%	±2.5%
	LINE REGULATION	±0.5%	±0.5%		±0.3%		±0.3%	±0.3%
	LOAD REGULATION	±1%	±1%		±0.5%		±0.5%	±0.5%
	SETUP, RISE TIME	1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
	HOLD UP TIME (Typ.)	40ms/230VAC 10ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 305VAC 120 ~ 430VDC
	FREQUENCY RANGE	47 ~ 440Hz
	EFFICIENCY (Typ.)	74%	78%		82%		82%	83%
	AC CURRENT (Typ.)	0.35A/115VAC 0.2A/230VAC 0.17A/277VAC
	INRUSH CURRENT (Typ.)	COLD START 20A/115VAC 40A/230VAC
	LEAKAGE CURRENT	< 0.25mA/277VAC
PROTECTION	OVERLOAD	115%~190% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	3.8 ~ 4.95V	5.75 ~ 6.75V		13.8 ~ 16.2V		17.25 ~ 20.25V	27.6 ~ 32.4V
		Protection type : Shut off o/p voltage, clamping by zener diode

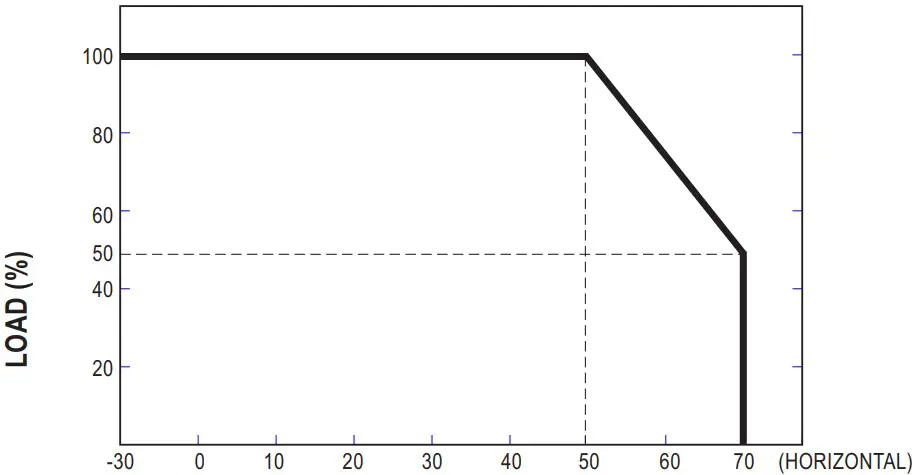

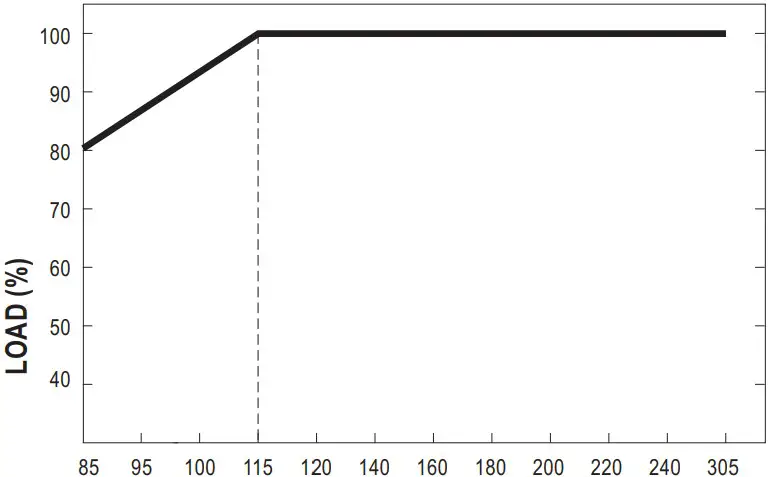

ENVIRONMENT	WORKING TEMP.	-30 ~ +70℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +85℃, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/℃ (0 ~ 50℃)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
	LEAD TEMPERATURE	260±5℃,5s (max.)
	OPERATING ALTITUDE Note.4	2000 meters
SAFETY &EMC(Note.5)	SAFETY STANDARDS	IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION	Parameter		Standard		Test Level / Note
		Conducted		BS EN/EN55032(CISPR32), CNS13438		Class B
		Radiated		BS EN/EN55032(CISPR32), CNS13438		Class B
		Harmonic Current (Note 5)		BS EN/EN61000-3-2		Class A
		Voltage Flicker		BS EN/EN61000-3-3		——-
	EMC IMMUNITY	BS EN/EN55035, BS EN/EN61000-6-2
		Parameter		Standard		Test Level /Note
		ESD		BS EN/EN61000-4-2		Level 3, 8KV air; Level 2, 4KV contact, criteria A
		Radiated Susceptibility		BS EN/EN61000-4-3		Level 3, criteria A
		EFT/Burest		BS EN/EN61000-4-4		Level 3, criteria A
		Surge		BS EN/EN61000-4-5		Level 4,2KV/L-N, criteria A
		Conducted		BS EN/EN61000-4-6		Level 3, criteria A
		Magnetic Field		BS EN/EN61000-4-8		Level 4, criteria A
		Voltage Dips and interruptions		BS EN/EN61000-4-11		＞95% dip 0.5 periods, 30% dip 25 periods,＞95% interruptions 250 periods
OTHERS	MTBF	10656.2K hrs min. Telcordia SR-332 (Bellcore) ; 970.3K hrs min. MIL-HDBK-217F (25℃)

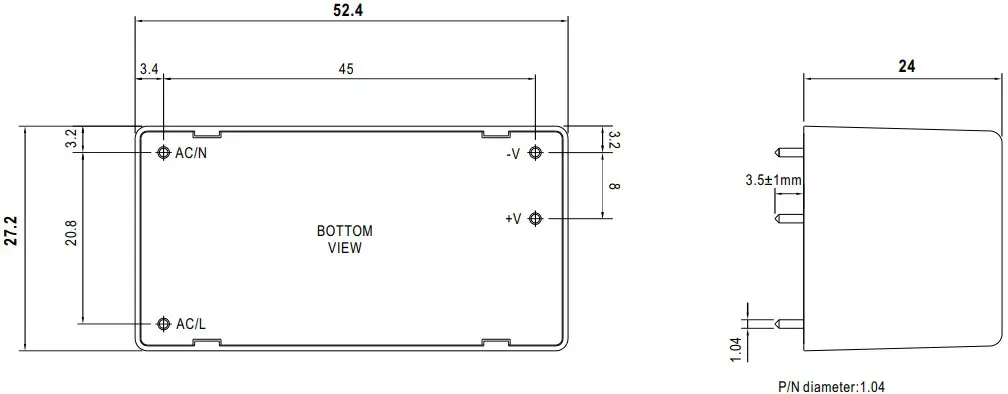

	DIMENSION	52.427.224mm (LWH)
	PACKING	0.05Kg/240pcs/13Kg/0.94CUFT
NOTE	All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. Tolerance: includes set up tolerance, line regulation and load regulation. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). The power supply is considered as an independent unit ,but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.(as available on http://www.meanwell.com) ※ ProductLiabilityDisclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
