GREEN POWER Ample 100 Portable Power Charger
USER MANUAL

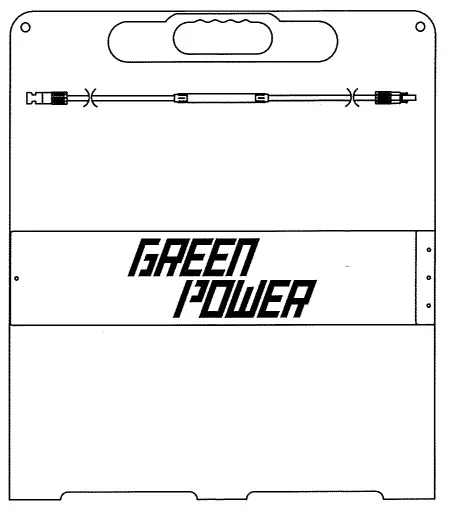

GREEN POWER Ample 100 Portable Power Charger -

WWW.GREENPW.NET

SAFETY GUIDELINES

Please read these safety guidelines before using your new Green Power Ample 100

  • The product has waterproof function, such as rain wet will not affect the normal use. But please do not immerse the product in water
  • Do not use the product during severe weather conditions, such as thunderstorms, strong winds, and hailstorms
  • Do not pierce the product with sharp objects, break it open with a’hammer, or step on it.
  • In order to increase the efficiency of the product, keep it perpendicular to sunlight when using It
  • Do not contact the product with strong corrosive objects
  • Do not charge automotive battery directly.

SPECIFICATIONS

Technical Date
Peak Power100W
Open Circuit Voltage21.6V
Max Power Voltage18V
Short Circuit Current6V
Max Power Current5.56A
Efficiency229′.
Cell TypeMonocrystalline silicon
Connector TypeMC4
Operating & Storage Temperature-40′ F to 185′ F (-40′ C to 85′ C)
Power Chargers number50W*2pcs
General Info
Net weight9.71bs(4.4kg)
Unfolded Dimensions48.4*22*linti23*56*2.5cm)
Folded Dimensions24*22*1.4in(61.5*56*3.5cm)
Warranty12 months

USAGE STATEMENT

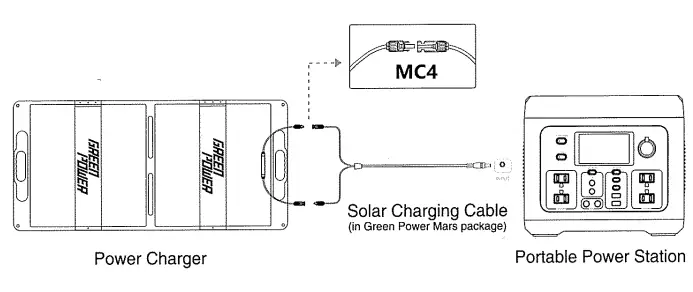

3.1 Single Power Charger

  1. Connect the power charger MC4 Connectors to the Solar Charging Cable (in Green Power Mars package);
  2. Connect the DC connector on the Solar Charging Cable to the DC Input port on the portable power station

GREEN POWER Ample 100 Portable Power Charger - fig1

3.2 Wire Power Chargers In Series

  1. Connect the male connector of one power charger to the female connector of the other power charger;
  2. Connect the power charger MC4 Connectors to the Solar Charging Cable (in Green Power Mars package);
  3. Connect the DC connector on the Solar Charging Cable to the DC Input port on the portable power station

GREEN POWER Ample 100 Portable Power Charger - fig2

FAQS

01: Does the charging speed of Green Power power charger vary?
A The charging speed of power charger vary with different operating and environmental conditions, mainly consist of weather, positioning, obstructions
02: Are Green Power power charger waterproof?
A Green Power Ample 100 are IP65 rated, which means rain wet will not affect the normal use Caution: If you wish to clean your solar panel, use a gentle stream of. water and do not use seawater or corrosive liquid.
03: Can Green Power power charger store power themselves?
A Power charger convert solar energy into electricity and pass it as a DC current to an GP power station, as opposed to storing power themselves

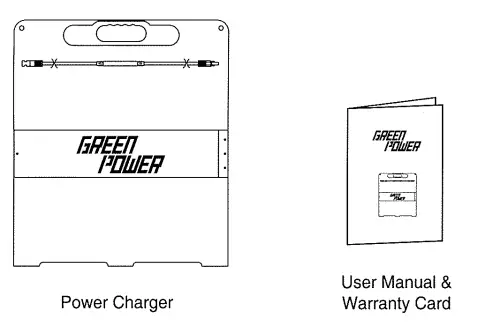

PACKAGE CONTENT

GREEN POWER Ample 100 Portable Power Charger - fig3

DISTRIBUTED BY:
Greenpower Technology Inc
For customer support,
[email protected]
Email [email protected]
Instagram greenpwinc
Website www.greenpw.net
Company address: 661 Brea Canyon Road, Suite 6, Walnut. CA 9,789
