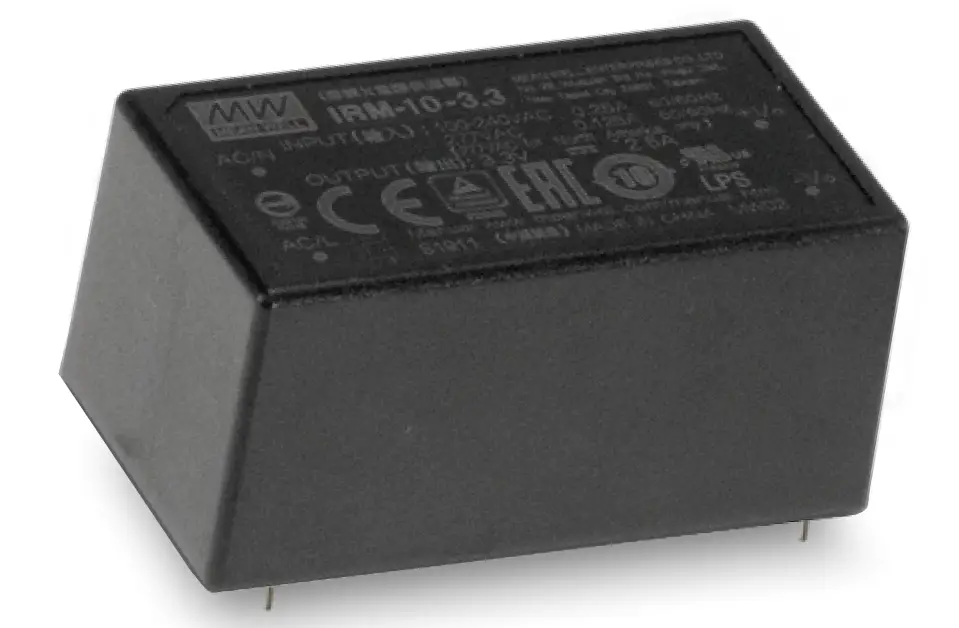

MEAN WELL IRM-10-5 switched Power supply
Features
- 1.8″x1 “compact size
- Universal input 85-305VAC
- No load power consumption<0.1W
- EMI Class B without additional components
- Wide operating temp. range -30-70’C
- Protections: Short circuit/ Overload/Over voltage
- Cooling by free air convection
- Isolation Class I
- Pass LPS
- 3 years warranty
Applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Hand-held electronic device
GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx
Description
IRM-10 is a 10W miniature (45.7*25.4*21.5mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. This product allows the universal input voltage range of 85 305VAC. The 94V-0 flame retardant plastic case and the fully-potted silicone enhances the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides the fundamental resistance to dust and moisture. With the high efficiency up to 82% and the extremely low no-load power consumption below 0.1W, IRM-10 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class II design (no FG pin), incorporating the built-in EMI filtering components, enabling the compliance with BS EN/EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference.

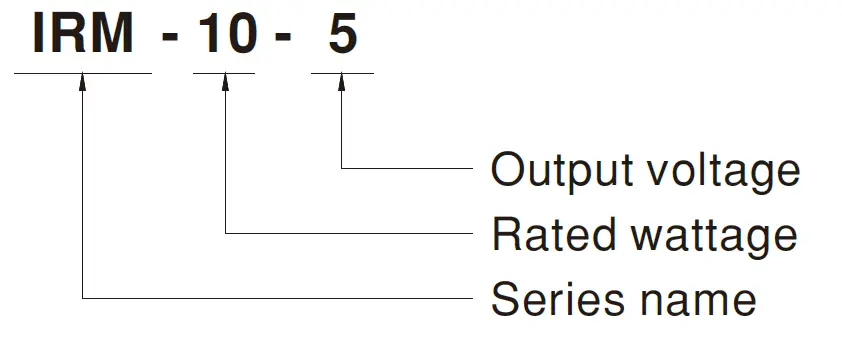

Model Encoding
SPECIFICATION
| MODEL | IRM-10-3.3 | IRM-10-5 | IRM-10-12 | IRM-10-15 | IRM-10-24 | ||
|
OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | |
| RATED CURRENT | 2.5A | 2A | 0.85A | 0.67A | 0.42A | ||
| CURRENT RANGE | 0 ~ 2.5A | 0 ~ 2A | 0 ~ 0.85A | 0 ~ 0.67A | 0 ~ 0.42A | ||
| RATED POWER | 8.25W | 10W | 10.2W | 10.05W | 10.08W | ||
| RIPPLE & NOISE (max.) Note.2 | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||
| VOLTAGE TOLERANCE Note.3 | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ||
| LINE REGULATION | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ||
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME Note.4 | 600ms, 30ms at full load | ||||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 8ms/115VAC at full load | ||||||
|
INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120 ~ 430VDC | |||||
| FREQUENCY RANGE | 47 ~ 440Hz | ||||||
| EFFICIENCY (Typ.) | 74% | 77% | 82% | 82% | 82% | ||
| AC CURRENT (Typ.) | 0.25A/115VAC 0.15A/230VAC 0.125A/277VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 20A/115VAC 40A/230VAC | ||||||
| LEAKAGE CURRENT | < 0.25mA/277VAC | ||||||
| PROTECTION | OVERLOAD | 115%~190% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 3.8 ~ 4.95V | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | ||
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||||
|
ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SOLDERING TEMPERATURE | Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.) | ||||||
| OPERATING ALTITUDE Note.5 | 2000 meters | ||||||
|
SAFETY & EMC (Note.6) | SAFETY STANDARDS | IEC62368-1, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
|
EMC EMISSION | Parameter | Standard | Test Level / Note | ||||
| Conducted | BS EN/EN55032(CISPR32), CNS13438 | Class B | |||||
| Radiated | BS EN/EN55032(CISPR32), CNS13438 | Class B | |||||
| Harmonic Current (Note 5) | BS EN/EN61000-3-2 | Class A | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | ——- | |||||
|
EMC IMMUNITY | BS EN/EN55035, BS EN/EN61000-6-2 | ||||||
| Parameter | Standard | Test Level /Note | |||||
| ESD | BS EN/EN61000-4-2 | Level 3, 8KV air; Level 2, 4KV contact, criteria A | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 3, criteria A | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, criteria A | |||||
| Surge | BS EN/EN61000-4-5 | Level 3,1KV/L-N, criteria A | |||||
| Conducted | BS EN/EN61000-4-6 | Level 3, criteria A | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, criteria A | |||||
| Voltage Dips and interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods | |||||
| OTHERS | MTBF | 9094.9K hrs min. Telcordia SR-332 (Bellcore) ; 1495.8K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 45.7*25.4*21.5 mm (L*W*H) | ||||||
| PACKING | 0.033Kg;270pcs/ 9.8Kg/0.94CUFT | ||||||
- All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
- Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacito.
- Tolerance: includes set up tolerance, line regulation and load regulation.
- Length of set up time is measured at first cold start. Turning ONOFF the power Supply may lead to increase of the set up time.
- The ambient temperature derating of 3.5 C/1000m with fanless models and of 5C/1000m with fan models for operating altitude higher than 2000m(650oft)
- The power supply is considered as an independent unit ,but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

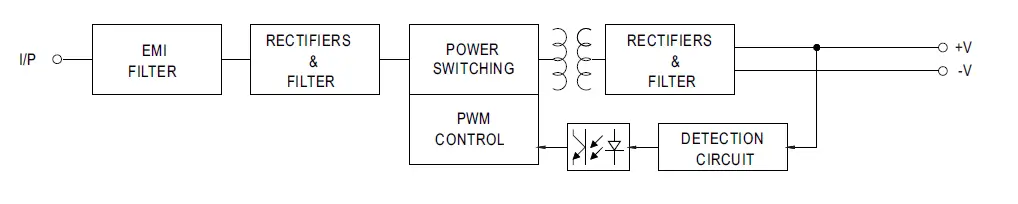

Block Diagram
fosc : 65KHz

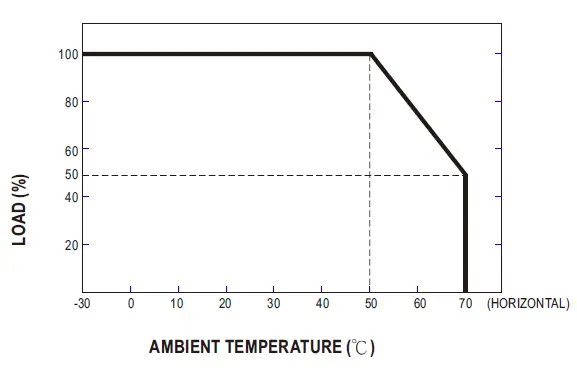

Derating Curve

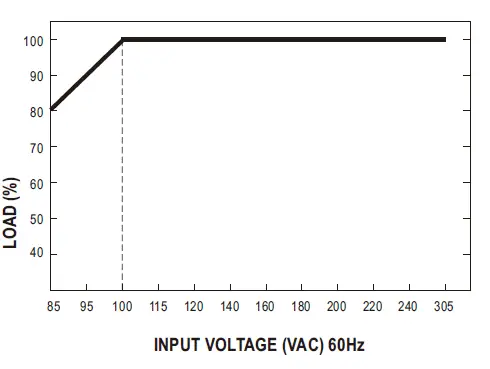

Output Derating VS Input Voltage

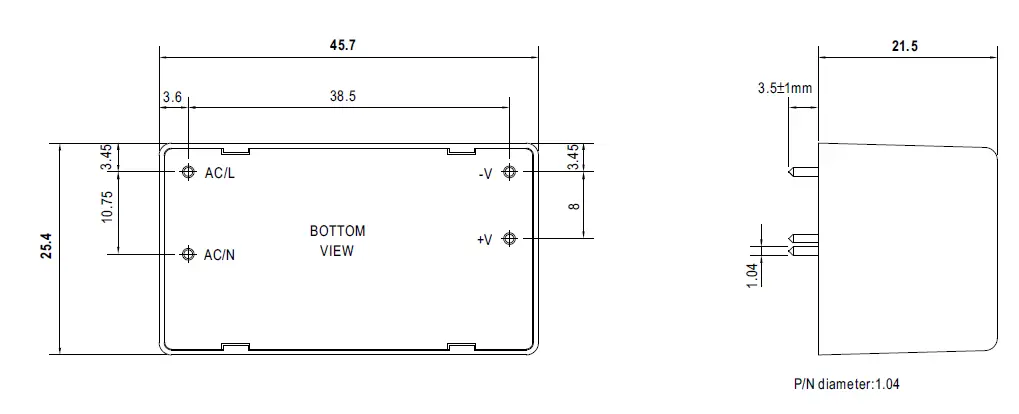

Mechanical Specification
Case No.222A Unit:(mm)
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
Downloaded from Arrow.com
File Name: IRM-10-SPEC 2022-04-25
