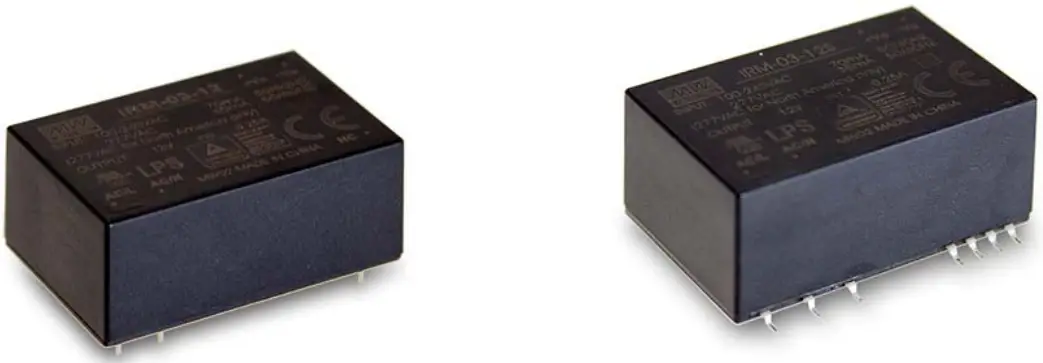

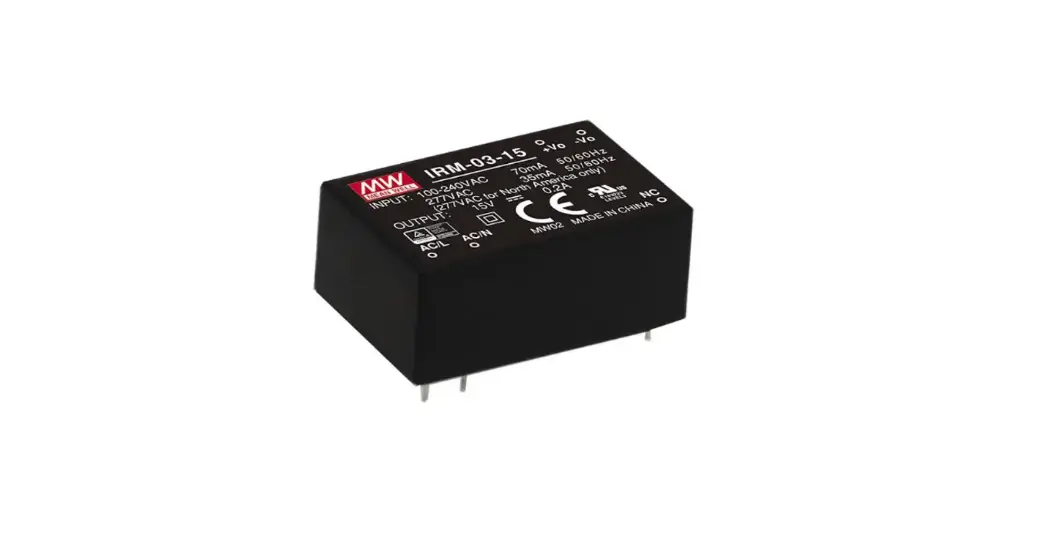

IRM-03 Power supply switched
Applications
- Industrial electrical equipment
- Mechanical equipment
- Factory automation equipment
- Handheld electronic device
Features
- Universal AC input / Full range
- No load power consumption<0.075W
- Compact size
- Comply with BS EN/EN55032 Class B without any additional components
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Isolation Class Ⅱ
- High reliability, low cost
- 3 years warranty
Description
IRM-03 is a 3W miniature (37*24*15mm) AC-DC module-type power supply, ready to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. This product allows a universal input voltage range of 85~305VAC. The phenolic case and the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G; moreover, it provides fundamental resistance to dust and moisture. With the high efficiency of up to 80% and the extremely
low no-load power consumption of below 0.075W, the IRM-03 series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire series is a Class design (no FG pin), Ⅱ incorporating the built-in EMI filtering components, enabling compliance with BS EN/EN55032 Class B; the supreme EMC features keep the end electronic units from electromagnetic interference. In addition to the module-type model, the IRM-03 series also offers the SMD style model.

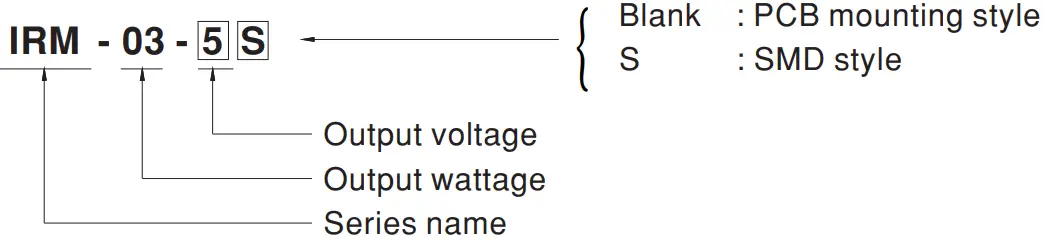

Model Encoding
SPECIFICATION
| MODEL | IRM-03-3.3 | IRM-03-5 | IRM-03-9 | IRM-03-12 | IRM-03-15 | IRM-03-24 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 9V | 12V | 15V | 24V |
| RATED CURRENT | 900mA | 600mA | 333mA | 250mA | 200mA | 125mA | |
| CURRENT RANGE | 0 ~ 900mA | 0 ~ 600mA | 0 ~ 333mA | 0 ~ 250mA | 0 ~ 200mA | 0 ~ 125mA | |
| RATED POWER | 3W | 3W | 3W | 3W | 3W | 3W | |
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | |
| VOLTAGE TOLERANCE Note.3 | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 40ms/230VAC 8ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 85 ~ 305VAC 120~430VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 68% | 72% | 77% | 78% | 78% | 80% | |
| AC CURRENT (Typ.) | 70mA/115VAC 40mA/230VAC 35mA/277VAC | ||||||
| INRUSH CURRENT (Typ.) | 10A/115VAC 20A/230VAC | ||||||
| LEAKAGE CURRENT | < 0.25mA/277VAC | ||||||
| PROTECTION | OVERLOAD | 105%~260% rated output power | |||||
| Protection type: Hiccup mode, recovers automatically after the fault condition is removed | |||||||
| OVERVOLTAGE | 3.8 ~ 4.9V | 5.2~ 6.8V | 10.3 ~ 12.2V | 12.6 ~ 16.2V | 15.75 ~ 20.3V | 25.2 ~ 32.4V | |
| Protection type: Shut off o/p voltage, clamping by Zener diode | |||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +85℃ (Refer to “Derating Curve”) | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +100℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, the period for 60min. each along X, Y, and Z axes | ||||||
| LEAD TEMPERATURE | 260℃,10s (max.) | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368, TUV BS EN/EN60335-1, EAC TP TC 004 BSMI CNS14336-1 approved,design refer to BS EN/EN61558-2-16 , IEC60601-1 (By request) | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level (surge L-N: 1KV), criteria A, EAC TP TC 020 | ||||||
| OTHERS | MTBF | 2137.6Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | PCB mounting style: 37*24*15mm (L*W*H) SMD style: 37*24*16mm (L*W*H) | ||||||
| PACKING | PCB mounting style : 0.026Kg;560pcs/15.3Kg/0.77CUFT SMD style :0.026Kg;560pcs/15.3Kg/0.77CUFT | ||||||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load, and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation, and load regulation. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitudes higher than 2000m(6500ft). ※ Product Liability Disclaimer: For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx | ||||||

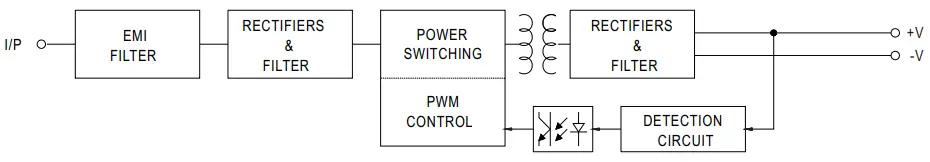

Block Diagram
fosc: 130KHz

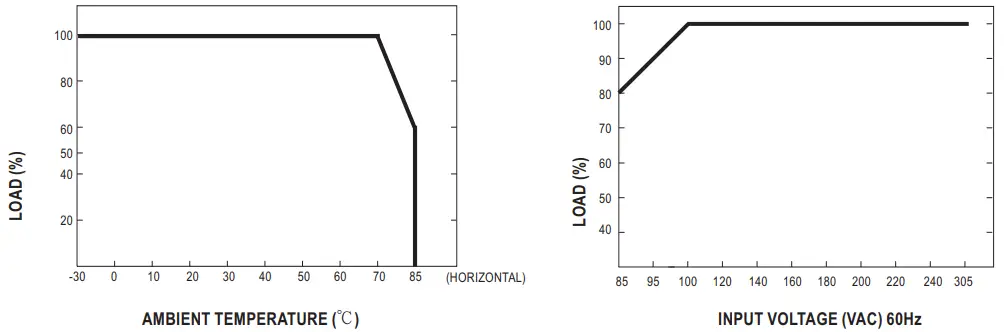

| Derating Curve | Output Derating VS Input Voltage |
 | |
Mechanical Specification
Case No.IRM03
Unit:mm[inch]
Tolerance: 0.5[ ±0.02] unless otherwise specified

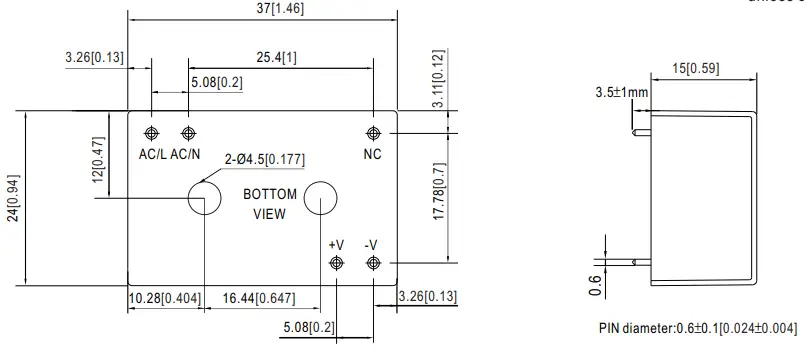

- PCB mounting style
- SMD style

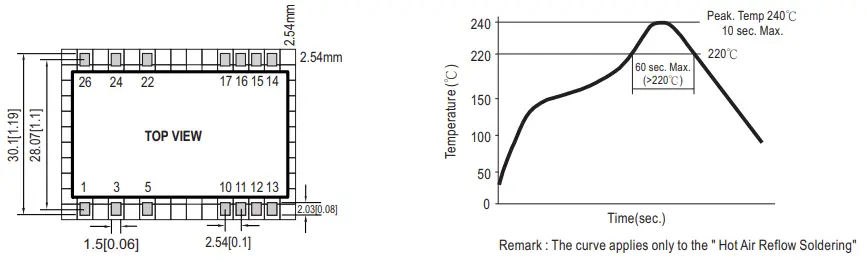

Pin NO. Assignment 1 AC/L 3 AC/N 14 -Vo 16 +Vo others NC - Recommended PCB layout (for SMD style) (Reflow soldering method available)
Installation Manual
Please refer to: http://www.meanwell.com/manual.html
