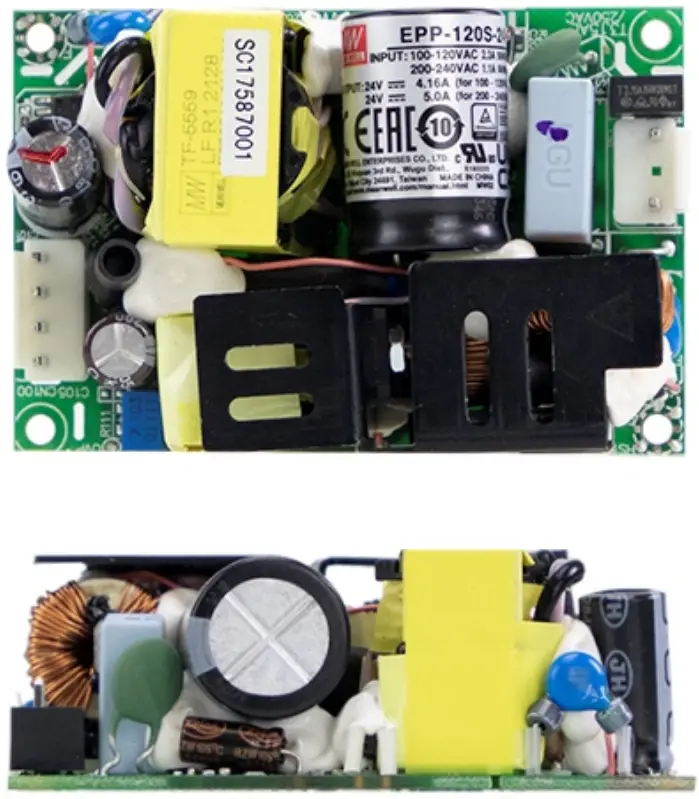

MEAN WELL EPP-120S Series 120W 3 Inch ×2 Inch Green Open Frame Power Supply

Contents hide

9 Output Derating VS Input Voltage

10 Mechanical Specification

11 Installation Manual

12 Documents / Resources

12.1 References

13 Related Posts

Features

3″ 2″ Compact Size
120W convection,150W peak (10sec.)
EMI for both ClassⅠ& Class Ⅱ configuration
-30~+85℃ wide range operating temperature
No load power consumption<0.3W
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
Operating altitude up to 5000 meters (Note.5)
3 years warranty

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipment’s or apparatus

GTIN CODE

MW Search: https://www.meanwell.com/serviceGTIN.aspx

Description

EPP-120S is a 120W highly reliable green PCB type power supply with a high power density on the 3 by 2 footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.3W.EPP-120S is able to be used for both ClassⅠ(with FG) and ClassⅡ(no FG) system design. EPP-120S has the complete protection functions; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL62368-1 and IEC62368-1. EPP-120S series serves as a high price-to-performance power supply solution for various industrial applications.

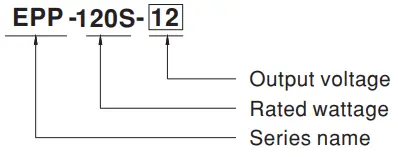

Model Encoding

SPECIFICATION

MODEL			EPP-120S-12	EPP-120S-15		EPP-120S-24	EPP-120S-27		EPP-120S-48
OUTPUT	DC VOLTAGE		12V	15V		24V	27V		48V
	CURRENT	Peak(10 sec.)	11.8A	9.5A		6.25A	5.55A		3.125A
		Convection	9.5A	7.6A		5A	4.44A		2.5A
	RATED POWER	Peak(10 sec.)	141.6W	142.5W		150W	149.8W		150W
		Convection	114W	114W		120W	119.9W		120W
	RIPPLE & NOISE (max.) Note.2		100mVp-p	120mVp-p		150mVp-p	150mVp-p		200mVp-p
	VOLTAGE ADJ. RANGE		11.4~12.6V	14.3~15.8V		22.8~25.2V	25.6 ~ 28.4V		45.6 ~50.4V
	VOLTAGE TOLERANCE Note.3		±2.0%	±2%		±1.0%	±1.0%		±1.0%
	LINE REGULATION		±0.5%	±0.5%		±0.5%	±0.5%		±0.5%
	LOAD REGULATION		±1.0%	±1.0%		±1.0%	±1.0%		±1.0%
	SETUP, RISE TIME		600ms, 30ms/230VAC 600ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)		15ms/230VAC 15ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.4		80 ~ 264VAC 113 ~ 370VDC
	FREQUENCY RANGE		47 ~ 63Hz
	POWER FACTOR		PF>0.94/230VAC PF>0.98/115VAC at full load
	EFFICIENCY (Typ.)		91%	92%		93%	94%		93.5%
	AC CURRENT (Typ.)		2.3A/115VAC 1.1A/230VAC
	INRUSH CURRENT (Typ.)		COLD START 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT		<0.75mA / 240VAC
PROTECTION	OVERLOAD		130~160% rated output power
			Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE		13.2 ~ 15.6V	16.5 ~ 19.5V		26.4 ~ 31.2V	29.7 ~ 35V		52.8 ~ 62.4V
			Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE		Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.		-30 ~ +85℃ (Refer to “Derating Curve”)
	WORKING HUMIDITY		20 ~ 90% RH non-condensing
	STORAGE TEMP.		-40 ~ +85℃
	TEMP. COEFFICIENT		±0.03%/℃ (0 ~ 50℃)
	VIBRATION		10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
	OPERATING ALTITUDE (Note.5)		5000 meters
SAFETY & EMC (Note 6)	SAFETY STANDARDS		UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, IEC62368-1, EAC TP TC 004 approved
	WITHSTAND VOLTAGE		I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH
	EMC EMISSION		Parameter		Standard			Test Level / Note
			Conducted emission		BS EN/EN55032 (CISPR32)			Class B
			Radiated emission		BS EN/EN55032 (CISPR32)			ClassⅠ: Class B , Class Ⅱ: Class A
			Harmonic current		BS EN/EN61000-3-2			Class A
			Voltage flicker		BS EN/EN61000-3-3			—–
	EMC IMMUNITY		BS EN/EN55035, BS EN/EN61000-6-2
			Parameter		Standard			Test Level / Note
			ESD		BS EN/EN61000-4-2			Level 3, 8KV air ; Level 3, 4KV contact
			RF field susceptibility		BS EN/EN61000-4-3			Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
			EFT bursts		BS EN/EN61000-4-4			Level 3, 2KV
			Surge susceptibility		BS EN/EN61000-4-5			Level 4, 4KV/Line-FG; 2KV/Line-Line
			Conducted susceptibility		BS EN/EN61000-4-6			Level 3, 10V
			Magnetic field immunity		BS EN/EN61000-4-8			Level 4, 30A/m
			Voltage dip, interruption		BS EN/EN61000-4-11			95% dip 0.5 periods, 30% dip 25 periods, 95% interruptions 250 periods
OTHERS	MTBF		4071.1K hrs min. Telcordia SR-332 (Bellcore) ; 470.2K hrs min. MIL-HDBK-217F (25℃)
	DIMENSION		76.250.828mm (LWH) or 3″ * 2″ *1.1″ inch
	PACKING		0.13Kg; 100pcs/14Kg/1.13CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the derating curve for more details. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com) ※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx

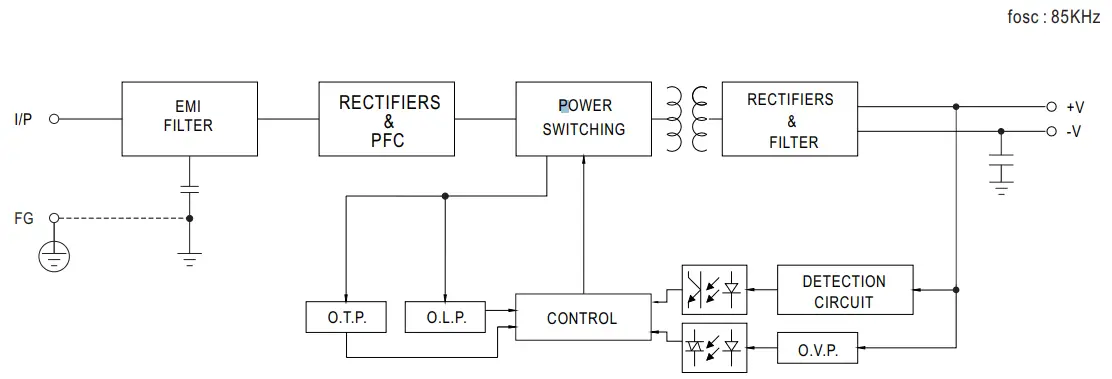

Block Diagram

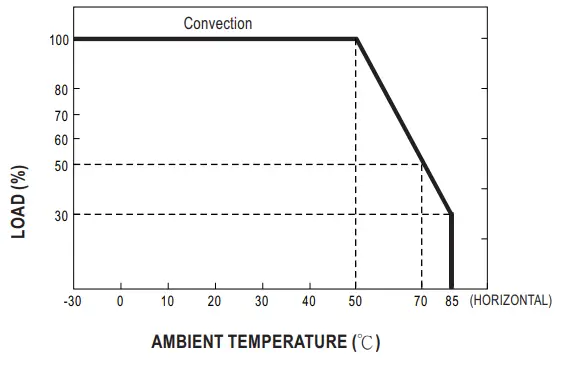

Derating Curve

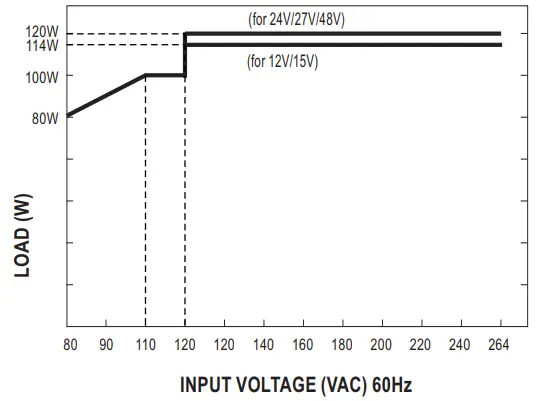

Output Derating VS Input Voltage

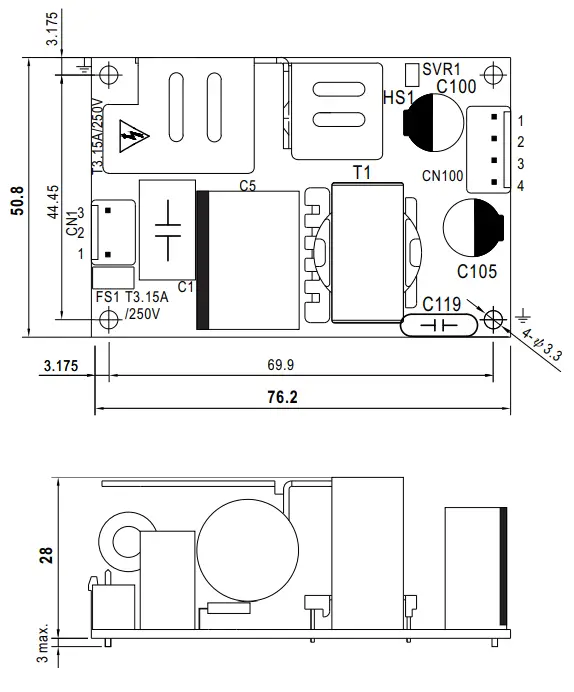

Mechanical Specification

AC Input Connector (CN1) : JST B3P-VH or equivalent

Pin No.	Assignment	Mating Housing	Terminal
1	AC/L	JST VHR or equivalent	JST SVH-21T-P1.1 or equivalent
2	No Pin
3	AC/N

DC Output Connector (CN100) : JST B4P-VH or equivalent

Pin No.	Assignment	Mating Housing	Terminal
1,2	+V	JST VHR or equivalent	JST SVH-21T-P1.1 or equivalent
3,4	-V	JST VHR or equivalent	JST SVH-21T-P1.1 or equivalent

HS1 must have safety isolation distance with system case.

Note :

EPP-120S model delivers EMI Class B for both conducted emission and radiated emission for the power supply, when configured into Class Ⅰ(with FG) system.
EPP-120S model delivers EMI Class B conducted emission and Class A radiated emission with King Core K5B RC (12*15*7) in output cable for the power supply when configured into Class Ⅱ (no FG) system.
