500W 5″× 3″ Reliable Green Medical Power Supply RPS-500 series
https://www.meanwell.com/Upload/PDF/Medical_EN.pdf
Features
- 5″x3″ compact size
- 320W convection,500W force air
- 550W peak power (3sec.)
- Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- EMI for both Class I & Class II configuration
- -30~+70 C wide range operating temperature
- No load power consumption<0.5W by PS_ON control
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
- Operating altitude up to 4000 meters (Note.5)
- LED indicator for power on
- 3 years warranty
Applications
- Oral irrigator
- Hemodialysis machine
- Medical computer monitors
- Sleep apnea devices
- Pump machine
- Electric bed
GTIN CODE
MW Search: https://www.meanwell.com/serviceGTIN.aspx
Description

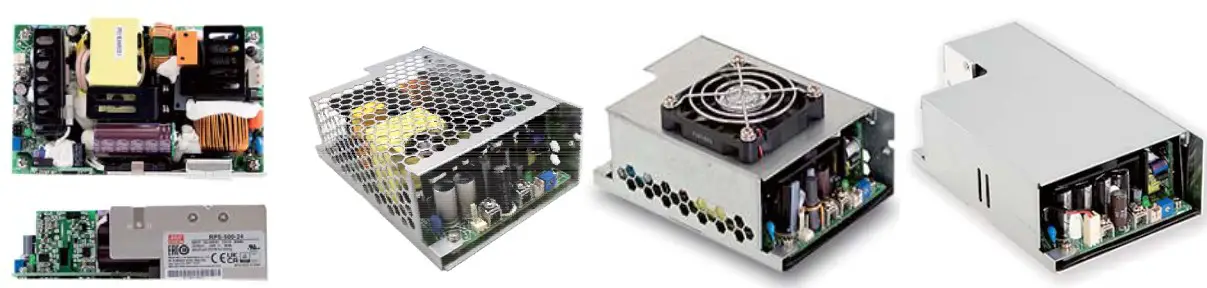

RPS-500 is a 500W highly reliable green PCB type medical power supply with a high power density on the 5” by 3” footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V.The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W.RPS-500 (blank type only) is able to be used for both Class I (with FG) and Class II(no FG) system design. The extremely low leakage current is less than 220KA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectlyfitting all kinds of BF rated “patient contact” medical system equipment. RPS-500 series also offers the enclosed style models( -C/ TF /SF )

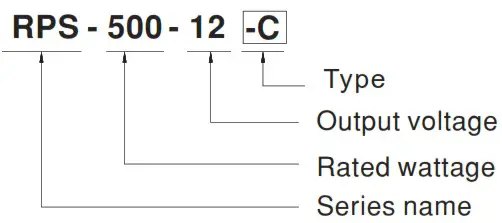

Model Encoding
| Type | Description | Note |
| Blank | PCB Type | In stock |
| – C | Enclosed casing Type | In stock |
| – TF | Enclosed Type with fan on the top | In stock |
| – SF | Enclosed Type with fan on the side | In stock |
SPECIFICATION
| MODEL | RPS-500-12❑ | RPS-500.15❑ | RPS-500-18❑ | RPS-500.24 ❑ | RI:IS-500.27❑ | RPS-500.36❑ | RPS-500.48❑ | |||
| OUTPUT | DC VOLTAGE | 12V | 15V | 18V | 24V | 27V | 36V | 48V | ||
| RATED CURRENT Note.7 | Blank | 25CFM | 41.6A | 33.3A | 27.8A | 20.8A | 18.5A | 13.9A | 10.4A | |
| Convection | 26.7A | 21.3A | 17.8A | 13.4A | 11.9A | 8.9A | 6.7A | |||
| – c | 25cFm | 41.6A | 33.3A | 27.8A | 20.8A | 18.5A | 13.9A | 10.4A | ||
| Convection | 25.8A | 20.7A | 17.2A | 12.9A | 11.5A | 8.6A | 6.5A | |||
| -TF/SF | Bullt•In fan | 41.6A | 33.3A | 27.8A | 20.8A | 18.5A | 13.9A | 10.4A | ||
| RATED POWER Note.? | Blank | 25CFM | 499.2W | 499.5W | 500.4W | 499.2W | 499.5W | 500.4W | 499.2W | |
| Convection | 320.4W | 319.5W | 320.4W | 321.6W | 321.3W | 320.4W | 321.6W | |||
| -C | 25CFM | 499.2W | 499.5W | 500.4W | 499.2W | 499.5W | 500.4W | 499.2W | ||
| Convection | 309.6W | 310.5W | 309.6W | 309.6W | 310.5W | 309.6W | 312W | |||
| -TFtSF | Built-In fan | 499.2W | 499.5W | 500.4W | 499.2W | 499.5W | 500.4W | 499.2W | ||
| PEAK POWER(3sec.) | 550W | |||||||||
| RIPPLE & NOISE (max.) Notel | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | |||
| VOLTAGE ADJ. RANGE(main output ) | 11.4-12.6V | 14.3-15.8V | 17.1-18.9V | 22.8-25.2V | 25.6 – 28.4V | 34.2 -37.8V | 45.6 -50.4V | |||
| VOLTAGE TOLERANCE Note.3 | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |||
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 10ms1230VAC 10ms/115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE Note.4 | 80 – 264VAC 113 – 370VDC | ||||||
| FREQUENCY RANGE | 47 – 63Hz | |||||||
| POWER FACTOR | PF>0.941230VAC PF>0.98/115VAC at full load | |||||||
| EFFICIENCY (Typ.) | 91% | 92% | 93.% | 93% | 94.% | 94% | 94% | |
| AC CURRENT (Typ.) | 5.8A/115VAC 2.9A/230VAC | |||||||
| INRUSH CURRENT (Typ.) | COLD START 40A1115VAC 80A/230VAC | |||||||
| LEAKAGE CURRENT (max.) Note.5 | Earth leakage current <2200/264VAC 50Hz , Touch current < 100mA/264VAC | |||||||
| PROTECTION | OVERLOAD | 105 -135% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| OVER VOLTAGE | 13.2 -15.6V | 16.5 -19.5V 1 | 19.8 -23.4V | 26.4 – 31.2V | 29.7 – 35.1V | 39.6 – 46.8V | 52.8 – 62.4V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||||||
| FUNCTION | 5V STANDBY | 5Vsb : [email protected] without fan, 1A with fan 25CFM ; Tolerance ±2%, ripple : 120mVp-p(max.) | ||||||
| 12V FAN SUPPLY | [email protected] for driving fan ; Tolerance -15% -+10% at main output 20% rated current (25CFM) | |||||||
| FAN CONTROL | Fan on by 20% load min. (For RPS-500-xxTF/SF) | |||||||
| PS•ON INPUT SIGNAL | Power ON: PS-ON =’Hi’ or ” > 2 – 511′ ; Power OFF: PS-ON = ‘Low’ or’ < 0 – 0.5V” | |||||||
| POWER GOOD I POWER FAIL | 500ms>PG>10ms ; The TTL signal goes high with 10ms to 500ms delay after power set up ; The TTL signal goes low at least 1 ms before Vo below 90% of rated value | |||||||
| UNROOF | WORKING TEMP. | -30 —+70°C (Refer to “berating Curve”) |
| WORKING HUMIDITY | 20 — 90% RH non-condensing | |
| STORAGE TEMP. | .40 – +85°C | |
| TEMP. COEFFICIENT | ±0.03%/t (0 — 50°C) | |
| VIBRATION | 10 -500Hz. 2G 10min./1 cycle. 60min. each along X. Y. Z axes | |
| OPERATING ALTITUDE Note.. | 4000 meters |
| SAFETY & EMC (Note 8) | SAFETY STANDARDS | IEC60601-1, TUV BS EN/EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CANICSA-C22.2 No. 60601-1:14 – Edition 3 approved; Design refer to BS EN/EN60335-1 (By request) | ||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP | |||
| WITHSTAND VOLTAGE | l/P-O/P:4KVAC I/P-FG:2KVAC 0/P-FG:1.5KVAC | |||
| ISOLATION RESISTANCE | 1113-0/P, I/P-FG:100M Ohms ! 500VDC / 25°C/70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level! Note | |
| Conducted emission | BS EN/EN55011 (CISPR11) | Class I : Class B , Class H: Class A | ||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class A | ||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||
| Voltage flicker | BS EN/EN61000-3-3 | |||
| EMC IMMUNITY | BS EN/EN55035 , BS EN!EN60601-1-2, BS EN!EN61204-3 | |||
| Parameter | Standard | Test Level! Note | ||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V1m( 80MHz-2.76Hz ) Table 9, 9-2841m( 385MHz-5.78GHz ) | ||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | ||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG ; 2KV/Line-Line | ||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3,10V | ||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods | ||
| OTHERS | MTBF | 1132.3K hrs min. Telcordia SR-332 (Bellcore) ;144.2K hrs min. MIL-HDBK-217F (25°C) | ||||
| DIMENSION | Type | RPS-500 | RPS-500-C | RPS-500-TF | RPS-500-SF | |
| LmAPH | 127×76.2x41mm | 130x86x43mm | 130x86x66.5mm | 160x86x43mm | ||
| 5″x3″x1.61″inch | 5.11″x3.394×1.69″incl• | 5.11″x3.39″x2.62″incl• | 6.3)(3.391)(1.69inch | |||
| PACKING | P.W. | 0.46Kg | 0.54Kg | 0.58Kg | 0.64Kg | |
| QTY | 30pcs | 24pcs | 24pcs | 24pcs | ||
| G.W. | 14.8Kg | 14Kg | 14.9Kg | 16.4Kg | ||
| M’MENT | 0.96CUFT | 0.77CUFT | 0.86CUFT | 0.91CUFT | ||
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1of & 474 parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the derating curve for more details. 5. Touch current was measured from primary input to DC output. 6. The ambient temperature derating of 3.5″C/1000m with fanless models and of 5″C/1000m with fan models for operating attitude higher than 2000m(6500ft). 7. Please refer to ‘Derating curve”. 8. The power apply is considered a component which will be installed into a final equipment. All EMC tests are executed by mounting the unit on a 360mm”360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com). ※ Product Liability Disclaimer : For detailed information, please refer to https://www.meanwell.conVserviceDisclaimerzspx  | |||||

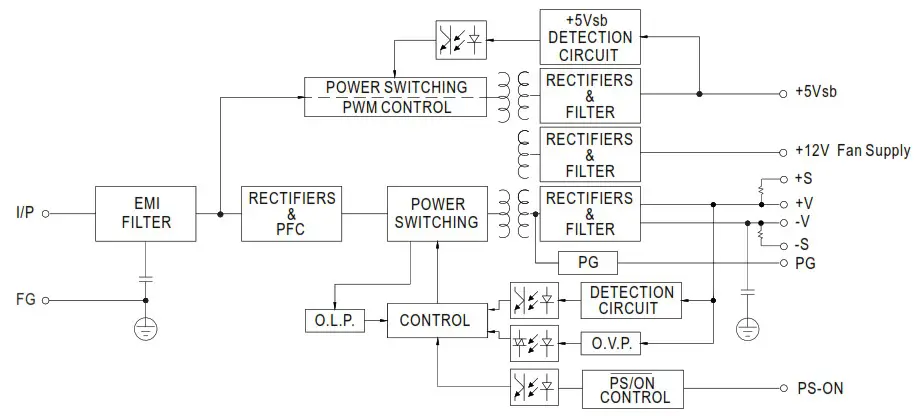

Block Diagram
PFC fosc : 90KHz
PWM fosc : 100KHz

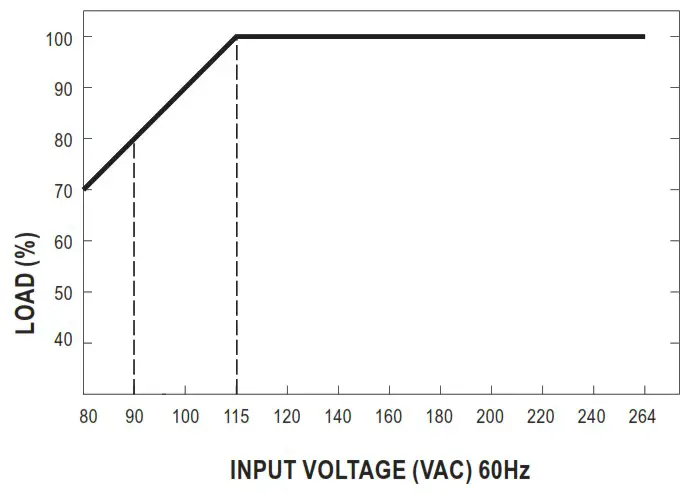

Output Derating vs Input Voltage

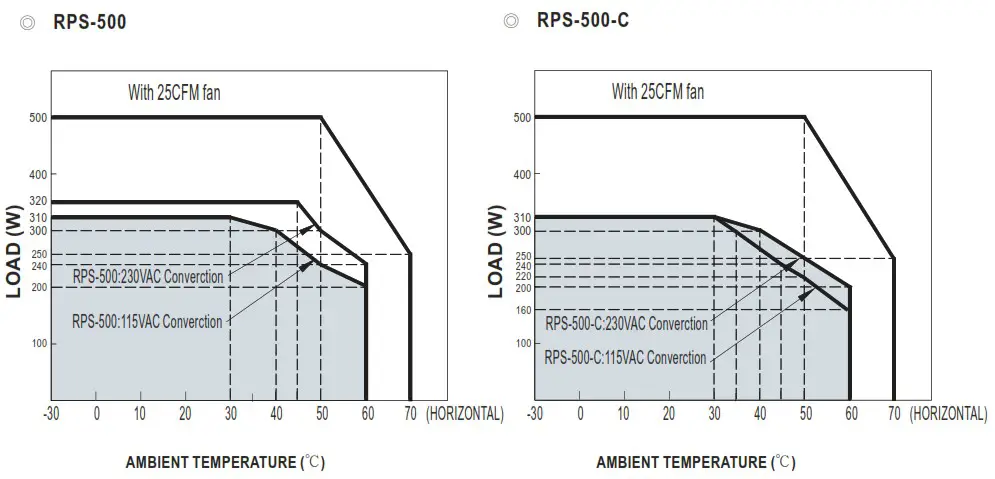

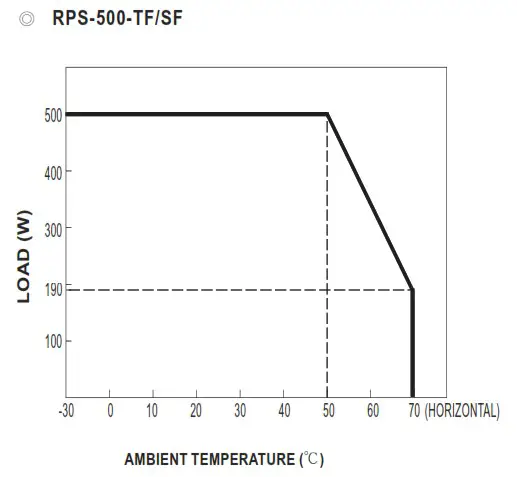

Derating Curve
| Order No. | RPS-500 | RPS-500-C | RPS-500-TF | RPS-500-SF |
| Products |  |  |  |  |
| Convection | 320W | 310W | — | — |
| Force Air | 500W | 500W | 500W | 500W |
Mechanical Specification

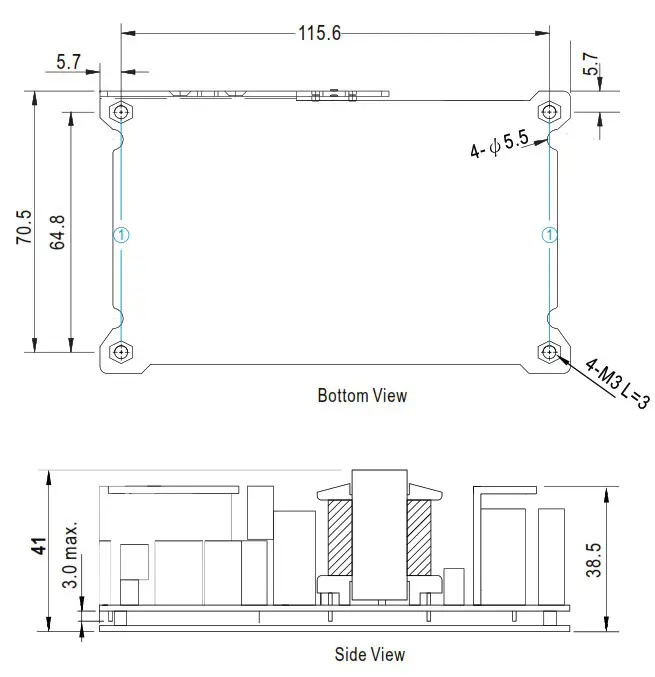

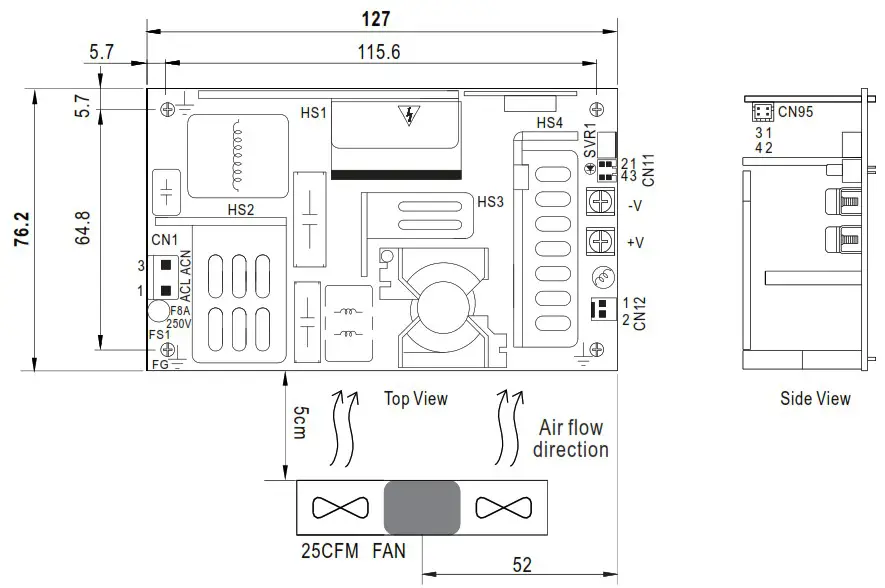

RPS-500 (PCB Type)

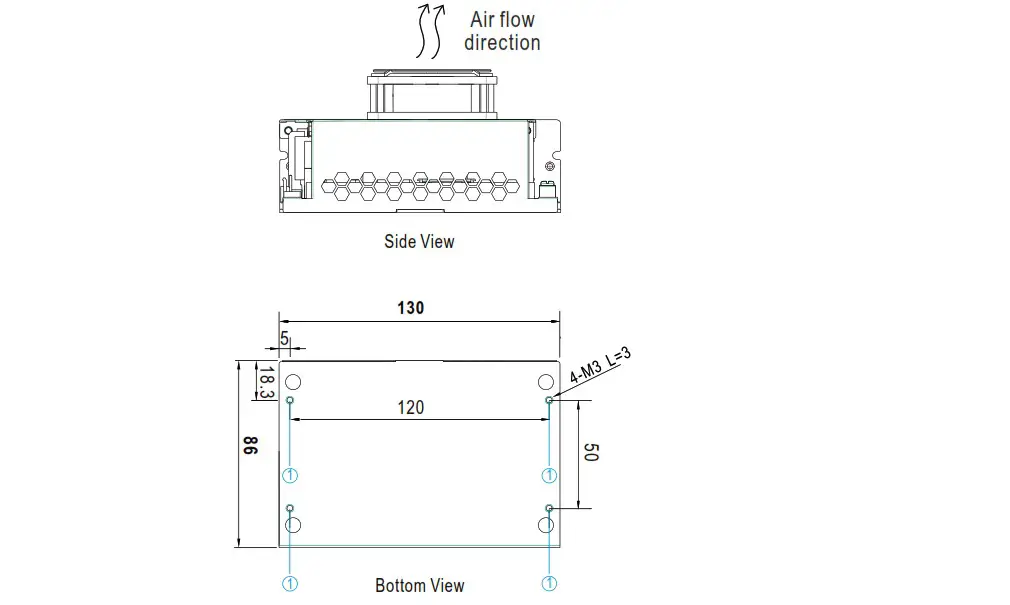

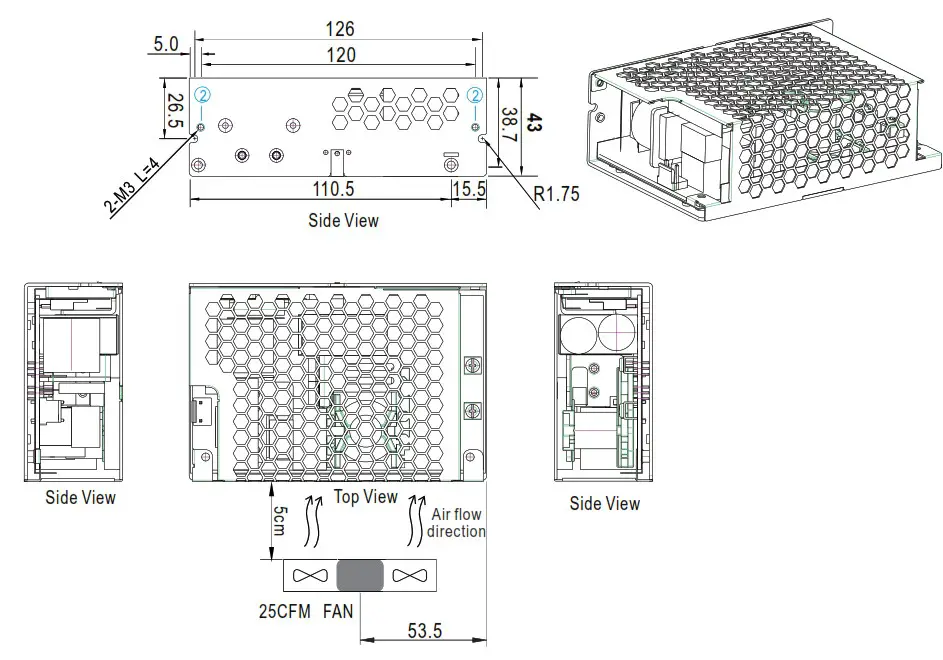

RPS-500-C (Enclosed type)
Case No. 247C-T 269A-D Unit:mm

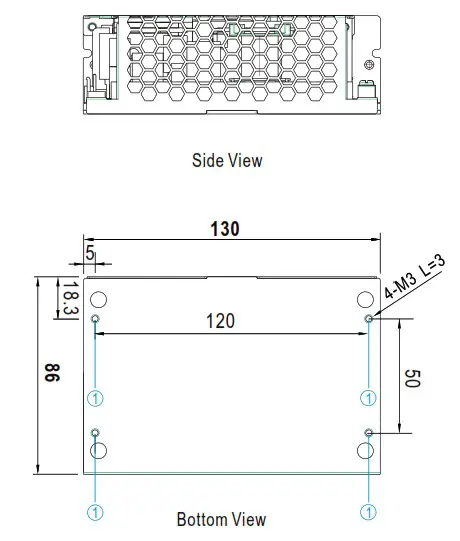

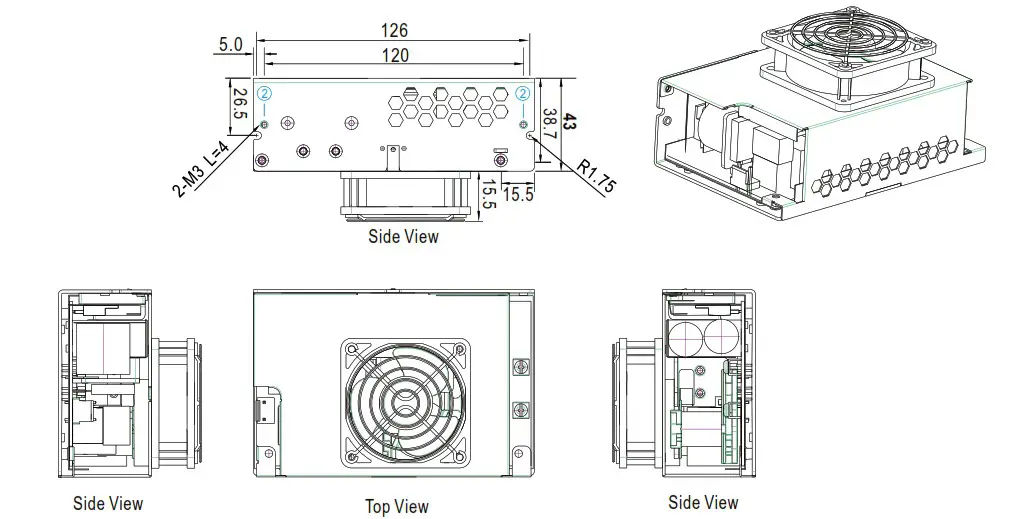

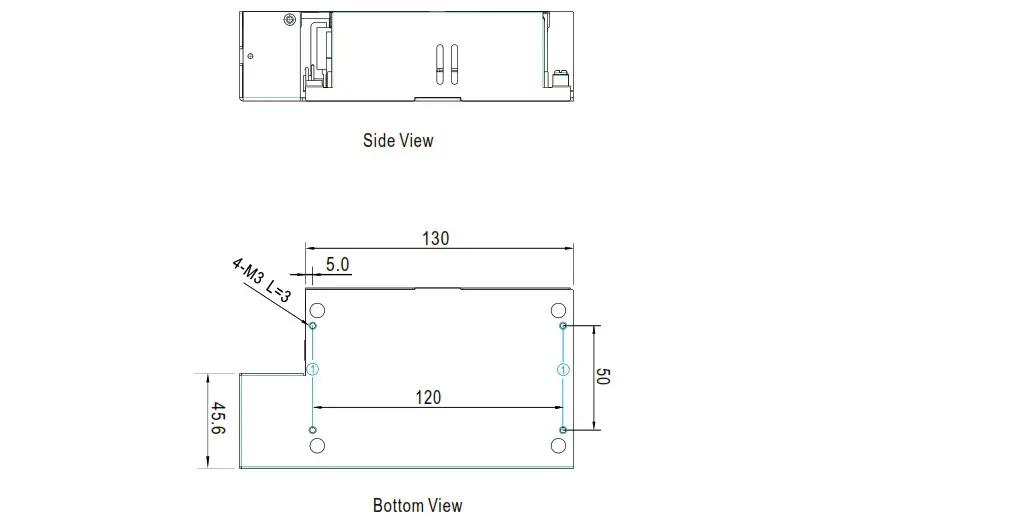

RPS-500-TF (Enclosed type with fan on the top)
Case No. 269A-D 247D-T Unit:mm

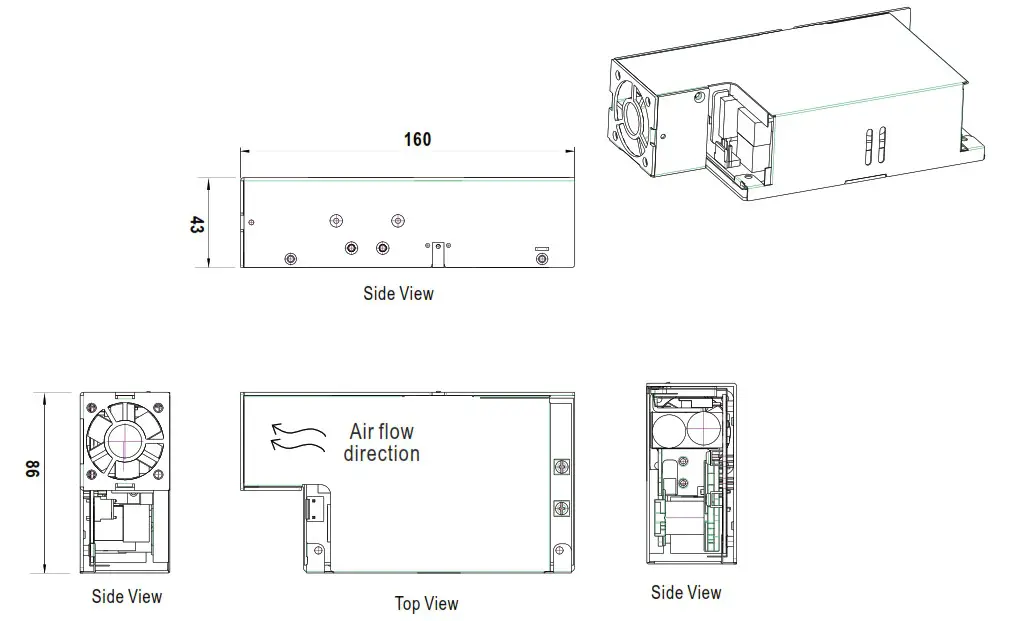

RPS-500-SF (Enclosed type with fan on the side)
Case No. 248B Unit:mm

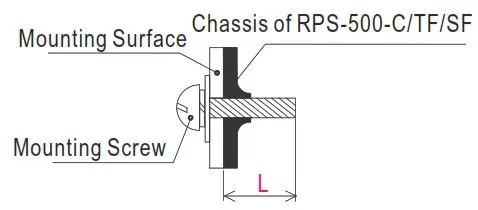

※ Mounting Instruction for -C -TF SF Type
| Hole No. | Recommended Screw Size | MAX. Penetration Depth L | Recommended mounting torque |
| 1 | M3 | 3mm | 4~ 6 Kgf-cm |
| 2 | M3 | 4mm | 4~ 6 Kgf-cm |
※ CONNECTION
AC Input Connector (CN1) : JST B3P-VH or equivalent
| Pin No. | Assignment | Mating Housing | Terminal |
| 1 | AC/L | JST VHR or equivalent | JST SVH-21T-P1.1 or equivalent |
| 2 | No Pin | ||
| 3 | AC/N |
DC Output Connector (CN2,CN3)
| Pin No. | Assignment | Output Terminals |
| CN2 | -V | M3.5 Pan HD screw in 2 positions Torque to 8 lbs-in(90cNm)max. |
| CN3 | +V |
HS1,HS2,HS3,HS4 can not be shorted
Function Connector(CN11): TKP DH2I-2X2 or equivalent
| Pin No. | Assignment | Mating Housing | Terminal |
| 1 | -S | TKP DH2 or equivalent | TKP or equivalent |
| 2 | +S | ||
| 3 | DC COM | ||
| 4 | PG |
Function Connector(CN95): TKP DH2L-2X2 or equivalent
| Pin No. | Assignment | Mating Housing | Terminal |
| 1 | 5Vsb | TKP DH2 or equivalent | TKP or equivalent |
| 2,4 | DC COM | ||
| 3 | PS-ON |
FAN Connector(CN12) : TKP 8812-2 or equivalent (Except for RPS-500-TF/SF)
| Pin No. | Assignment | Mating Housing | Terminal |
| 1 | DC COM | TKP 2502 or equivalent | TKP 8811 or equivalent |
| 2 | +12V |
※ Note:
- The enclosed type (-C/TF/SF type) models are not suitable for configuration within a Class Ⅱ (without FG) system, but suggested within a Class Ⅰ (with FG) system.
- Mounting Instruction for enclosed type.
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
File Name:RPS-500-SPEC 2022-09-20
MEAN WELL Switching Power Supply Manufacturer
