D14MZ2 IPK-14GPM Industrial Plumbing Kit
Product Information

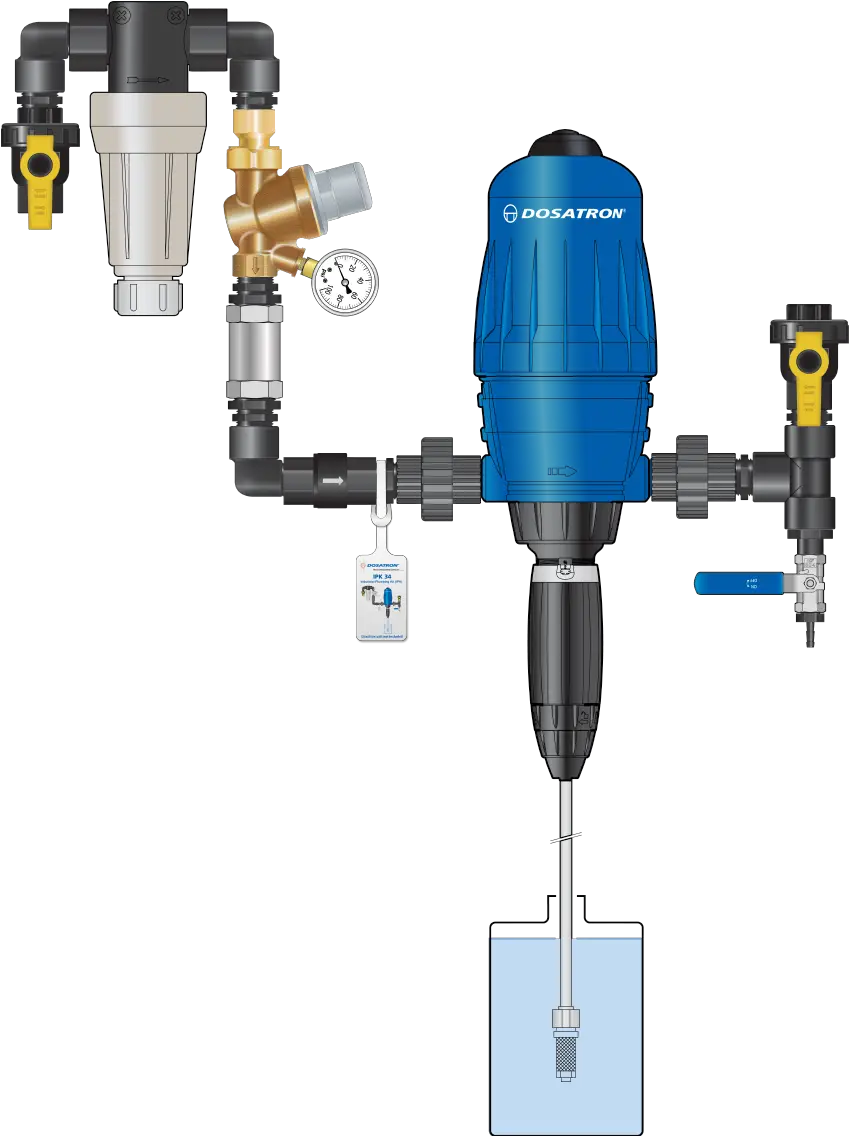

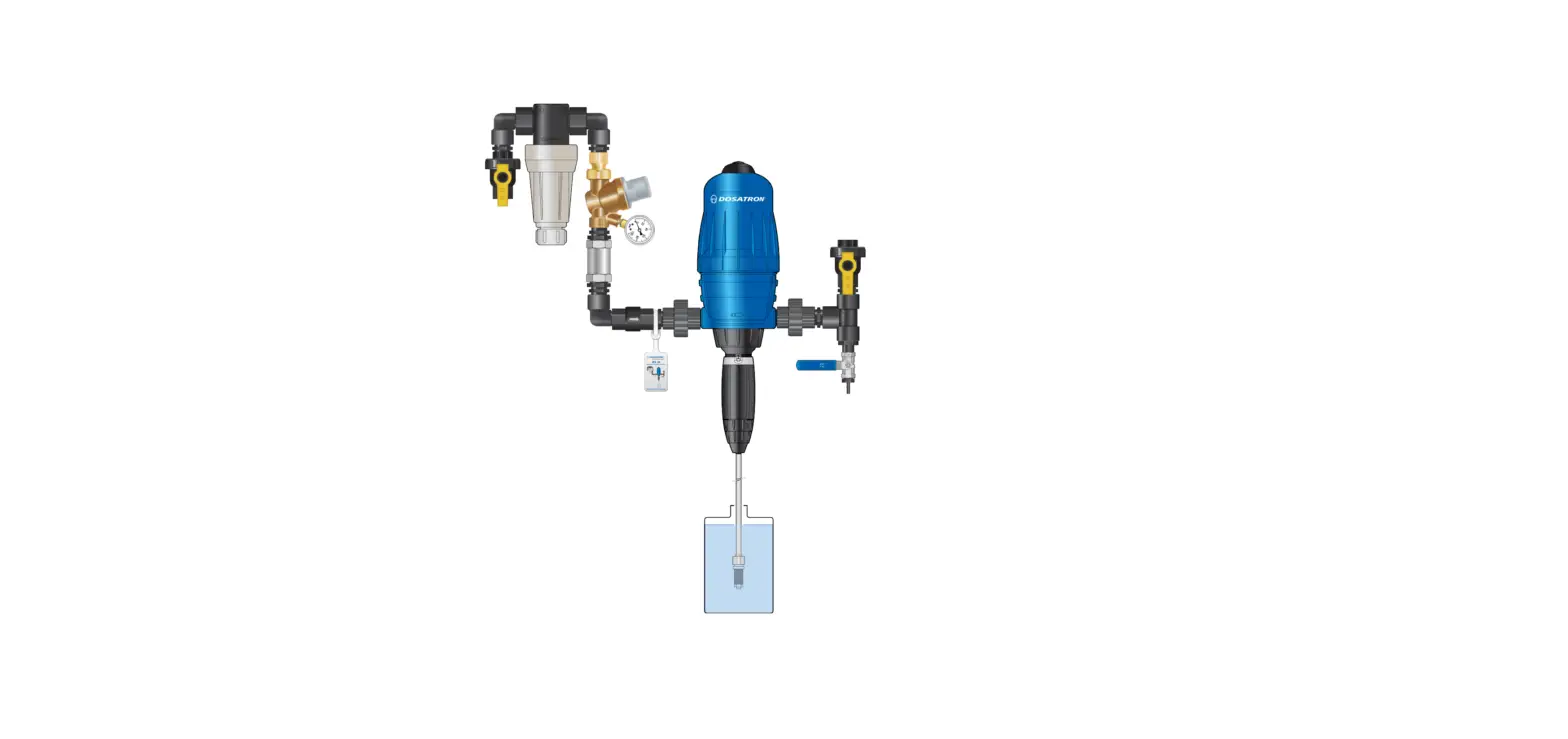

The IPK34 – 14 GPM Industrial Plumbing Kit is designed for use with Dosatron units D14MZ2, D14MZ5, D14MZ10, and D14MZ3000. It includes various polypropylene and stainless steel valves, filters, regulators, and fittings for assembling the plumbing system. The kit also comes with an instruction card for easy setup and installation.
Product Usage Instructions
Quick Priming
- Shut off outlet ball valve
- Insert injection hose into the chemical container
- Turn on the stainless steel ball valve (collect discharged solution or send it to drain)
- Observe the injection hose. When full, count 10 clicks
- Shut off stainless steel ball valve
- Turn outlet ball valve on
Sample Collection
- Make sure the unit is primed
- Shut off outlet ball valve
- Turn stainless steel ball valve on
- In a clean container, collect 2.5 gallons of diluted solution
- Shut off stainless steel ball valve
- Collect sample out of the 2.5 gallons and check concentration
- Turn on the outlet valve
Assembly Instructions
- Wrap all male fittings with 5 – 6 turns of Teflon tape if white, only 3 – 4 turns if pink or blue tape.
- Install the following parts with their arrows pointing in the direction of the flow: Check valve, Filter, Pressure regulator
- Attach the instruction card to the injector.
Note: When connecting a Dosatron either to the public water supply or to its own water source, you must respect the regulations in force concerning protection of the source i.e. backflow prevention, etc. Parts ordered, or pictured, may look slightly different than the image displayed, but the fit and function will be the same.
ASSEMBLY
For quick priming (helpful at low water flows):
- Shut off outlet ball valve
- Insert injection hose into the chemical container
- Turn on the stainless steel ball valve (collect discharged solution or send it to drain)
- Observe the injection hose. When full, count 10 clicks Shut off stainless steel ball valve
- Turn outlet ball valve on
For sample collection
- Make sure the unit is primed
- Shut off outlet ball valve
- Turn stainless steel ball valve on
- In a clean container, collect 2.5 gallons of diluted solution Shut off stainless steel ball valve
- Collect sample out of the 2.5 gallons and check concentration Turn on the outlet valve
INSTRUCTIONS
- Wrap all male fittings with 5 – 6 turns of Teflon tape if white, only 3 – 4 turns if pink or blue tape.
- Install the following parts with their arrows pointing in the direction of the flow:
- Check valve
- Filter
- Pressure regulator
- Attach the instruction card to the injector.
What Includes

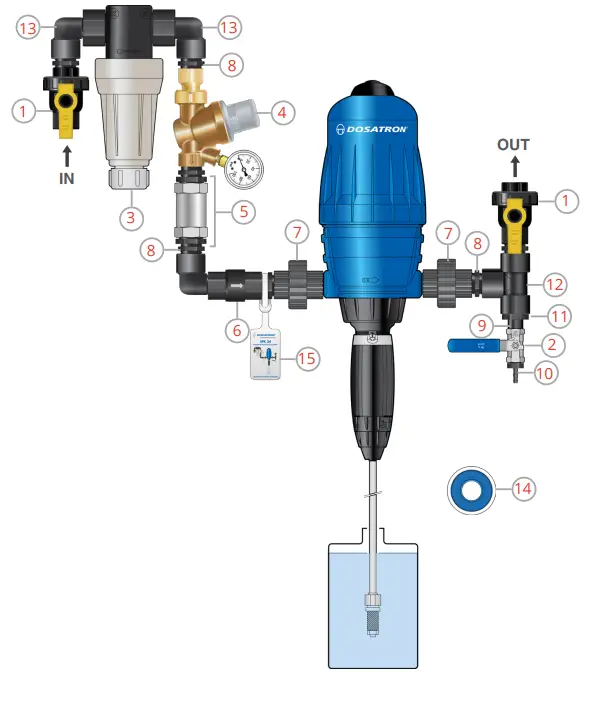

| Qty | IPK34 – 14 GPM Includes: | # |
| 2 | 3/4” polypropylene single union ball valve | 1 |
| 1 | 1/2” stainless steel ball valve | 2 |
| 1 | 3/4” polypropylene 200 mesh tee filter | 3 |
| 1 | 3/4” pressure regulator w/gauge | 4 |
| 1 | 1” flow restrictor 14 GPM | 5 |
| 2 | 1” to 3/4” reducer bushings | 5 |
| 1 | 3/4” polypropylene check valve | 6 |
| 2 | 3/4” union schedule 80 PVC | 7 |
| 7 | 3/4” x 2” polypropylene fittings | 8 |
| 1 | 1/2” x 2” polypropylene fitting | 9 |
| 1 | 1/2” x 1/2” barb fitting | 10 |
| 1 | 3/4” male to 1/2” female reducer bushing | 11 |
| 1 | 3/4” Tee | 12 |
| 3 | 3/4” street elbows | 13 |
| 1 | Roll of thread tape | 14 |
| 1 | Instruction card | 15 |
warning: When connecting a DOSATRON either to the public water supply or to its own water source, you must respect the regulations in force concerning protection of the source i.e. backflow prevention, etc.
NOTE: Parts ordered, or pictured, may look slightly different than the image displayed, but the fit and function will be the same.
