Brita Purity 1200 Clean Extra Complete Demineralization Water Softener Instruction Manual

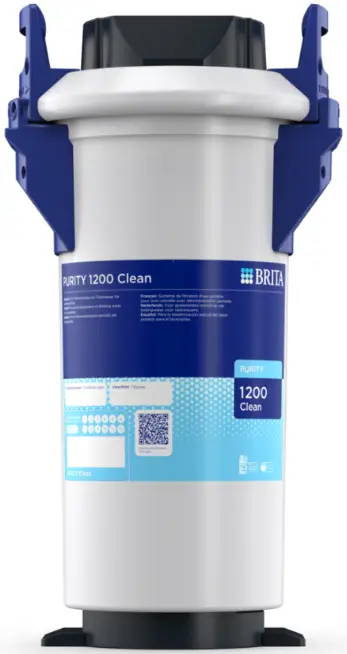

PURITY 1200 Clean
PURITY 1200 Clean Extra
Water Filter System
Instruction Manual

PURITY 1200 Clean Extra Complete Demineralization Water Softener

ATTENTION!

	PURITY	450	600	1200
	450	✔	X	X
	600	X	✔	X
	1200	X	X	✔

The PURITY replacement cartridge may only be used in combination with the pressure vessel that has been specifically designed for its size.

Definition of Terms

General Information

2.1 Function and Application
The BRITA PURITY 1200 Clean and PURITY 1200 Clean Extra Water Filter Systems optimise tap water for dishwashers for glasses, cutlery and crockery by means of partial or full demineralisation.
In the BRITA PURITY 1200 Clean calcium and magnesium ions are selectively removed from the drinking water via an ion exchanger using the flow method. This prevents residues on the dishes during drying due to carbonate hardness and scale deposits on important machine parts. This means that the dishwashers have a greatly increased service life.
Furthermore, BRITA PURITY 1200 Clean Extra guarantees elimination of all salts in the water by means of full demineralisation of the tap water, preventing them from being deposited on glasses and cutlery.
2.2 Guarantee Provisions
The PURITY 1200 Clean and PURITY 1200 Clean Extra filter systems are subject to the statutory guarantee of 2 years. A guarantee claim may be asserted only if all instructions in this Handbook are followed and observed.
2.3 Storage/Transport
Adhere to the ambient conditions in the Technical Data (Chapter10) for storage and transport.
The handbook should be seen as part of the product and kept for the whole service life of the filter system and passed on to subsequent owners.
2.4 Recycling/Disposal
By disposing of this product and its packaging in the correct manner you are helping to prevent potential negative impacts on people and the environment that could be caused by incorrect disposal. Comply with local regulations and bring the units to be disposed of to a proper recycling facility at the collection points provided.
Exhausted filters are taken back by BRITA at the addresses listed on the back of the cover.

Operating and Safety Information

3.1 Qualified Personnel
Installation, filter replacement and maintenance of the filter system may be carried out only by specialist staff.
3.2 Correct Use
The product can only be operated properly and safely if it is installed, used and serviced in the manner described in this Manual. Use only cartridges suitable for this appliance.
Note: the PURITY Clean/Clean Extra filter system and system-specific filter cartridges may only be used upstream from compatible end devices such as dishwashers for glasses, cutlery and crockery.
3.3 Liability Exclusion
Installation must be carried out in accordance withthe instructions in this Manual. BRITA shall not be held liable for any damage, including subsequent damage, arising from the incorrect installation or use of the product.
3.4 Specific Safety Information

• Only drinking water within the intake water temperature range listed in Chapter 10 may be used as intake water for the BRITA water filter system. No microbiologically impaired water or water of unknown microbiological quality may be used without appropriate sterilisation.
• For reasons of flavour, the filtered water is not suitable for the preparation of food and drinks.
• If there is an official requirement of boil tap water, decommission the filter system. When the requirement to boil water comes to an end, the filter cartridge must be replaced and the connections cleaned.
• BRITA recommends that the filter system shall not be decommissioned for a long period. If the BRITA filter system is not used for several days (2–3 days), we recommend that the PURITY Clean filter system be flushed with at least 24 litres. After stagnation periods of over 4 weeks, the filter should be flushed with at least 120 litres or else replaced. Please also note the maximum usage period of the filter cartridge is 12 months (Chapter 6).
• The filter system is not resistant to heavily concentrated cleaning agents (e.g. bleach, chlorinated solvents, heavy oxidants) and must not come into contact with them.
• The filter system must not be opened or dismantled during operation. The filter cartridge must not be opened.
• The pressure vessel and the pressure vessel lid of the filter systems have a service life of up to ten years (from the date of installation), provided that they are installed and used correctly and the operating conditions outlined in the Technical Data chapter are adhered to. They must always be replaced after a maximum of ten years. The hoses must be replaced in rotation after a maximum of five years.
• Production date:

Production code sticker filter cartridge and packaging – Example: 315645  D  19150020010
315645	Article number
D	Production site  (Deutschland/Germany)
19	Production year, here: 2019
15	Production week, here: calendar week 15
2	Batch No. filter medium, here the second batch filled in terms of quantity
10	Serial number of the filter cartridge, here the tenth cartridge from the second batch

Production date pressure vessel and pressure vessel lid – Example: 0319 Production date pressure vessel and pressure vessel lid – Example: 0319
3	Production month, here: March
19	Production year, here: 2019

3.5 Technical Safety Assembly Instructions

• The terminal device operated with the filter must be free of limescale prior to installation. Caution: No water softening system may be operated upstream from the filter system.
• Protect the filter system from sunlight and mechanical damage. Do not assemble near sources of heat and open flames.
• A stop valve must be installed before the filter system intake hose.
• If the water pressure is higher than 6 bar, a pressure reducer must be installed before the filter system.
• A non-return valve tested by the DVGW has been factory-installed at the water intake of the filter head.
• No copper pipes and no galvanised or nickel-plated pipes/connectors may be installed between the water filter and the consumer. The use of Brita hose sets is recommended here. When choosing the material for parts that come into contact with water after the BRITA filter system it must be remembered that, due to the process, decarbonised and/or fully demineralised water contains free carbon dioxide.
• All parts must be installed in accordance with the country-specific guidelines on the installation of drinking water facilities.

Installation

Caution: Prior to installation read the technical data (Chapter 10) and the operating and safety information (Chapter 3). After the product has been stored at temperatures below 0 °C, it must be stored (with the original packaging open) at the ambient temperature of the place of installation for at least 24 hours before use.
4.1 Scope of Delivery
Prior to installation, remove the entire delivery scope from the packaging and check that everything is there:

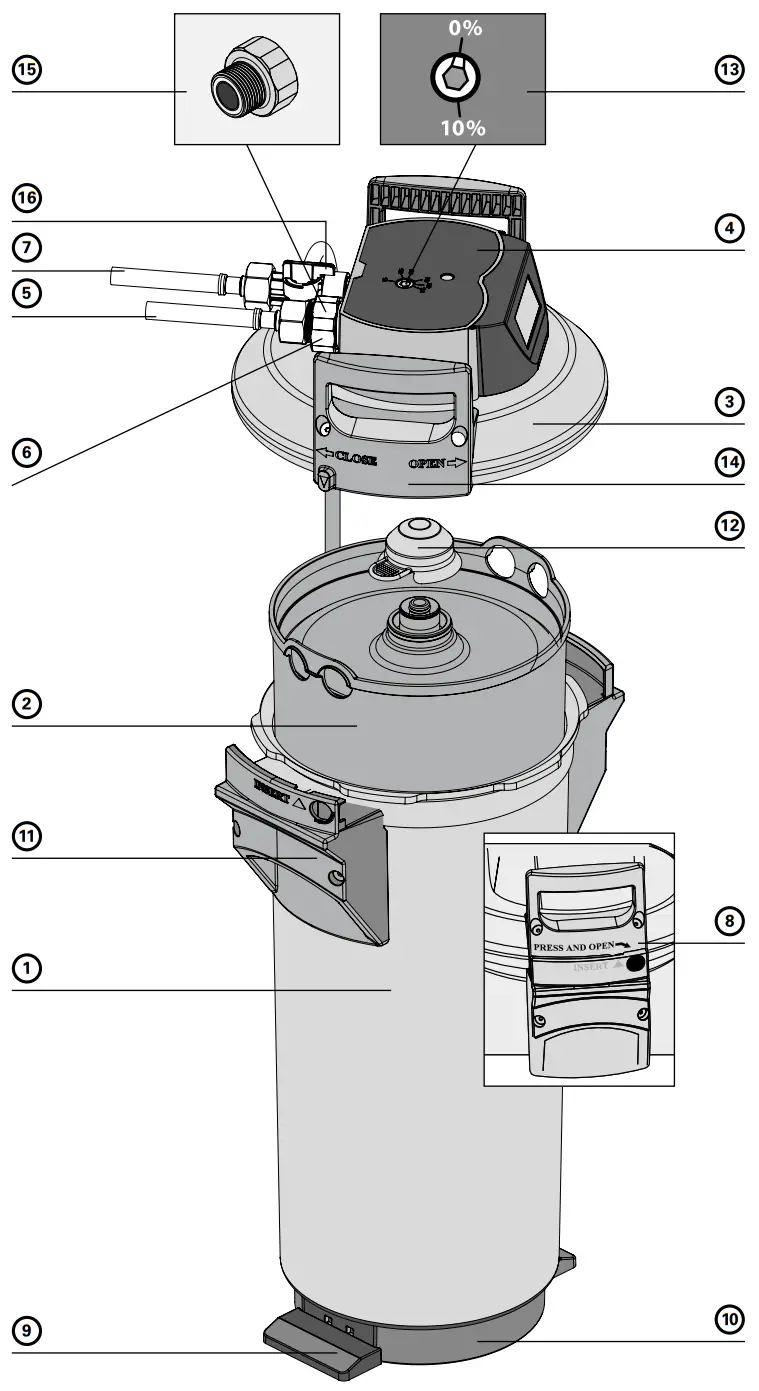

1x pressure vessel 1
1x pressure vessel lid 3
1x filter cartridge 2 , Note: Blue marking on PURITY 1200 Clean filter cartridge, Red marking on PURITY 1200 Clean Extra filter cartridge.
1x manual
1x carbonate hardness test or total hardness test
1x sticker for Service Pass, Note: Light blue sticker for PURITY 1200 Clean, red sticker for PURITY 1200 Clean Extra.
1x reducer 1″– 3/4″
1x flush valve with flush hose
If part(s) of the delivery scope are missing, please contact your local BRITA Office (see back of cover).
4.2 Assembly of the pressure vessel and the pressure vessel lid

• Stand on the kick loops 9 with both feet.

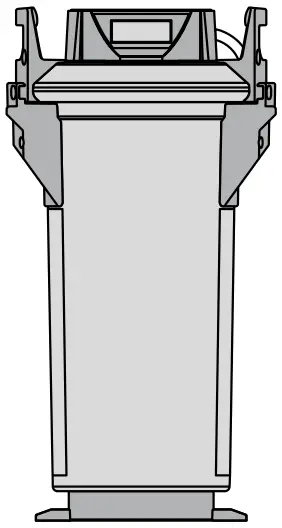

• Lift the pressure vessel 1 and turn it clockwise until the mantle handles 11 are over the kick loops 9 .
• Remove the transport protective cap 12 from the filter cartridge.

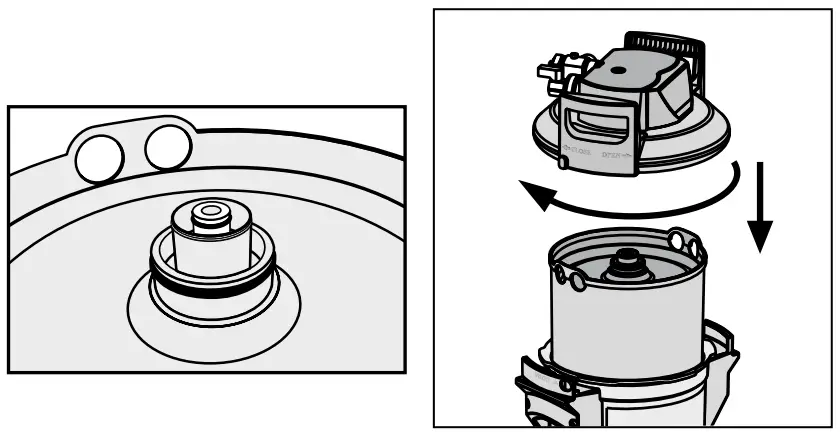

• Check the O-ring seal of the filter cartridge 2 for correct seat in the groove, dirt and damage. Note: The cartridge seat has been lubricated with food-safe lubricant at the factory.

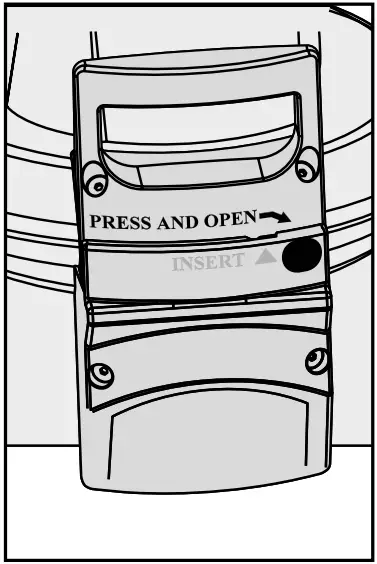

• Stand on the kick loops 9 with both feet and place the pressure vessel lid 3 on the pressure lid 1 . The positioning of the arrow marking on the lid handle 14 must line up with the “INSERT” groove.

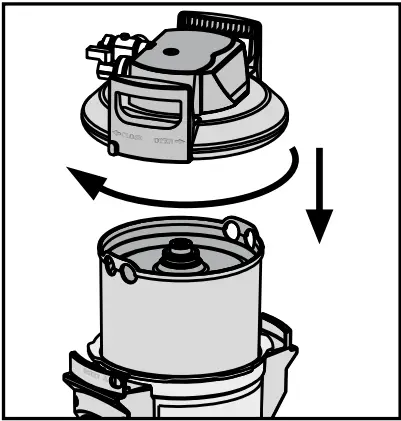

• Press the pressure vessel lid 3 down and turn clockwise until the lock engages 8 .

4.3 Assembly of inlet and outlet hoses
Note: The inlet and outlet hoses are not included in the standard scope of delivery. The use of BRITA hose sets is recommended (Chapter 11).

• Fit inlet hose 5 at the inlet of the connector head 4 and outlet hose 7 at the outlet of the connector head 4 .
  Note: Inlet “IN” and outlet “OUT” of the connector head 4 are equipped with O-rings as seals, therefore no additional flat seals may be used here. Make sure that the O-rings are seated correctly.

Caution: The max. tightening torque at the 1″ and 3/4″ connections must not exceed 15Nm! Only hose connections with flat seals may be used. Hoses with conical screw
connections damage the connections of the filter head and invalidate any guarantee claims! Before assembly, note the direction of flow on the upper side of the filter head, IN = water inlet, OUT = water outlet. Prior to installation, note installation dimensions and operating position (Chapter 10). If no original hoses are used, the 1″- 3/4″ 15 reducer supplied must be used to ensure correct sealing of the return valve.

Commissioning a New Filter

5.1 Setting the Bypass

• The bypass setting screw 13 has been set to 0% at the factory and, if necessary, can be increased to 10% according to the local water quality or application in question. If you have any questions about water quality, your supplier or your contact at BRITA will advise you.
  Note: Use Allen key 6mm or 7/32″ to adjust the bypass setting screw 13 .

5.2 Identifying the Filter Capacity

• Identify the local carbonate hardness or total hardness using the enclosed carbonate hardness or total hardness test kit.
• Identify the filter capacity using the capacity tables (Chapter 7) taking account of the carbonate or total hardness identified and the bypass setting (Chapter 5.1).

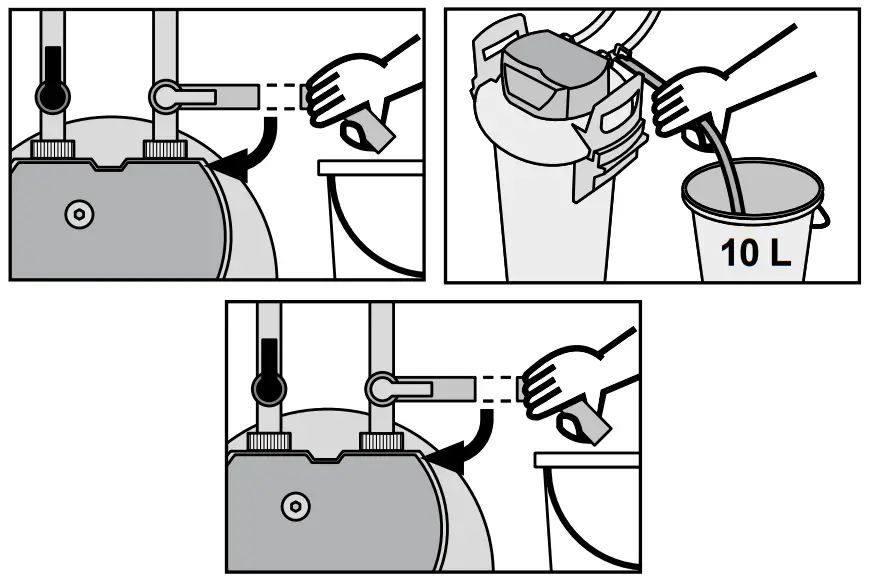

5.3 Flushing and Bleeding the Filter Cartridge
Note: A bucket with a minimum capacity of 10L is needed for flushing/bleeding.

• Place the bucket under the flush hose and open the flush valve 16 .
• Open the inlet valve 6 on inlet hose 5 while holding the flush hose in the bucket. Flush with at least 10 litres.
• Close the flush valve 16 and empty the bucket.
• Check system for any leaks.
• Note installation date of the filter system on pressure vessel 1 and next exchange date on the enclosed sticker (PURITY 1200 Clean: light blue sticker, PURITY 1200 Clean Extra: red sticker) and attach it to the Service Pass on the pressure vessel 1 .

Exchanging the Filter Cartridge

Caution: Filter replacement and maintenance of the filter system may be carried out only by specialist staff.
Caution: The PURITY replacement cartridge may only be used in combination with the pressure vessel that has been specifically designed for its size. See cover.
The filter cartridge must be replaced after 6–12 months, subject to a usage intensity customary in the industry, at the latest 12 months after commissioning, irrespective of the level of exhaustion of the filter system. If the capacity of the filter cartridge has been exhausted (Chapter 7), it must be replaced earlier.
Caution: During the exchange, carefully examine all dismantled parts! Faulty parts must be exchanged, dirty parts cleaned! Read the operating and safety information (Chapter 3) prior to replacement. After the product has been stored at temperatures below 0 °C, it must be stored with the original packaging open at the ambient temperature of the place of installation for at least 24 hours before entering use.

6.1 Removing the Filter Cartridge

• Switch off the power supply of the terminal equipment (remove plug).
• Close the inlet valve 6 at the inlet hose 5 .
• Place the flush hose in a bucket and remove pressure from the filter system by opening the flush valve 16 . Collect waste water in the 10L bucket.
  Note: If the escaping water is more than 1 litre, the inlet value 6 is not completely closed or is blocked with scale.
• Stand on the kick loops 9 with both feet while opening the pressure vessel lid 3 by pressing the lock 8 and turning it anti-clockwise as far as it will go.
• Place the pressure vessel lid 3 vertically on the lid handle 14 .
• Stand on the kick loops 9 with both feet while turning the pressure vessel 1 anti-clockwise by the mantle handles 11 as far as it will go.
• Take your feet off the kick loops 9 and press the pressure vessel 1 down with both hands on the mantle handles 11 .
• Remove used filter cartridge 2 from the pressure vessel 1 .
• Place the used filter cartridge 2 in the sink with the connection facing down for drainage (> 5 min).
• Lock the used filter cartridge 2 with the transport protection cap 12 of the new filter cartridge and return in the original packaging to the appropriate BRITA address listed on the back of the cover.

6.2 Inserting the Filter Cartridge

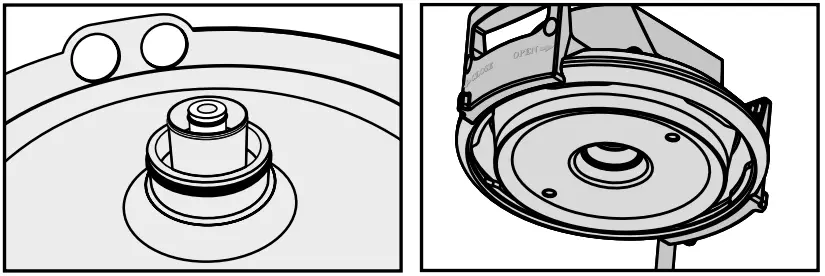

• Check the O-ring seal of the new filter cartridge 2 for correct seat in the groove, dirt and damage. Note: The cartridge seat has been lubricated with food-safe lubricant at the factory.
• Check the connector seat of the filter cartridge O-ring 2 in the pressure vessel lid 3 for dirt and damage.

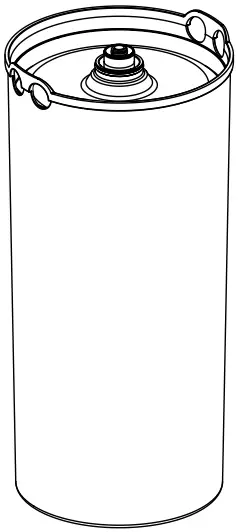

• Place new filter cartridge 2 in the pressure vessel 1 .
• Stand on the kick loops 9 with both feet; lift the pressure vessel 1 whole turning clockwise until the mantle handles 11 are over the kick loops 9 .
• Stand on the kick loop 9 with both feet and place the pressure vessel lid 3 on the pressure vessel 1 . The positioning of the arrow marking on the lid handle 14 must line up with the “INSERT” groove.
• Press the pressure vessel lid 3 down and turn clockwise until the lock engages 8 .
• Switch on electrical power supply to the terminal device.
• Execute the steps described under 5.3 to flush and bleed the new filter cartridge 2 .

Filter Capacity

Capacity Tables

Note: The stated capacities were tested and calculated based on standard application and machine conditions. This information may vary according to external influencing factors (for example fluctuating water quality and/or machine type).

Repair

Regularly check the filter system for leaks. Regularly check the hoses for kinks. Bent hoses must be replaced.
The complete filter system must be replaced in rotation after a maximum of ten years.
The hoses must be replaced in rotation after a maximum of five years.
Caution: Prior to exchange read the technical data (Chapter 10) and the operating and safety information (Chapter 3).
Regularly clean the outside of the filter system with a soft, damp cloth.
Caution: Do not use any substances incompatible with the material (Chapter 3.4) or astringent, abrasive cleaning agents.

Troubleshooting

9.1 No water flow
Cause: Water intake closed.
Troubleshooting: Open water intake on the upstream stop valve or inlet valve 6 on inlet hose 5 .
Caution: Installation and maintenance of the filter system may be carried out only by specialist staff.

9.2 No or low water flow in spite of open water intake
Cause: Mains pressure too low.
Troubleshooting: Check mains pressure.
If the fault continues to occur in spite of adequate mains pressure, check the filter system and filter cartridge and change if necessary.
Caution: Prior to exchange read the technical data (Chapter 10) and the operating and safety information (Chapter 3).

9.3 Leaking screw connections
Cause: Screwed connections not fitted correctly.
Troubleshooting: Check mains pressure. Check all screwed connections and mount according to Chapter 4.
If the fault continues, exchange filter system.
Caution: Prior to exchange read the technical data (Chapter 10) and the operating and safety information (Chapter 3).

9.4 Leak continues after filter has been replaced
Cause: O-ring on filter cartridge not sitting correctly.
Troubleshooting: Check correct seat of the O-ring (Chapter 6.2).
Caution: Prior to dismantling read the data (Chapter 10) and the operating and safety information (Chapter 3).

Technical Data

Order Numbers

BRITA PURITY 1200 Clean/PURITY 1200 Clean Extra
Caution: The PURITY replacement cartridge may only be used in combination with the pressure vessel that has been specifically designed for its size. See cover.

Notes
………………

http://www.brita.de/professional-filter-app

BRITA Professional Filter Service App
The new Filter Service App is your ideal assistant. This unique, comprehensive tool helps determine the right type and size of filter for your precise needs. It provides detailed installation guidance for service engineers, calculates when cartridges will need replacing – and has a wealth of other, innovative capabilities.
Download it for free on

or visit
https://professional.brita.net/app

Information in the manual are subject to change.
BRITA is a registerd trademark of BRITA SE, Germany.
1037674-03-ELA
