DOSATRON D14TMZ3000 Industrial Plumbing Kit
PRODUCT DESCRIPTION

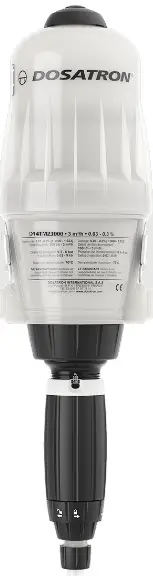

HOT-WATER Decatron D14TMZ3000-14 GPM is a precision water-powered unit that will operate with water temperatures up to 158 °F, for maximum cleaning effectiveness. Made of high-performance materials with a metal-free, re-enforced piston. High chemical compatibility
PRODUCT SPECIFICATIONS
| Dilution Range | 1:3000 to 1:333 (0.03% – 0.3%) |
| Water Flow Range | 0.05 to 14 GPM |
| Operating Pressure Range 4 | 4.3 to 85 PSI |
| Housing Material | PVDF |
| Dimensions | 19 1/18” x 6 5/16” |
| Weight | 8 lbs |
| Connection Size | 3/4” NPT |
| Maximum Temperature | 158 oF (70 oC) |
| Included Accessories | 6’ clear suction tube, strainer, weight, mounting bracket and quick start guide |
| Recommended Accessories | Pressure regulator, high-temperature 270 mesh filter, check valve, water hammer arrestor |
MAINTENANCE KITS
Injection Seal Kit (Part #: PJDl139) – For yearly maintenance

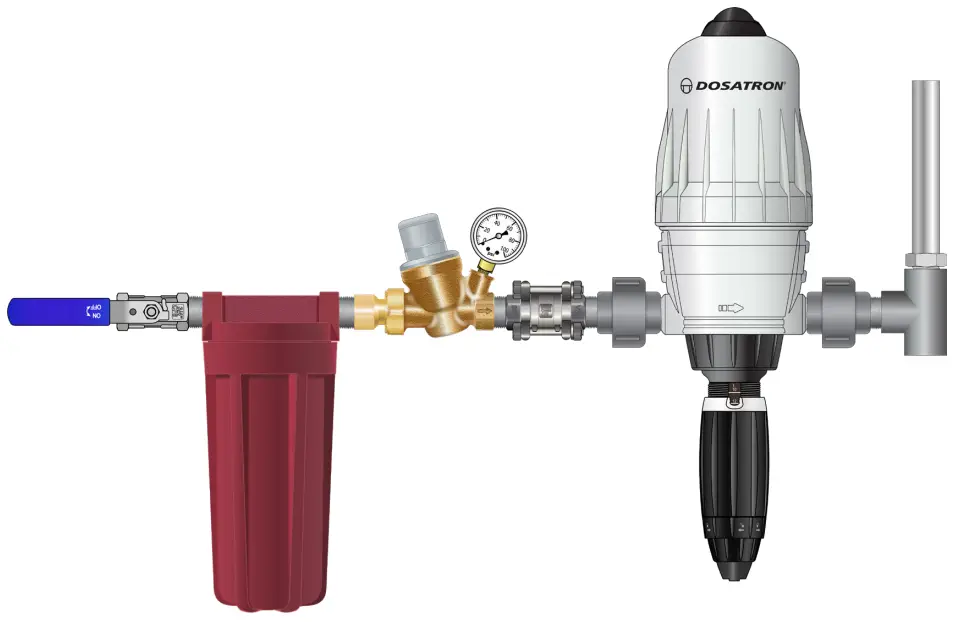

Recommended Installation for Industrial Applications
IPK34 – 14 GPM-HTEMP Industrial Plumbing Kit
- 3/4” stainless steel ball valve
- 3/4” stainless steel check valve
- 3/4” stainless steel water-hammer arrestor
- 3/4” brass pressure regulator w/gauge
- 3/4” CPVC high-temp filter
- 3/4” CPVC high-temp unions
- 3/4” CPVC high-temp close nipples
- 3/4” CPVC high-temp Tee
- Roll of thread tape
- Instructions card
CUSTOMER SUPPORT
Dosatron International
2090 Sunnydale Blvd. • Clearwater, FL, USA
800-523-8499 • www.dosatronusa.com
Dosatron International, LLC. is an industry leader in water-powered, proportional chemical injectors. Dosatron products are manufactured according to ISO 9001:2000 and ISO 14001:2004 standards.
