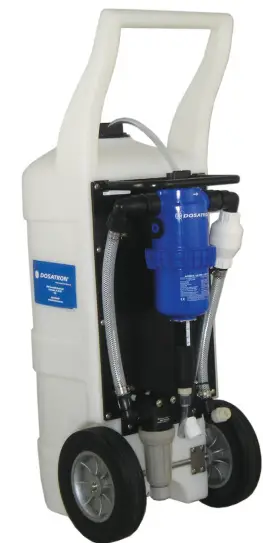

DOSATRON D45 Quick Hook-Up Kit Instruction Manual

Contents hide

(Dosatron unit sold separately)

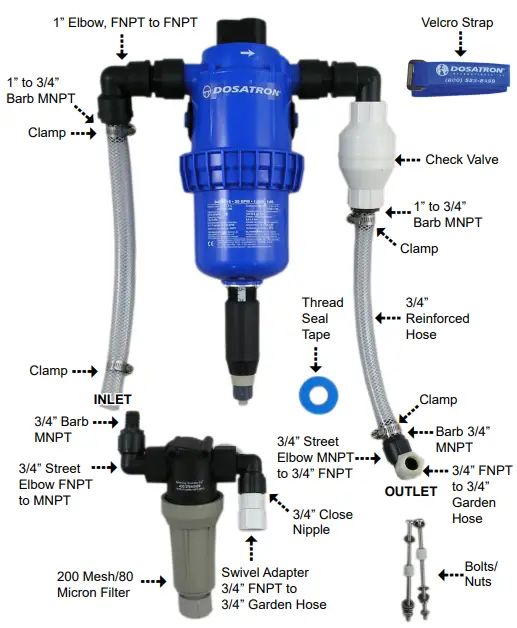

4 – Stainless Steel Clamp	1 – 1” Street Elbow FNPT to MNPT
2 – 3/4” Reinforced Hose	2 – Barb Fittings 3/4” MNPT
1 – 1” Elbow FNPT to FNPT	3 – 3/4” Street Elbow FNPT to MNPT
2 – Barb Fittings 1” to 3/4”	1 – 3/4” FNPT to 3/4” Garden Hose
1 – 3/4” Close Nipple	1 – Swivel Adapter 3/4” FNPT to 3/4” Garden Hose
1 – 200 Mesh/80 Micron Filter	1 – Thread Seal Tape
1 – Check Valve	1 – Velcro Strap
Set of Bolts/Nuts

NOTE:
Do not over tighten parts onto the blue inlet and outlet of the unit.

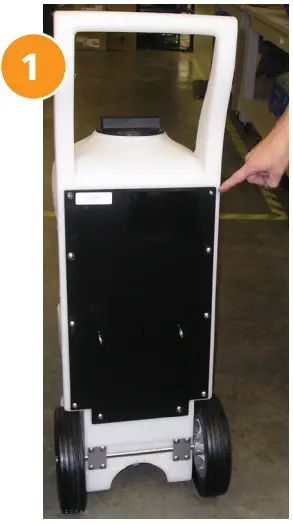

Remove the 10 screws from the back plate, to remove from the back of the Dosa Cart.

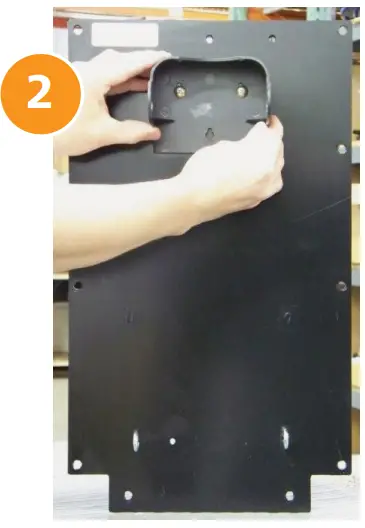

Attach the 20 GPM Dosatron unit bracket on the eyebolts, with the two screws and two nylon locking nuts provided in the hardware bag.

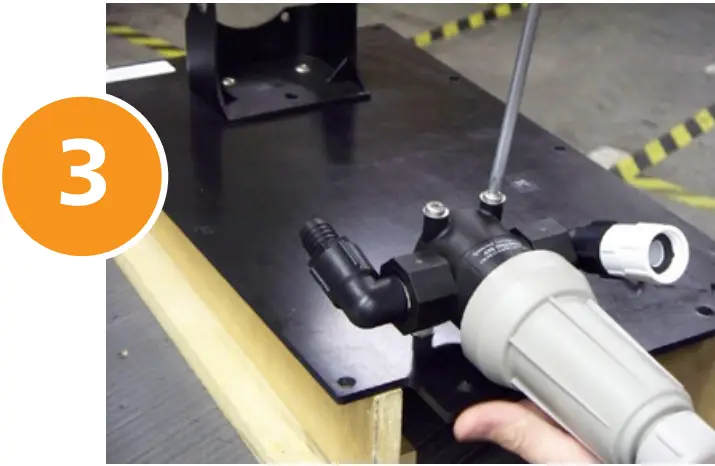

Attach the 200 mesh/80 micron filter 3 to the bottom left of the back of the plate.

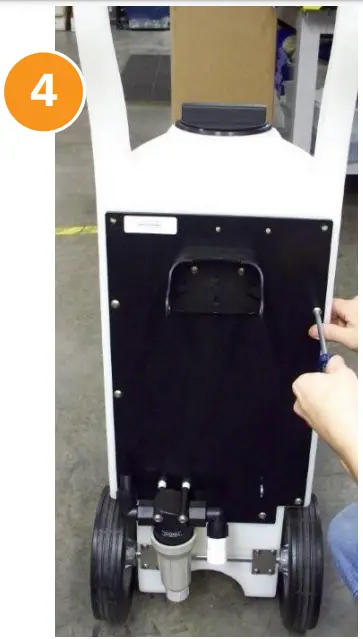

Re-attach the black plate back onto the Dosa Cart by installing eight screws around the plate except for the top two screws (these will be used for the crash bar, see step 9)

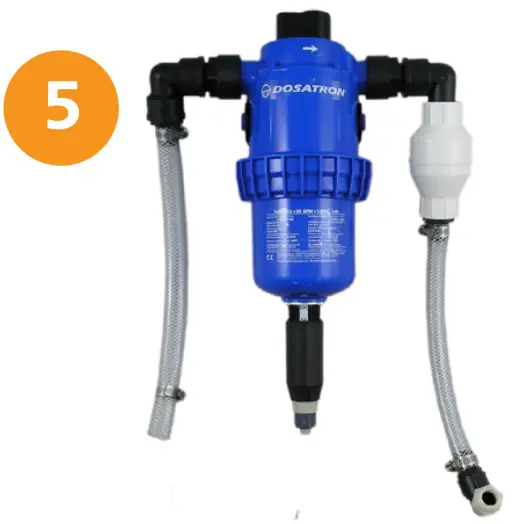

Using the instructions included, assemble the Quick Hook-up kit with the 20 GPM unit.

NOTE:
Be cautious not to use excessive force when attaching the fittings onto blue housing of the unit

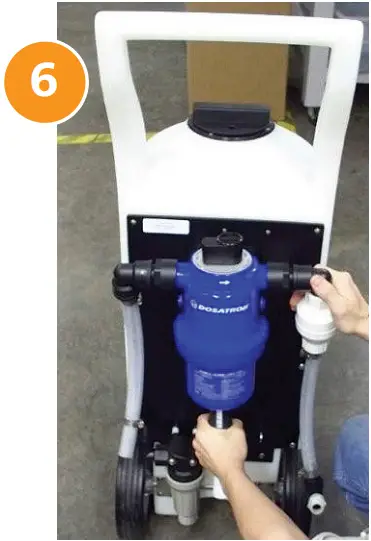

Attach the Dosatron unit and Quick Hook-Up Kit assembly onto the unit bracket.

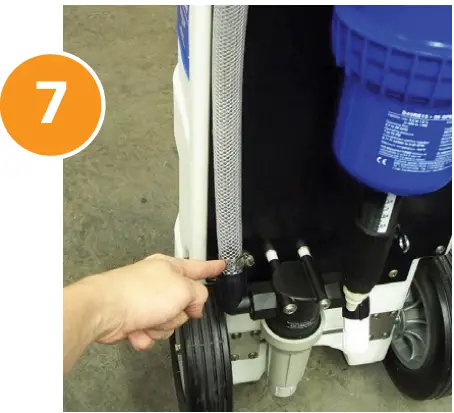

Insert the hose onto the filter barb and secure with the clamp.

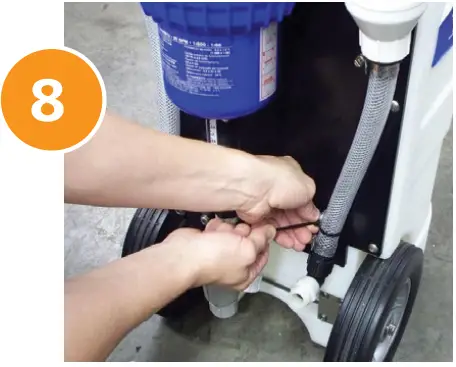

Secure the outgoing hose with a zip tie to the eye hook.

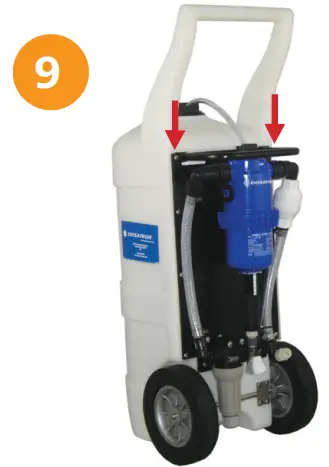

Attach the crash bar into place using the remaining two screws.
