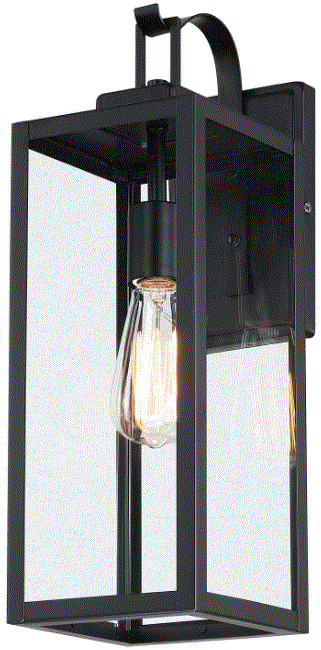

Hukoro F15151-11I-S Outdoor Wall Lantern Sconce
Product Information
This product is a light fixture that requires assembly and installation. The package includes a mounting unit, screws, wire nuts, and the fixture itself. The product requires additional tools such as a ladder, safety glasses, electrical screwdriver, Phillips screwdriver, flat blade screwdriver, pliers, and wire strippers for assembly. This product comes with an exploded parts diagram to aid in assembly.
Product Usage Instructions
- Begin by unscrewing the screws from the mounting unit. Use the mounting screws to attach the mounting unit to the junction box (not included).
- Make the electrical connection from the junction box (not included) to the fixture. Connect the ground wire to the mounting unit using the preinstalled green ground screw. Then, connect the positive, negative, and ground wires with the supplied wire nuts. Secure with electrical tape.
- Attach the fixture to the mounting unit through screw holes as shown and secure it with screws. Use caulk in the backplate and wall mounting surface to prevent water from entering.
- Install bulb (not included) into the fixture.
It is important to follow all safety instructions and use caution when assembling and installing this product. If further assistance is needed, please contact customer support via email at [email protected].
CAUTION
- Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have resulted during shipping. If there is a defect in the wire, do not attempt installation.
- Before starting installation of this fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse at the fuse box.

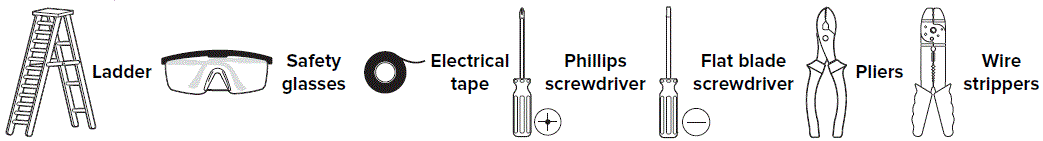

TOOLS REQUIRED

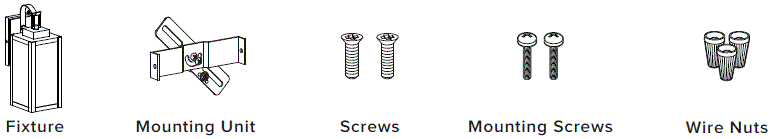

HARDWARE INCLUDED

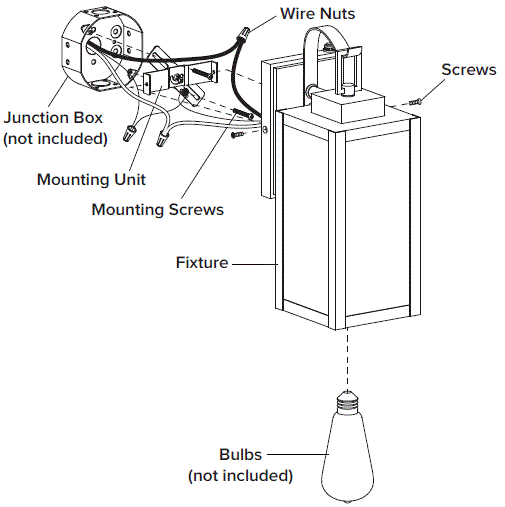

EXPLODED PARTS
- PARTS SHOWN MAY DIFFER SLIGHTLY PER LIGHT FIXTURE
INSTALLATION
STEP 1

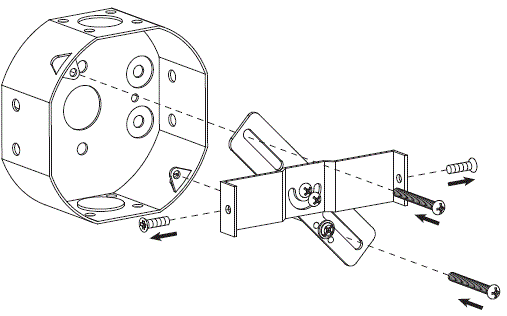

- Unscrew the screws from the mounting unit.
- Use the mounting screws to attach the mounting unit to the junction box (not included).
STEP 2

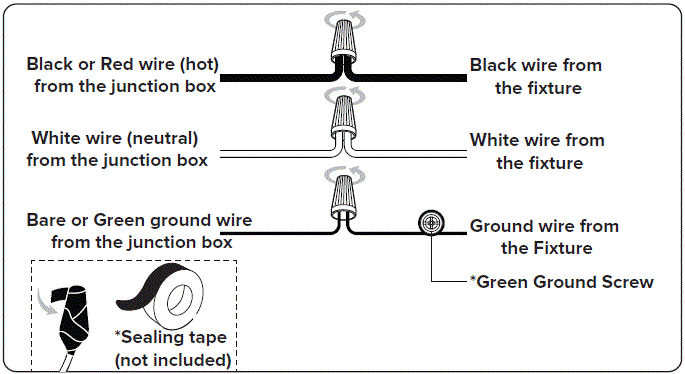

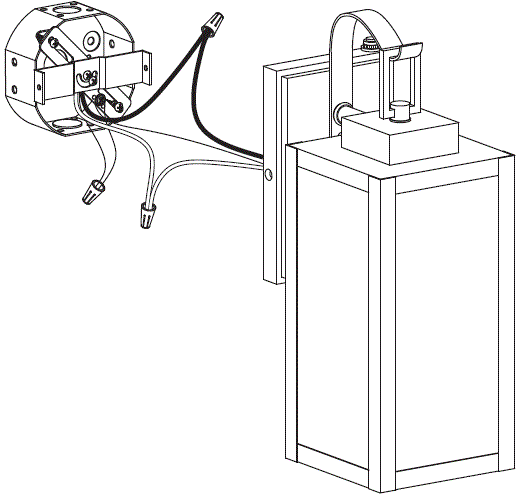

- Make the electrical connection from the junction box (not included) to the fixture. Connect the ground wire to the mounting unit using the preinstalled green ground screw.
- Then, connect the positive, negative and ground wires with the supplied wire nuts. Secure with electrical tape.
STEP 3

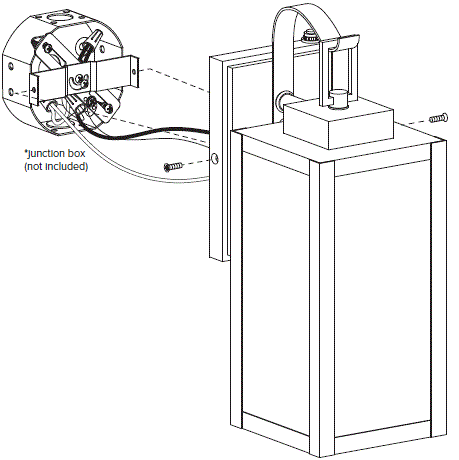

- Attach the fixture to the mounting unit through screw holes as shown, and secure it with screws.
NOTICE: Please use caulk in the back plate and wall mounting surface to prevent water from entering.
STEP 4

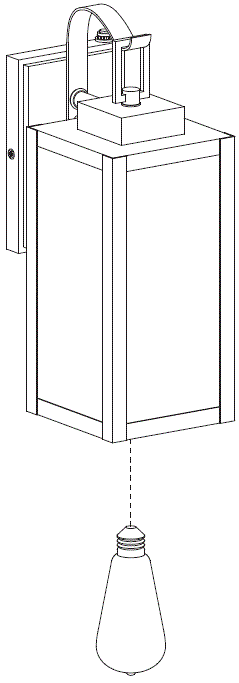

- Install bulb (not included)
If you need further assistance, please contact us by Email: [email protected]
