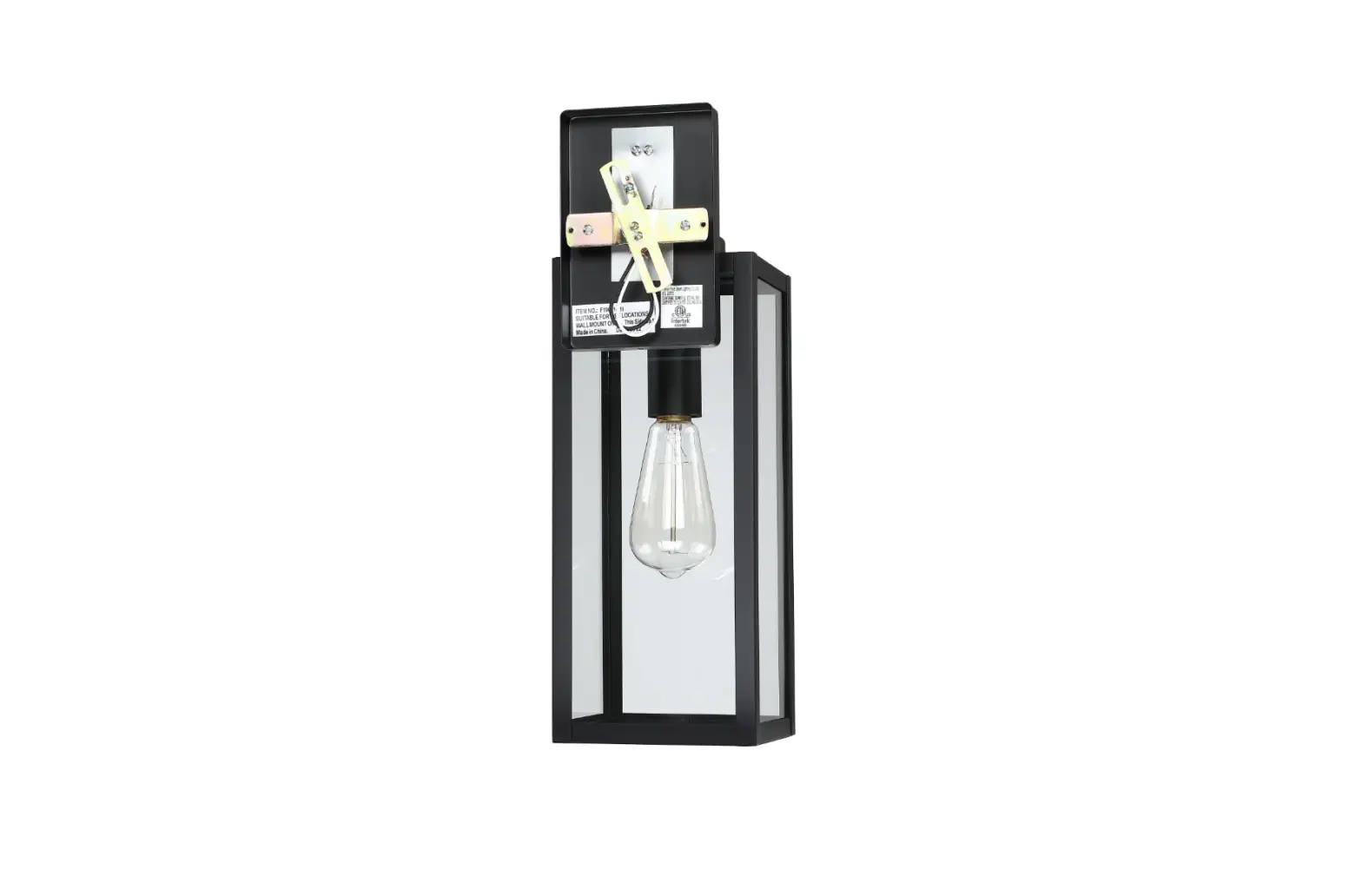

F17711-BK-S 1 Light 17.25 Inch H Matte Black Outdoor Wall Lantern
Product Information
The product is a light fixture that requires assembly and
installation. The package includes a mounting unit, fixture, ball
nuts, rubber rings, mounting screws, wire nuts, and exploded parts.
The product requires tools such as a ladder, safety glasses,
electrical screwdriver, Phillips screwdriver, flat blade
screwdriver, pliers, and wire strippers for assembly and
installation. The product requires a junction box (not included)
for installation.
Product Usage Instructions
- Unscrew the rubber rings and ball nuts from the mounting unit.
Use the mounting screws to attach the mounting unit to the junction
box (not included). - Make the electrical connection from the junction box (not
included) to the fixture. Connect the ground wire to the mounting
unit using the preinstalled green ground screw. Then, connect the
positive, negative, and ground wires with the supplied wire nuts.
Secure with electrical tape. - Attach the fixture to the mounting unit through screw holes as
shown, and secure it with rubber rings and ball nuts. Use caulk in
the back plate and wall mounting surface to prevent water from
entering. - Install a bulb (not included) in the fixture.
Note: If you need further assistance with assembly or
installation, please contact us by email at
[email protected]. Also, before starting the
installation process, it is recommended to remove the fuse at the
fuse box to ensure safety.
ASSEMBLY INSTRUCTIONS
CAUTION
³Inspect the wire insulation for any cuts, abrasions, or exposed copper that may have resulted during shipping. If there is a defect in the wire, do not attempt installation.
³Before starting installation of this fixture or removal of a previous fixture, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box.
@ If you need further assistance, please contact us by Email: [email protected] TOOLS REQUIRED
Ladder
Safety glasses
Electrical
Phillips
tape
screwdriver
Flat blade screwdriver
Pliers
Wire strippers
HARDWARE INCLUDED
Fixture
Mounting Unit
Ball Nuts
Rubber Rings Mounting Screws Wire Nuts
*PARTS SHOWN MAY DIFFER SLIGHTLY PER LIGHT FIXTURE
EXPLODED PARTS
Junction Box (not included)
Wire Nuts
Rubber ring Ball Nuts
INSTALLATION
STEP 1
Unscrew the rubber rings and ball nuts from the mounting unit. Use the mounting screws to attach the mounting unit to the junction box (not included).
Mounting Unit Mounting Screws
Fixture
Bulbs (not included)
STEP 2
Make the electrical connection from the junction box (not included) to the fixture. Connect the ground wire to the mounting unit using the preinstalled green ground screw. Then, connect the positive, negative and ground wires with the supplied wire nuts. Secure with electrical tape.
Black or Red wire (hot) from the junction box
White wire (neutral) from the junction box
Bare or Green ground wire from the junction box
*Sealing tape (not included)
Black wire from the fixture
White wire from the fixture
Ground wire from the Fixture
*Green Ground Screw
ASSEMBLY INSTRUCTIONS INSTALLATION
STEP 3
Attach the fixture to the mounting unit through screw holes as shown, and secure it with rubber rings and ball nuts.
NOTICE: Please use caulk in the back plate and wall mounting surface to prevent water from entering.
*Junction Box (not included)
STEP 4
Install bulb (not included)
