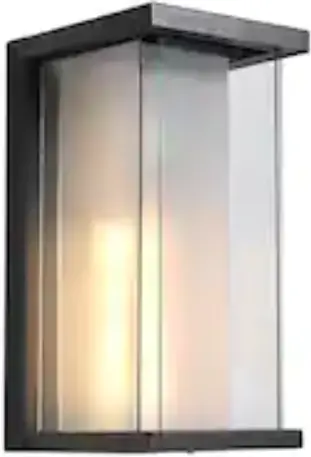

4MODERNHOME 2534-2W Outdoor Wall Lantern Sconces
Product Information
The product is a light fixture with the model number 2534-2W. It requires an A60 light bulb (not included) and comes with a square glass, Phillips flat head screws, a metal square cover, green ground screws, wire caps, and wire connection diagram. The product contains lead, which is a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. It is
recommended to get an electrician to install this light and to turn off the electricity at the main circuit breaker before beginning installation.
Product Usage Instructions
- Before beginning installation, turn off the power supply and make sure it remains off until installation is completed.
- Use the wire connection diagram to connect the electrical circuit with wires meeting safety standards.
- Handle all glass components and/or lamps with care as they are fragile.
- Attach the metal square cover to the ceiling using the provided Phillips flat head screws.
- Screw in the A60 light bulb (not included) into the light fixture.
- Carefully attach the square glass to the metal square cover using the provided Phillips flat head screw.
- Secure the light fixture to the ceiling by attaching the green ground screws and using wire caps to connect the wires.
- Turn on the power supply and test the light fixture to ensure proper installation.
Assembly & Installation Instructions
Dear Customer:
Thank you for your business!
If you have any questions or problems, please send us an email to [email protected] or call us at 870-949-8466. We will do everything possible to make you completely satisfied with your purchase. Product reviews help future customers to make their purchase decision. You are encouraged to share your experience by leaving a short product review on the platform where you bought this product.
Thank you!
Zgear Team
Warning: If any special control devices are used with this fixture, follow the instructions carefully to assure full compliance with N.E.C.requirements. If there are any questions, contact a qualified electric contractor.
- California Residents Proposition 65 This product contains lead, a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. Do not place the product in your mouth. Wash your hands after handling this product.
Caution: It is highly recommended to get an electrician to install this light. Please make sure to turn the electricity off at the main circuit breaker before beginning installation. All glass is fragile. Use care when handling glass component(s)and/or lamp(s).

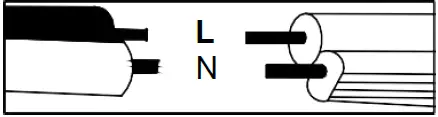

WIRE CONNECTION DIAGRAM
Wires meeting safety standards are required to connect the electrical circuit.
CAUTION: Risk of fire
Please read all instructions carefully. Before you proceed to install, make sure that the power supply is turned off and remains off until installation is completed.

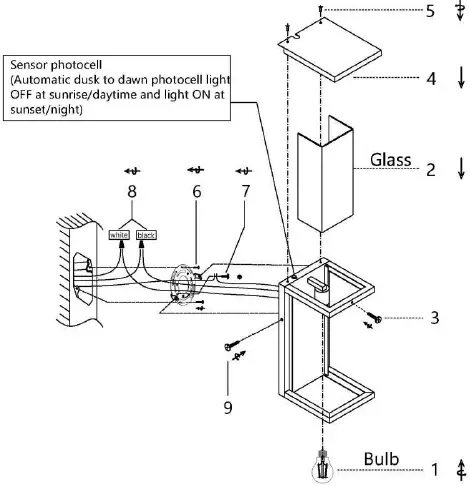

PARTS INCLUDED
| Code | Part Description | QTY |
| 1 | A60 light bulb(Not included) | 1 |
| 2 | Square glass | 1 |
| 3 | Phillips flat head screw | 1 |
| 4 | Metal square cover | 1 |
| 5 | Phillips flat head screw | 2 |
| 6 | Phillips flat head screw | 2 |
| 7 | Green ground screw | 2 |
| 8 | Wire caps | 2 |
| 9 | Phillips flat head screw | 2 |
