2.4G Rainbow Remote (RGB+CCT)
Model No.: S2-B / S2-W / S2-G

Product Features

This product adopt world-wide used 2.4GHz frequency, GFSK control method, with features of low power consumption, long-distance transmitting, strong anti-interference, and fast communication rate. It can control color, color temperature, saturation, and brightness of Mi-Light / MiBoxer 2.4G smart light.

Product Parameters

Model No.: S2-B / S2-W / S2-G
Working Voltage: 3V(AAA battery*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Control Distance: 30m

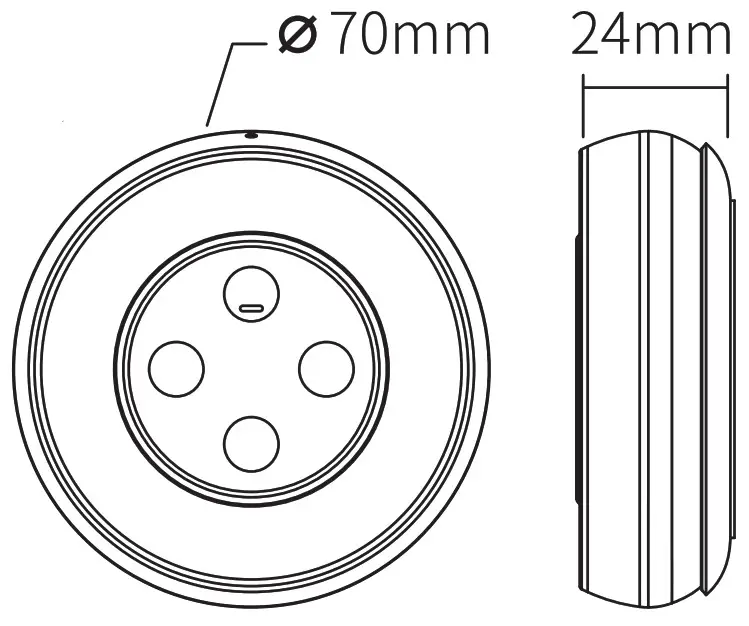

MiBOXER S2-B 2.4G Rainbow Remote RGB+CCT - Product Parameters

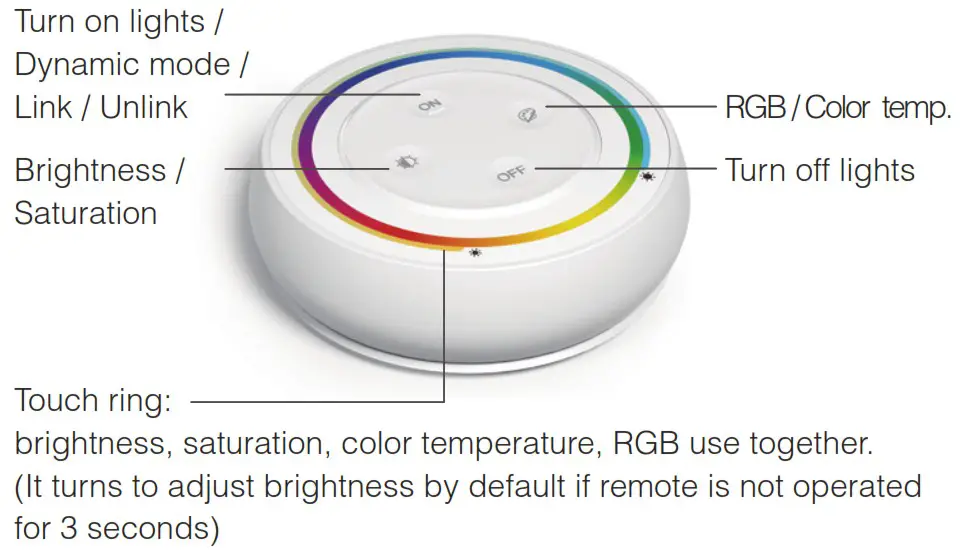

Button Diagram

MiBOXER S2-B 2.4G Rainbow Remote RGB+CCT - Button Diagram

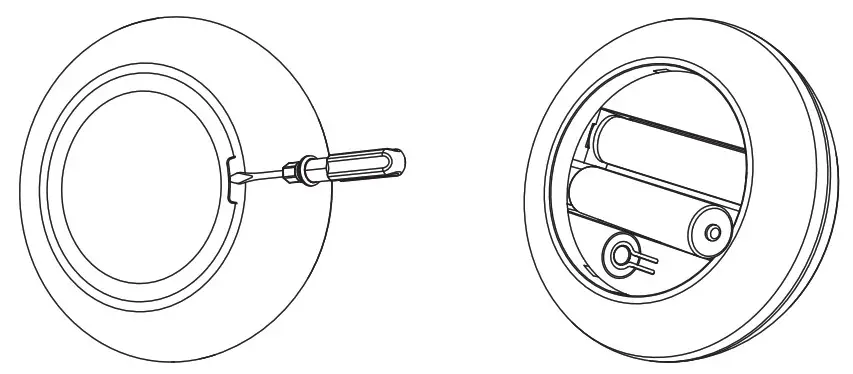

Install Battery

Note: 2*AAA Battery need to buy seperately

MiBOXER S2-B 2.4G Rainbow Remote RGB+CCT - Install Battery

  1. Open battery cover behind remote.
  2. Install battery correctly and close battery cover.

Function Description

  • Adjust RGB
    Short press key twice in succession, and then touch  to adjust RGB.
  • Adjust saturation
    Press key twice in succession, and then touch to adjust color saturation of lighting. (Note: only in RGB mode)
  • Adjust color temperature
    Short press key once, then touch to adjust color temp.
  • Adjust brightness
    Short press key once, then touch to adjust brightness.
  • Dynamic mode switching
    Long press key until indicator light flashes twice, then short press key to cycle switch.
    (Note: it will exit automatically if no operation after 3 seconds)

Linking Code  Unlinking Code Instructions

You can control lights after linking remote with light.

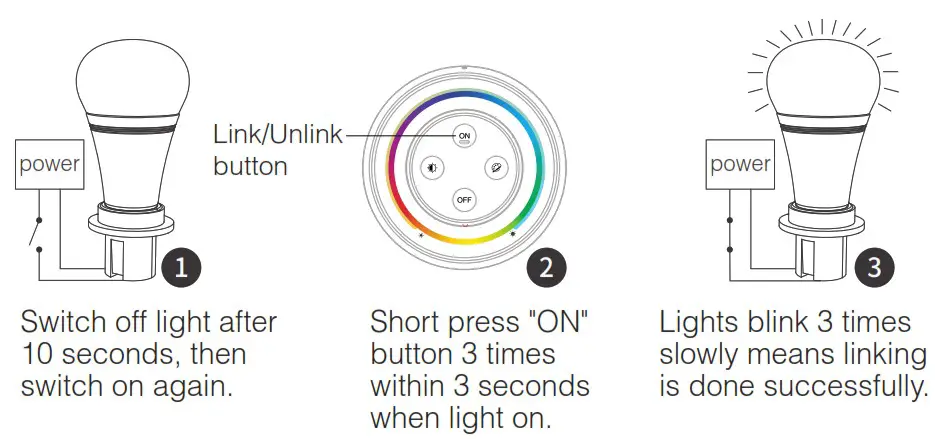

Linking Code Instructions

MiBOXER S2-B 2.4G Rainbow Remote RGB+CCT - Linking Code Instructions

Linking failed if light is not blinking slowly, Please follow above steps again. (Note: lights that have linked can’t link again)

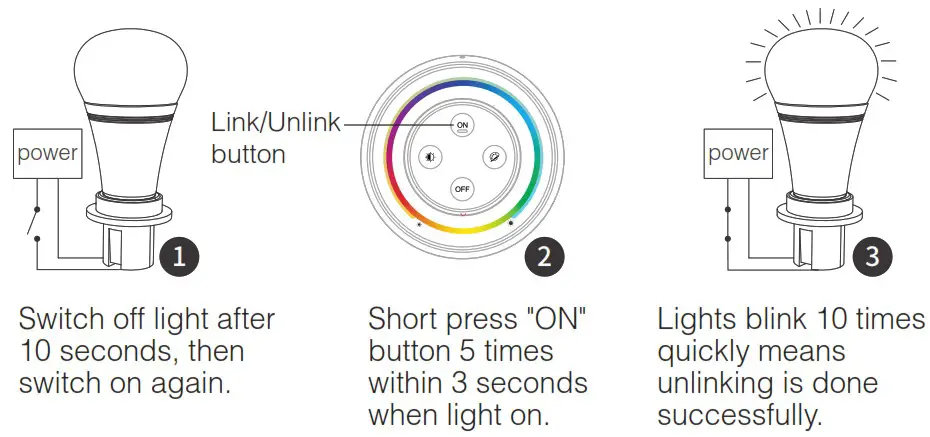

Unlinking Code Instructions

MiBOXER S2-B 2.4G Rainbow Remote RGB+CCT - Unlinking Code Instructions

Unlinking failed if light is not blinking quickly, Please follow above steps again. (Note: lights haven’t linked that don’t need to unlink)

Attention

  1. If indicator light flashes quickly when using, please replace battery in time. Do not use poor quality battery in case of leaving out liquid to damage remote.
  2. Do not use remote in a large-scale metal area or an area with strong electromagnetic waves nearby, otherwise will affect communication distance seriously .

MiBOXER S2-B 2.4G Rainbow Remote RGB+CCT - disposal

Made in China

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
