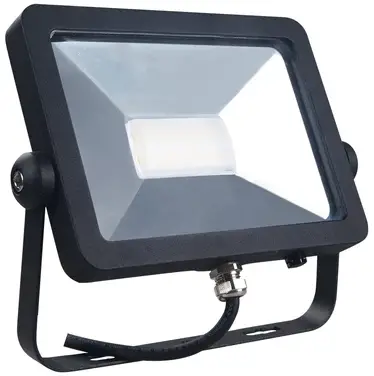

The EX360 1BBL LED Spot is a lighting fixture with the following specifications:

To use the EX360 1BBL LED Spot, follow these steps:

Wire the lighting fixture in parallel with a Constant Voltage Driver that is double the luminaire circuit wattage.
Use multistrand UV-protected flex for all exterior 24V DC CV circuits.
Ensure all cable joints are a resin or IP68 type.
Note that standard crimps, terminal, and cable gauges must be taken into account to prevent voltage drop over a circuit’s total luminaire wattage.

Color Temperature: 2700k
Input Voltage: 24V DC Constant Voltage (wire in parallel)
Ingress Protection Rating: IP65
To prevent voltage drop over a circuit total luminaire wattage plus voltage drop over the length of a cable run and cable gauge must be taken into account.
Always try to use a Constant Voltage Driver to double the luminaire circuit wattage.
Multistrand UV-protected flex should be utilized for all exterior 24V DC CV circuits.
All cable joints must be a resin or IP68 type –
NOTE: standard crimps, terminal blocks, and PVC tape are not suitable cable joining methods.
Applicable environment temperature: -20°C …. +40°C
All installation work must be carried out by a registered electrician.

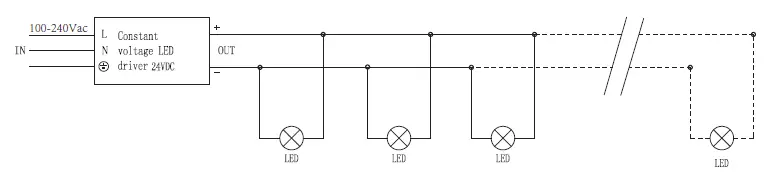

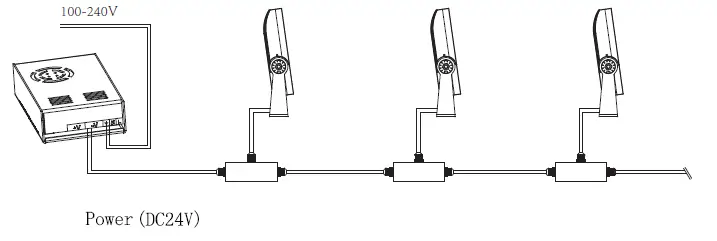

Example of wiring

24VDC:circuit

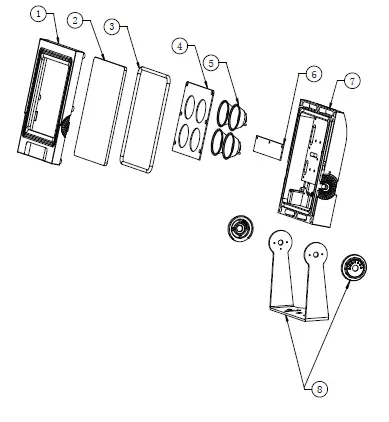

Material specifications

Housing: 12 Die-casting powder-coated aluminum.T=60-80um. Adhesion of ISO class 1/ASTM class 4B.
Bracket: Powder-coated aluminum
Gasket: Tooling-shaped seal
Reflector: Optical reflector efficiency≥90%
Glass: Tempered glass.T=4mm
LED: COB LED 5W
Cable gland: IP-68 PG-9 PVC
Power cable: H05RN-F 2×1.0mm L=2m

Electrical parameters

Item No.	Light source	Degree(°)	Input voltage(v)	Typical operating current(mA)	Typical Consumption(w)	Typical luminance(lm)	IK rate
EX360 1BBL	4×5W BRIDGELUX COB	25	24	1279	30.7	Cool white=1943 Warm white=1757	09
