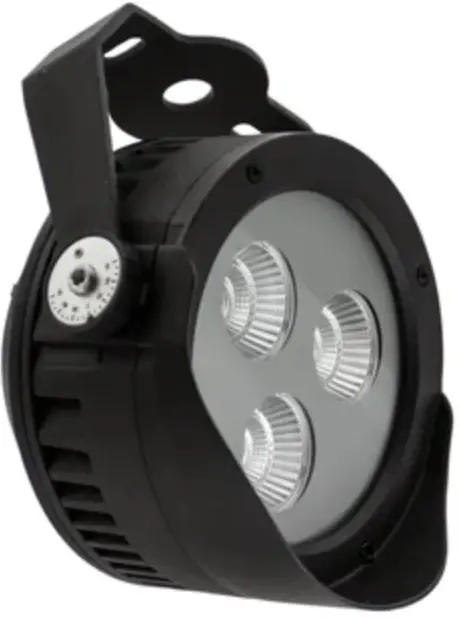

HALCYON EX370 1SWBL LED Spot Light User Manual

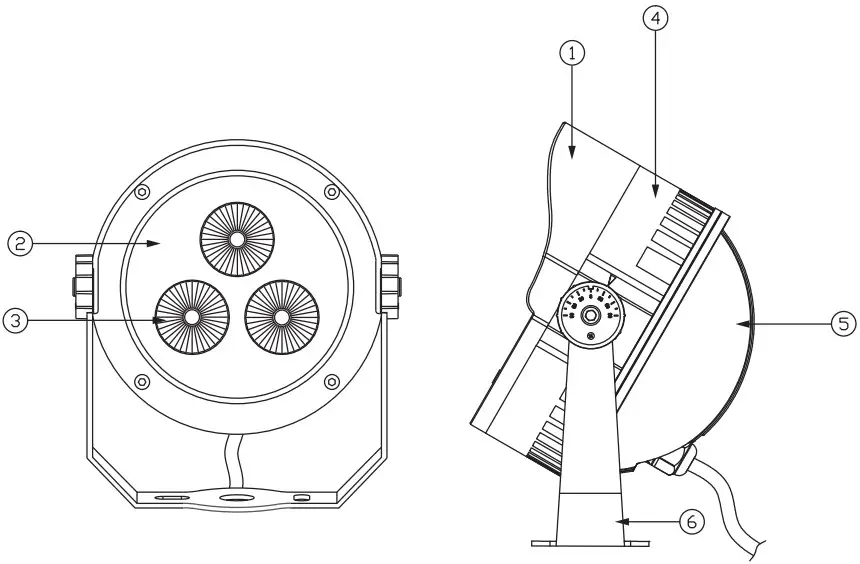

- Front cover
- Temperd glass
- Reflector
- Housing
- Back cover
- Bracket
- Colour Temperature: 2700k
- Input Voltage: 24V DC Constant Voltage (wire in parallel)
- Ingress Protection Rating: IP65
- To prevent voltage drop over a circuit total luminaire wattage plus voltage drop over the length of a cable run and cable gauge must be taken into account.
- Always try to use a Constant Voltage Driver double the luminaire circuit wattage.
- Multistrand UV protected flex should be utilised for all exterior 24V DC CV circuits.
- All cable joints must be a resin or IP68 type – NOTE: standard crimps, terminal blocks and PVC tape are not suitable cable joining methods.
- Applicable environment temperature: -20°C …. +40°C
- All installation work must be carried out by a registered electrician.

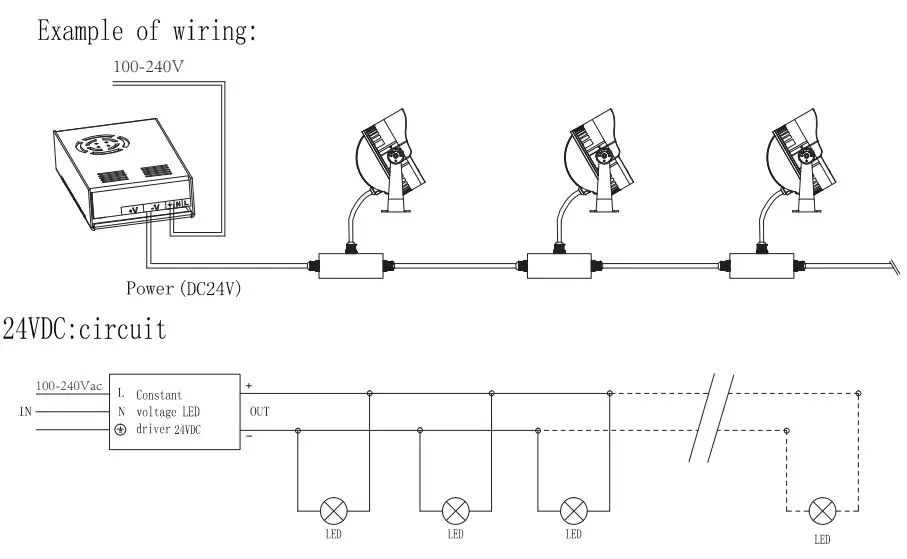

WIRING DIAGRAM

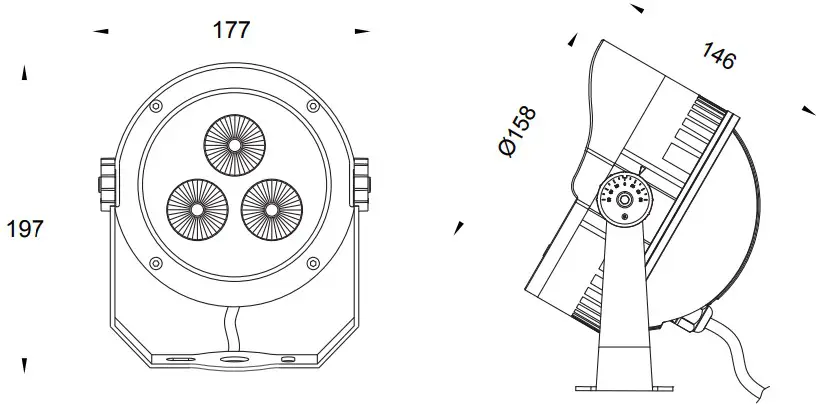

SPECIFICATIONS
Material Specifications
Housing: 12* Die-casting dark grey powder coated aluminum.
Bracket: T=60 -80um.Adhesion of ISO class 1/ATM class AB
Glass: Powder coated aluminum
LED: Tempered glass.T =Amm
Gasket: COB LED 5W
Power cable: Tooling shaped seal HO5RN-F2)<1.0mm2L=2m(low voltage)
Cable gland: IP-68 PG-9 PVC
Electrical parameters
| Item NO | Light source | Reflector | The manufacturer selected lens degree(°) | Input voltage(v) | Typical oprating current(mA) | Typical consumption(W) | Typical luminance(lm) | IK rate |
| EX370 1SWBL | 3×5W COB LED | R5 | 40 | 24VDC | 82 | 18.5 | 1516 | 08 |
