EX330 USTSL
LED INGROUND

Contents hide

BOM

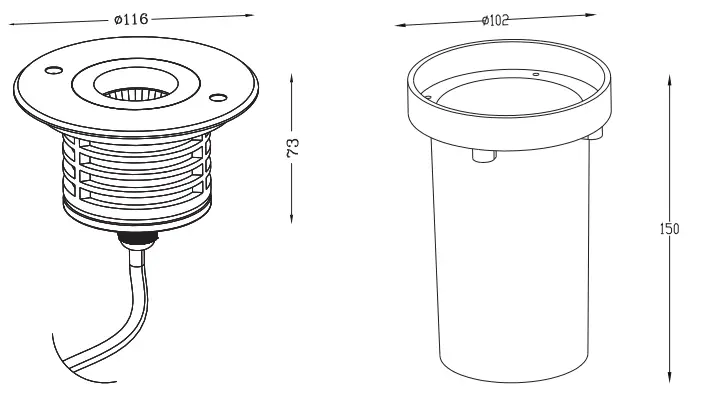

Unit: mm

Colour Temperature: 2700k
Input Voltage: 24V DC Constant Voltage (wire in parallel)
Ingress Protection Rating: IP67

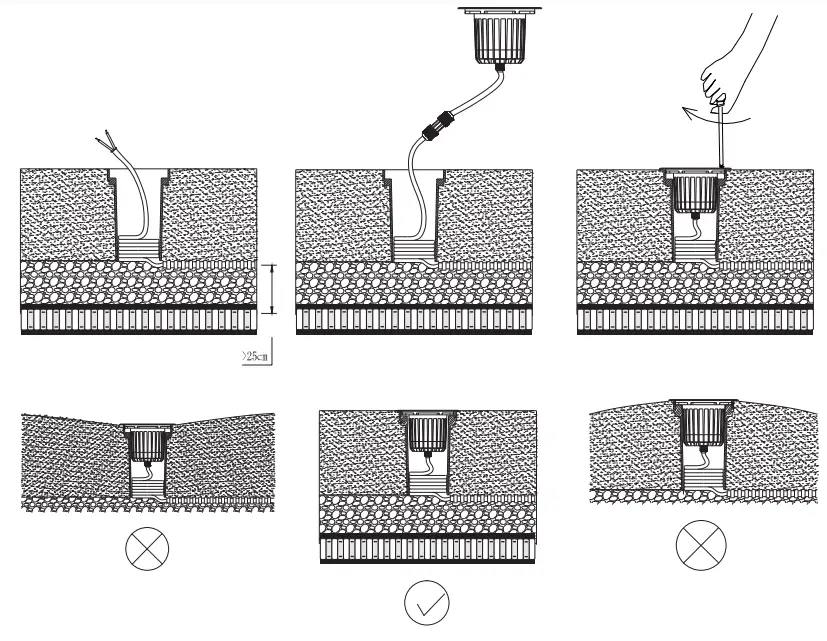

The mounting sleeve and luminaire must be installed over a drained substrate e.g. Scoria so that the LED luminaire is never immersed in water for extended periods (See diagrams pg2)
To prevent voltage drop over a circuit total luminaire wattage plus voltage drop over the length of a cable run and cable gauge must be taken into account.
Always try to use a Constant Voltage Driver which is double the total circuit wattage.
Multistrand UV protected flex should be utilised for all exterior 24V DC CV circuits.
All cable joints must be a resin or IP68 type – NOTE: standard crimps, terminal blocks and PVC tape are not suitable cable joining methods.
Luminaire front faces are all electropolished 316 grade Stainless Steel.
Applicable environment temperature: -20°C …. +40°C
All installation work must be carried out by a registered electrician.

EX330 USTSL
MUST BE INSTALLED OVER A DRAINED SUBSTRATE

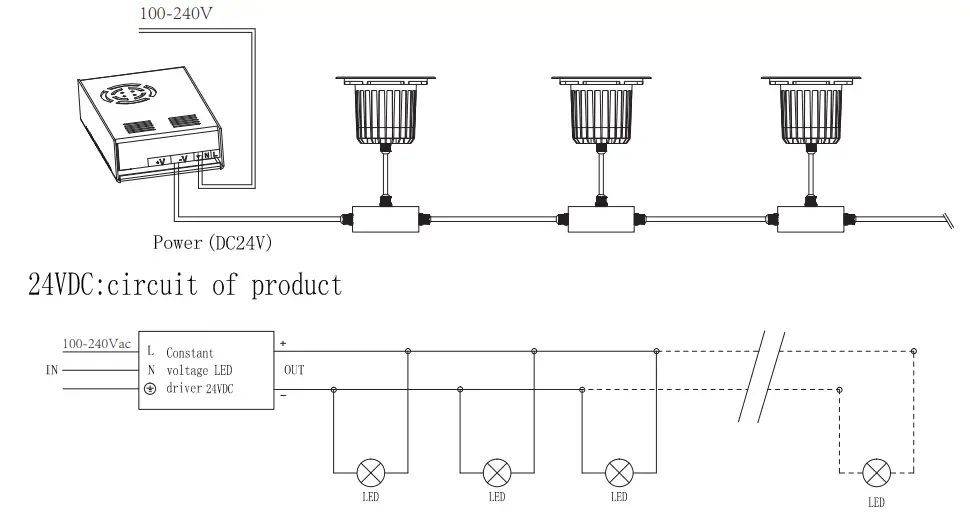

Example of wiring

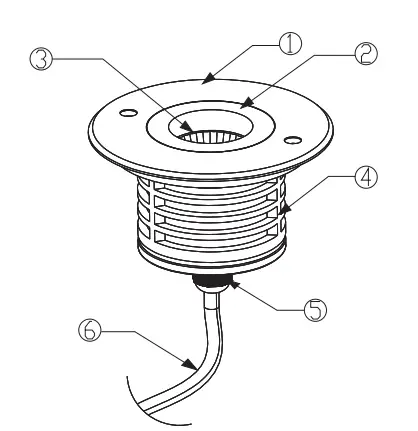

Material specifications:

Housing:	12# die-casting grey powder coated aluminum, T=60-80um. adhesion of ISO class lASTM class
Front cover:	Stainless steel 316L#
Glass :	Tempered glass. (T=8mm)
Reflector:	Optical lens, efficiency>= 90%
Power cable :	HO5RN-F2 X 1. 0 mm²L=0. 5M (low voltage/Single color)
Mounting sleeve:	015 PVC
Cable gland:	1P68 PG-9 PVC
;lass pressure capacity:	Full area=2578kgs.
Driver:	Constant current output
LED:	Multi chip on board LED

Electrical parameters:

Item No.	Light source	Reflector,	Degree(° )	Input voltage(1)	Typical °prating current(mA)	Typical Comsumption(w)	Typical luminance(1m)	IK rate
EX330 USTSL	1 x 6W COB LED	R5	40	24VDC	270	7.	Cool white=626 Warm white=458	9
