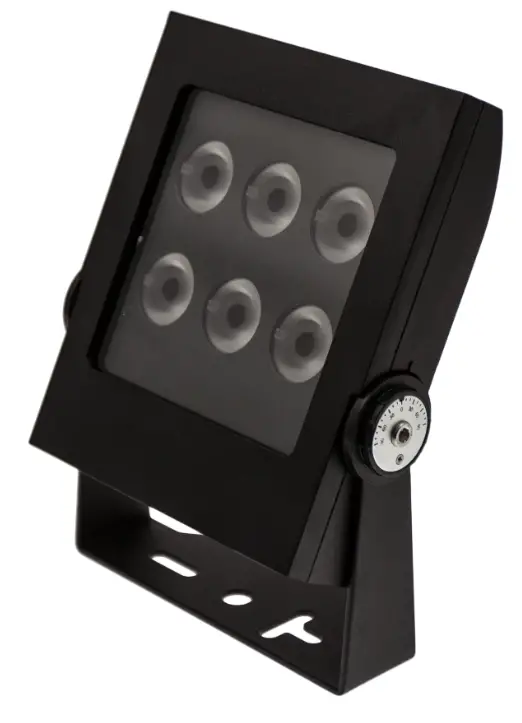

HALCYON EX361 RGBW LED Spot

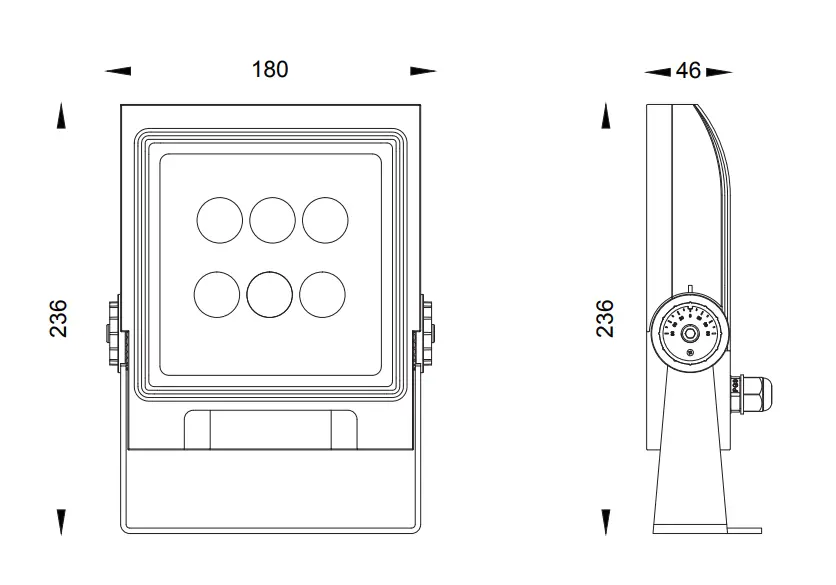

OVERVIEW
① Front cover
② Tempered glass
③ Optical lens
④ Housing
⑤ Cable gland
⑥ Bracket
- Colour Temperature: 2700k + RGB
- Input Voltage: 24V DC Constant Voltage (wire in parallel)
- Ingress Protection Rating: IP65
- To prevent voltage drop over a circuit total luminaire wattage plus voltage drop over the length of a cable run and cable gauge must be taken into account.
- Always try to use a Constant Voltage Driver double the luminaire circuit wattage.
- Multistrand UV protected flex should be utilised for all exterior 24V DC CV circuits.
- All cable joints must be a resin or IP68 type – NOTE: standard crimps, terminal blocks and PVC tape are not suitable cable joining methods.
- Applicable environment temperature: -20°C …. +40°C
- All installation work must be carried out by a registered electrician.
WIRING DIAGRAM

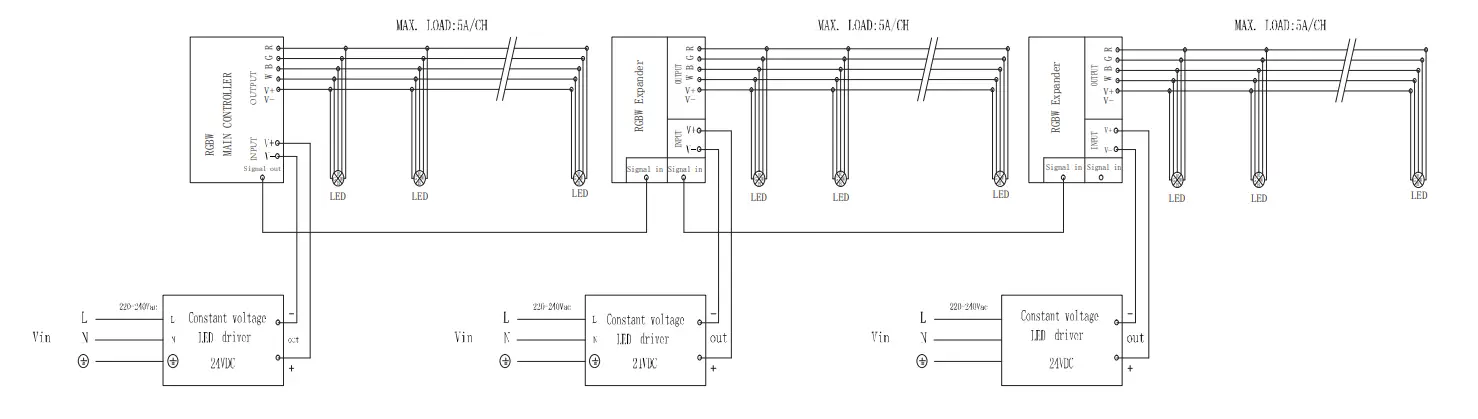

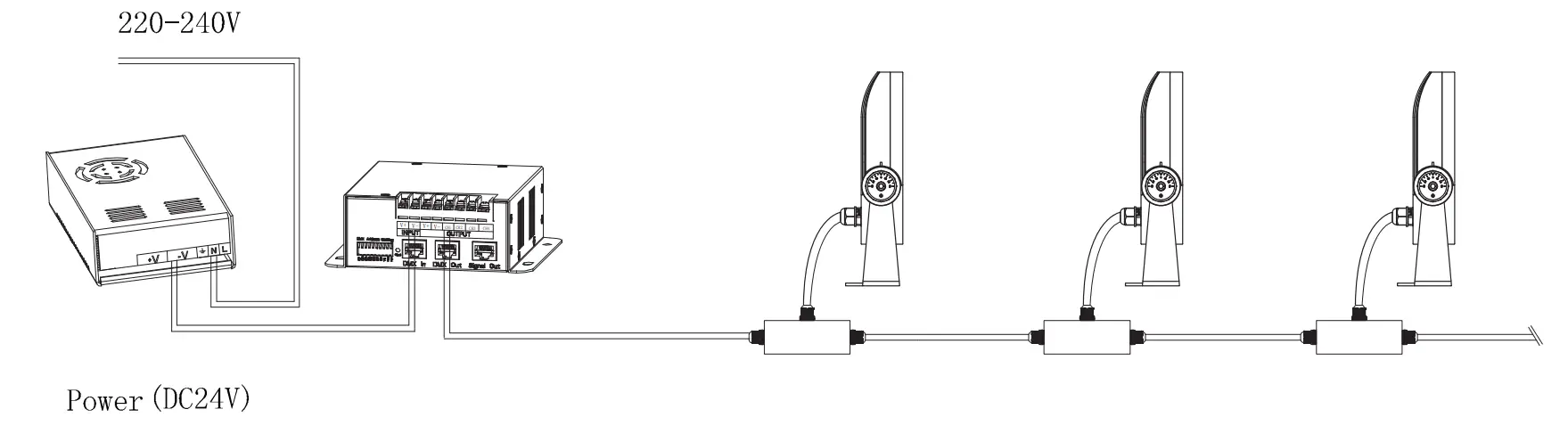

24VDC RGBW fitting:
RGBW: circuit
SPECIFICATIONS
Material specifications:
| Housing: | 12# Die- casting grey powder coated aluminum, T=60- 80um.Adhesion of ISO class 1/ASTM class 4B |
| Bracket: | Powder coated aluminum |
| Glass: | Step tempered glost==4mm |
| Lens: | All- in- one optical lens,efficiency?85% |
| Gasket: | Tooling shaped seal |
| Cable gland: | IP68 PG-9 PVC |
| Power cable : | H05RN- F5 X 0. 5 mm2 L=2M |
Electrical parameters:
| Item No. | Light source | Lens | Degree(0) | Input voltage(V) | Typical operating current(mA) | Typical Consumption(w) | Typical luminance(elm) | IK rate |
| EX361 labral | 6X4vV RGBW 4in 1 | A23 | 30 | 24VDC | R=299 G=352 B=350 vV=349 | 32 | 1000 | 09 |
