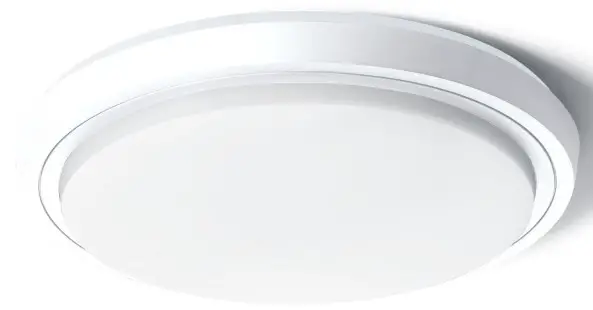

HALCYON LED290 15Watt LED Dimmable IP54 Button Instruction Manual

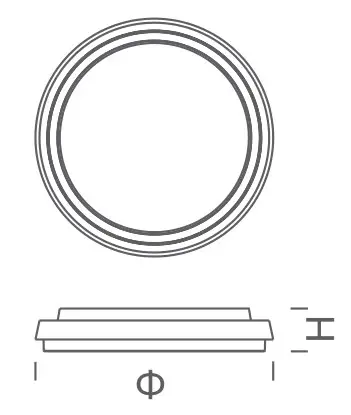

| Model | Voltage | Current | PF | Wattage | Lumens | WIG (mm) | H (mm) | ta( C ), |
| LED290 W34A | 220-240V— | 0.065N0.045A | 0.95 | 15W/10W | 15W 1650Im (Warm White)** 15W 1650Im (Natural White) 10W 1100Im (Warm White) 10W 1100Im (Natural White) **Default Setting | 200 | 43 | 40 |
| LED291 W34A | 220-240V— | 0.125A/0.08A | 0.95 | 28W/18W | 28W 3080Im (Warm White)**28W18W 19801m (Natural White)19801m (Warm White) 18W 1980Im (Natural White) **Default Setting | 300 | 43 | 40 |

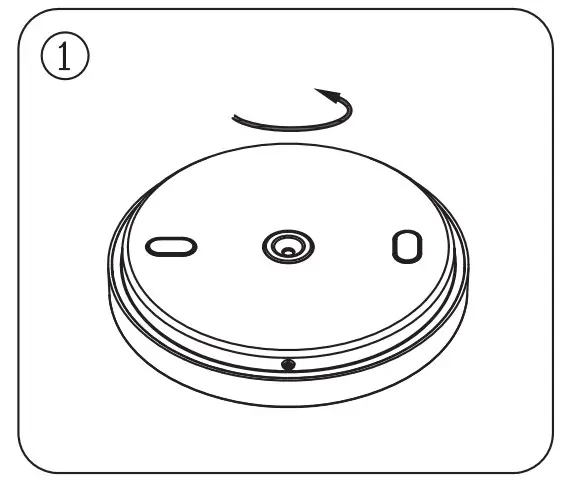

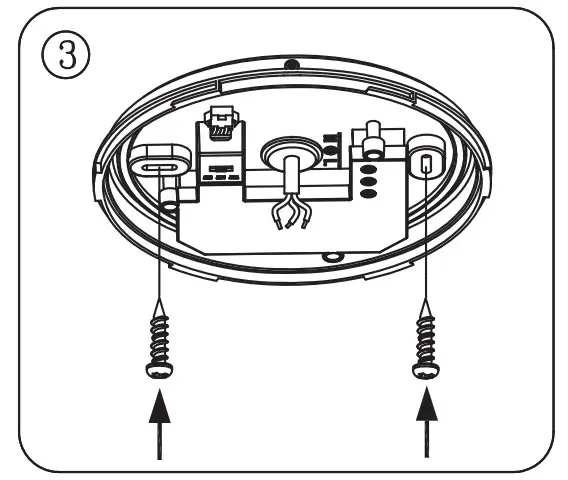

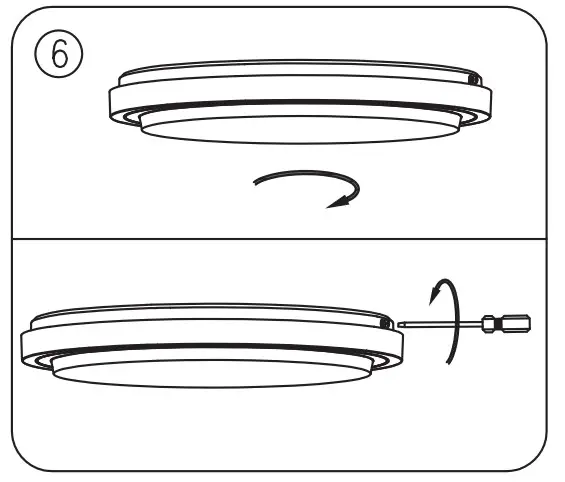

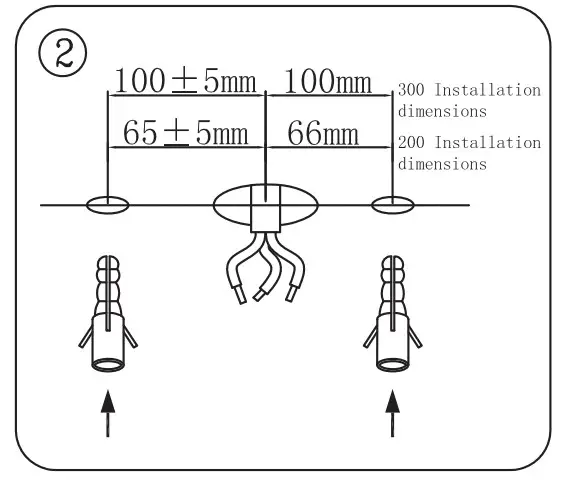

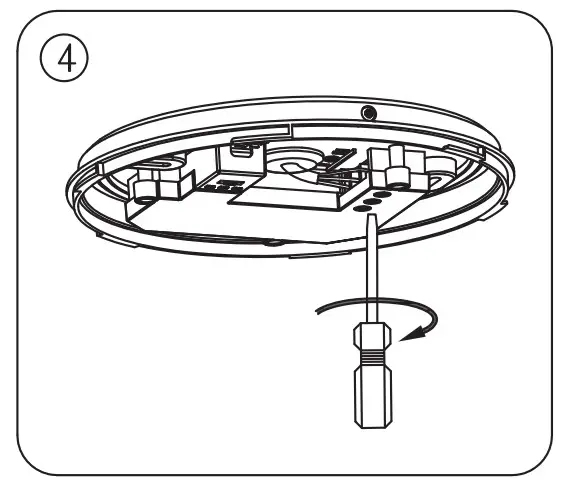

Installation Instruction

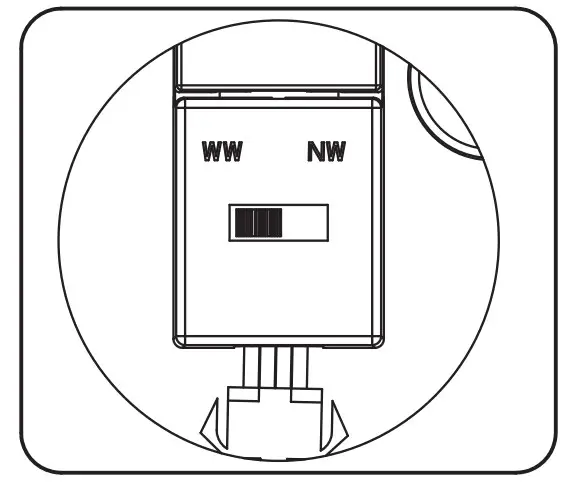

The default setting is warm white.
- Always follow this instruction to ensure correct and safe installation and functioning of the luminaire and keep it for future reference.
- Always isolate the power before commencing installation.
- This luminaire is double insulated and does not require an Earth.
