LED315 260mm Slice Square Dimmable Select 3K-4K Triple Wattage
Instruction Manual
LED315 260mm Slice Square Dimmable Select 3K-4K Triple Wattage

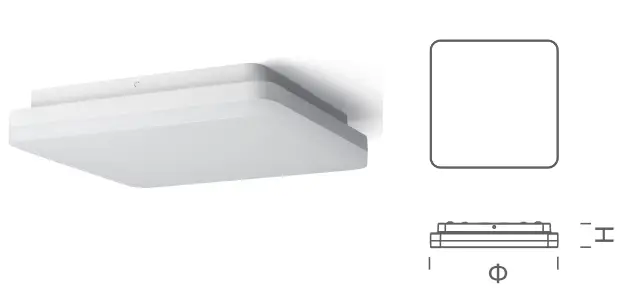

| Model | Voltage | Current | PF | Wattage | Luminous Flux | W/0 (mm) | H (mm) | ta( C ) |
| LED315 W34A | 220-240V— | 0.11A/0.085A/0.05A | 0.95 | 24W/18W/10W | ite) 2400/1800/1000LM(Warm Wh 2400/1800/1000LM(Neutral White) | 260 | 52 | 40 |
Colour Temperature: Warm White: 3000K Neutral White: 4000K | ||||||||

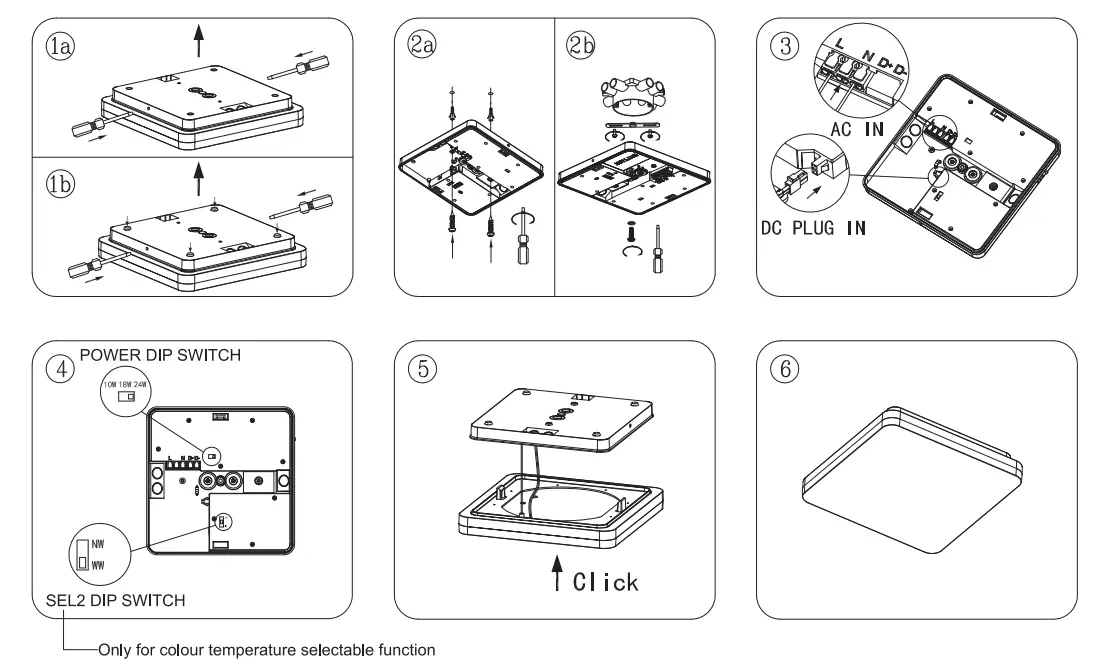

Installation instruction
- Always follow this instruction to ensure correct and safe installation and functioning of the luminaire and keep it for future reference.
- Always isolate the power before commencing installation.
- This luminaire is double insulated and does not require an Earth.
