Model | Voltage | Wattage | Luminous Flux | W/0 (mm) | H (mm) |
| Slice 90 Pendant | 220-240V~ | 29W | 2200LM(Warm White) 2300LM(Neutral White) 2300LM(Cool White) | 900 | 130/55 |
Slice 120 Pendant | 220-240V~ | 29W | 2200LM(Warm White) 2300LM(Neutral White) 2300LM(Cool White) | 1200 | 130/55 |
| Slice 120 Pendant | 220-240V~ | 38W | 2800LM(Warm White) 3000LM(Neutral White) 3000LM(Cool White) | 1200 | 130/55 |
| Suitable for following version; Warm White:2700K-3200K Neutral White:3800K-4200K Cool White:6000K-6600K | |||||
Installation instruction
A 680 (0.9m)/800 (1.2m)
- switch

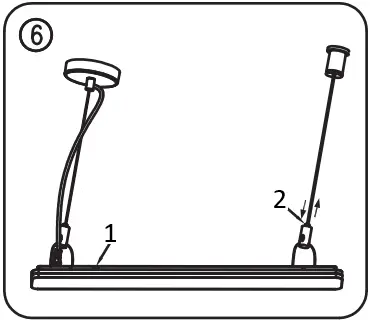

- Adjust the height
- Always follow this instruction to ensure correct and safe installation and functioning of the luminaire and keep it for future reference.
Always isolate the power before commencing installation.
- If in doubt, consult a qualified electrician. Ensure that you always install the luminaire to the relevant regulations.
Installation note: Do not install on the same circuits as Metal halide, Fluorescent and other “Low power factor” devices.
When installed on the same circuit it can cause flickering and/or premature failure of the “high power factor” electronic drivers. The harmonic distortion from low power factor devices alters the Waveform of the AC supply which can cause componentry in high power factor electronic drivers to resonate, run over temperature and fail after prolonged exposure.”
