LED335 W34A Slice 900mm LED Ceiling Batten
Instruction Manual

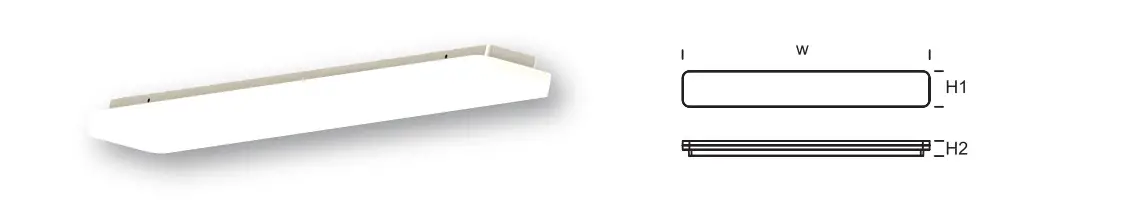

| Model | Voltage | Current | PF | Wattage | Luminous Flux | W/0 (mm) | H (mm) | ta( C ) |
| LED335 W34A | 220-240V— | 0.14A/0.105A | 0.95 | 32W/24W | 3200/2400LM(Warm White) 3200/2400LM(Neutral White) | 900 | 130/55 | 40 |
| Colour Temperature: Warm White: 3000K Neutral White: 4000K | ||||||||

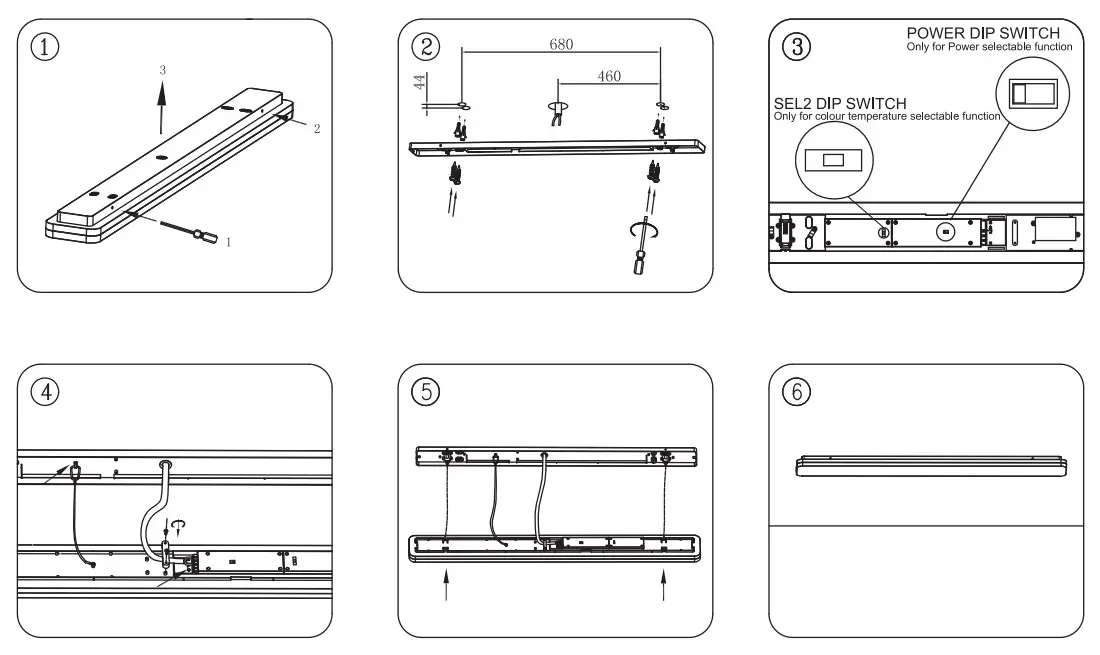

Installation Instruction

- Always follow this instruction to ensure correct and safe installation and functioning of the luminaire and keep it for future reference.
- Always isolate the power before commencing installation.
- This luminaire is double insulated and does not require an Earth.
Installation note: Do not install on the same circuits as Metal halide, Fluorescent and other “Low power factor devices.
When installed on the same circuit it can cause flickering and/or premature failure of the “high power factor electronic drivers. The harmonic distortion from low power factor devices alters the Waveform of the AC supply which can cause componentry in high power factor electronic drivers to resonate, run over temperature and fail after prolonged exposure.
